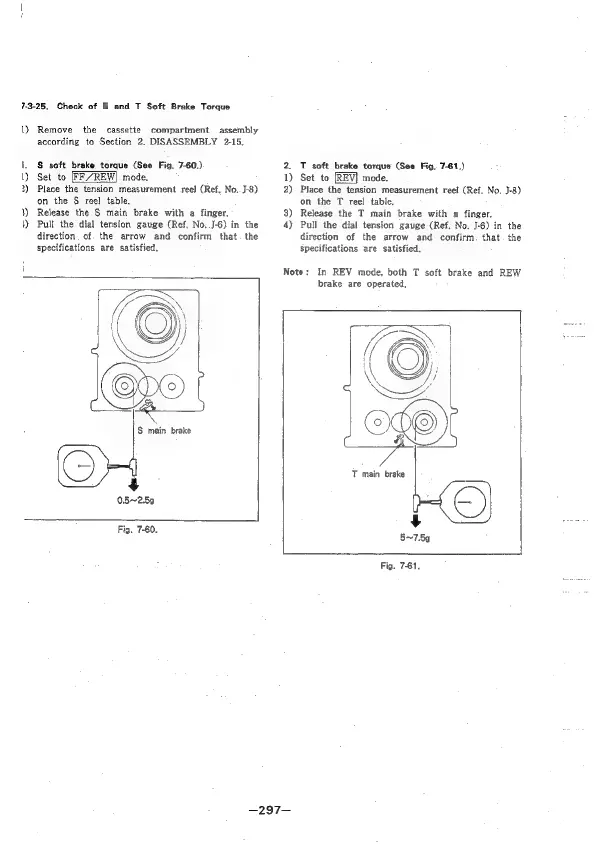

7-83-25. Check of $ and T Soft Brake Torque
1)
)
Remove the cassette compartment assembly
according to Section 2, DISASSEMBLY 2-15,
S soft brake torque (See Fig. 7-60.)
Set to [FF/REW] mode,
Place the tension measurement reel (Ref. No..J-8)
on the § reel table.
Release the S main brake with a finger,
Pull the dial tension gauge (Ref, No, J-6) in the
direction. of. the arrow and confirm that. the
specifications are satisfied.
05~2.59
Fig. 7-60.
2.
1)
2)
3)
4)
Note :
T soft brake torque (See Fig. 7-61.)
Set to [REV] mode.
Place the tension measurement reel (Ref. No. J-8)
on the T ree! table.
Release the T main brake with a finger.
Pull the dial tension gauge (Ref. No. J-6) in the
direction of the arrow and confirm. that. the
specifications are satisfied,
In REV mode, both T soft brake and REW
brake are operated,
T main brake
5~7.59
—297—
Fig. 7-61.
