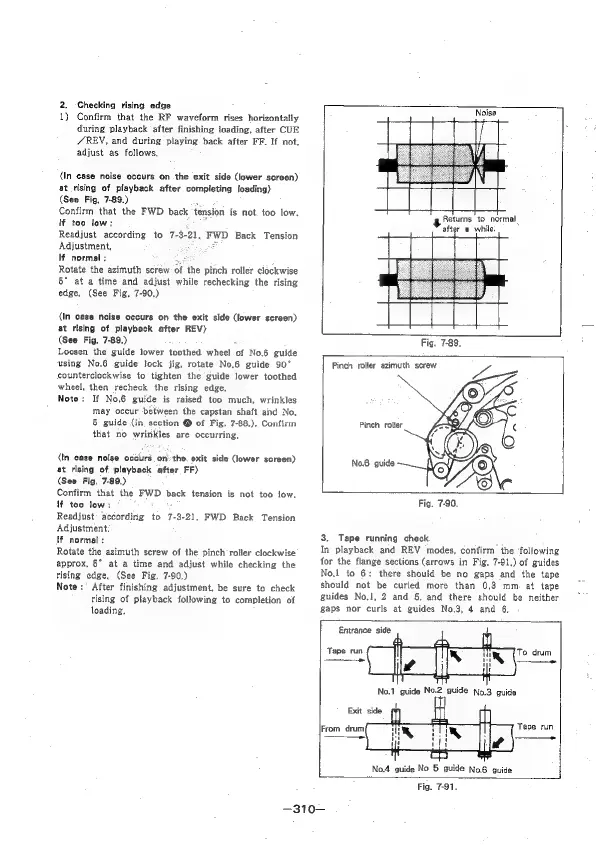

Checking
rising
edge
1)
Confirm
that
the
RF
waveform
rises
horizontally
during
playback
after
finishing
loading,
after
CUE
/REV,
and
during
playing
back
after
FF.
If
not,
adjust
as
follows.
(In
case
noise
occurs
on
the
exit
side
(lower
screen)
at
rising
of
playback
after
completing
loading)
(See
Fig.
7-89.)
Confirm
that
the
FWD
back
tension
is
not.
too
low.
If
too
low:
_
Readjust
according
to
7-3-21.
FWD
Back
Tension
Adjustment,
3
oe
If
normal
;
5
he
Rotate
the
azimuth
screw
of
the
pinch
roller
clockwise
at
a
time
and
adjust
while
rechecking
the
rising
edge,
(See
Fig,
7-90.)
(In
case
noise
occurs
on
the
exit side
(lower
screen)
at
rising
of
playback
after
REV)
(See
Fig,
7-89.)
Loosen
the
guide
lower
toothed
wheel
of
No.6
guide
using
No.6
guide
lock
jig,
rotate
No.6
guide
90°
counterclockwise
to
tighten
the
guide
lower
toothed
wheel,
then
recheck
the
rising
edge.
Note:
If
No.6
guide
is
raised
too
much,
wrinkles
may
occur
between
the
capstan
shaft
and
No.
5
guide
(in
section
@
of
Fig.
7-88.).
Confirm
that
no
wrinkles
are
occurring,
(In
case
noise
occurs
on:
the.
exit
side
(lower
screen)
at
rising
of
playback
after
FF)
(See
Fig,
7-89.)
Confirm
that
the
FWD
back
tension
is
not
too
low.
{f
too
low:
Readjust’
according
to
7-3-21,
FWD
Back
Tension
Adjustment:
If
normal
:
Rotate
the
azimuth
screw
of
the
pinch
roller
clockwise
approx,
§"
at
a
time
and
adjust
while
checking
the
rising
edge,
(See
Fig.
7-90.)
Note:
After
finishing
adjustment,
be
sure
to
check
rising
of
playback
following
to
completion
of
loading.
gp
Returns
to
normal
after
a
while,
Fig.
7-89,
Pinch
roller
azimuth
screw
Ze
Pinch
roller
No.6
guide
Fig.
7-90,
3.
Tape
running
check
In
playback
and
REV
modes,
confirm
the
following
for
the
flange
sections
(arrows
in
Fig.
7-91.)
of
guides
No.l
to
6:
there
should
be
no
gaps
and
the
tape
should
not
be
curled
more
than
0.3
mm.
at
tape
guides
No.1,
2
and.
5,
and
there
should
be
neither
gaps
nor
curls
at
guides
No.3,
4
and
6.
Entrance
side
Tape
run
a
No
guide
No
5
guide
No.6
guide
Fig.
7-91.
