1)
2)
3)
4)

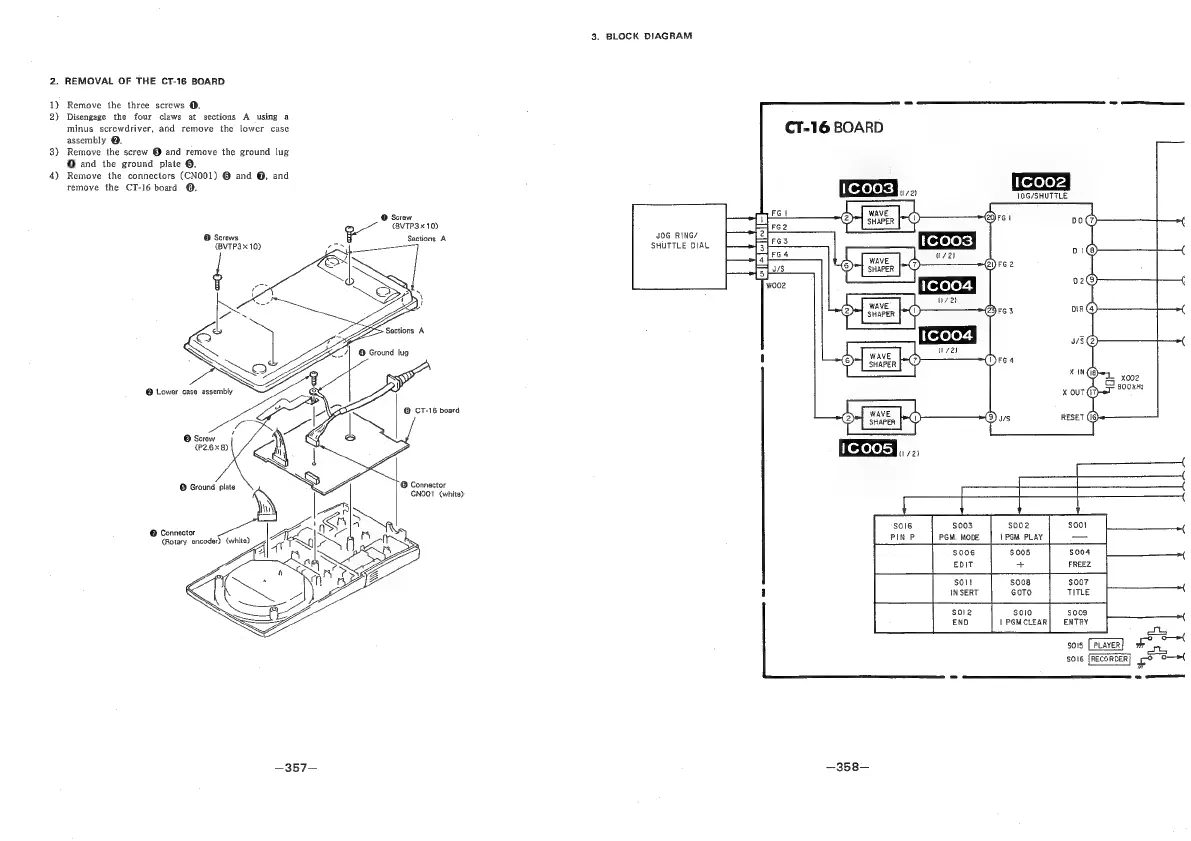

REMOVAL OF THE CT-16 BOARD
Remove the three screws @.
Disengage the four claws at sections A using a
minus screwdriver, and remove the lower case
assembly @.
Remove the screw ® and remove the ground lug
@ and the ground plate @.
Remove the connectors (CN001) @ and @, and
remove the CT-16 board @.
@ Screws
(BVTP3 x 10)
© Ground plate
© Connector
(Rotary encoder) (white)
—357—
© Screw
(BVTP3x 10)
Sections A
© Connector
CNOO1 (white)
. BLOCK DIAGRAM
1OG/SHUTTLE
JOG RING/
SHUTTLE DIAL
xo02
& cook:
X ouT (1)
RESET (16)
WAVE
SEan
$009
ENTRY
—_ any
sois [PLAYER ra
soie [RECORDER] Fo o>
—358—
