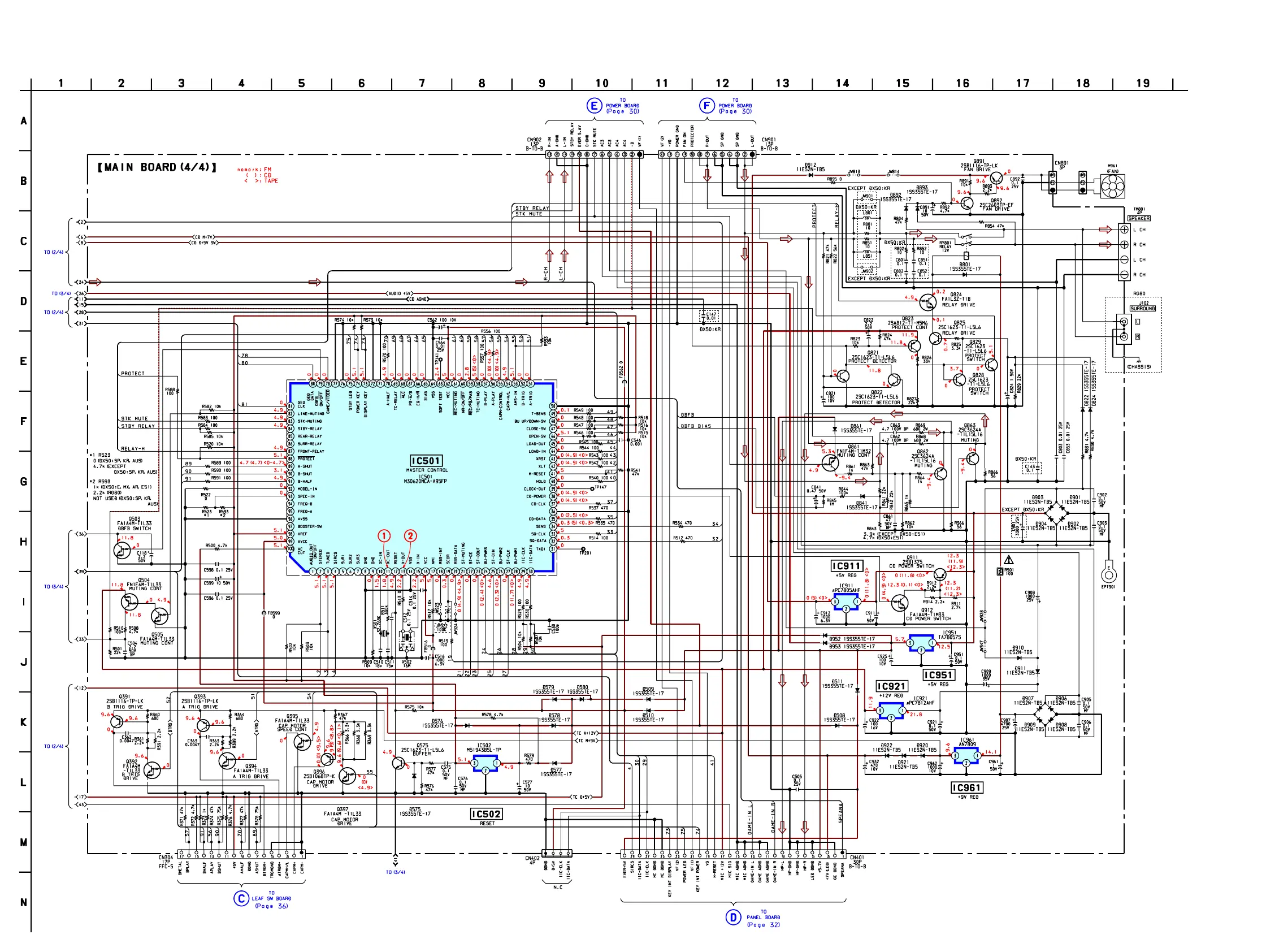

6-6. SCHEMATIC DIAGRAM MAIN SECTION (4/4)
• See page 20 for Waveforms.
• See page 42 for IC Pin Function Description.
