Sony HCD-DX50 - Printed Wiring Board AMP Section

3131
HCD-DX50/RG80

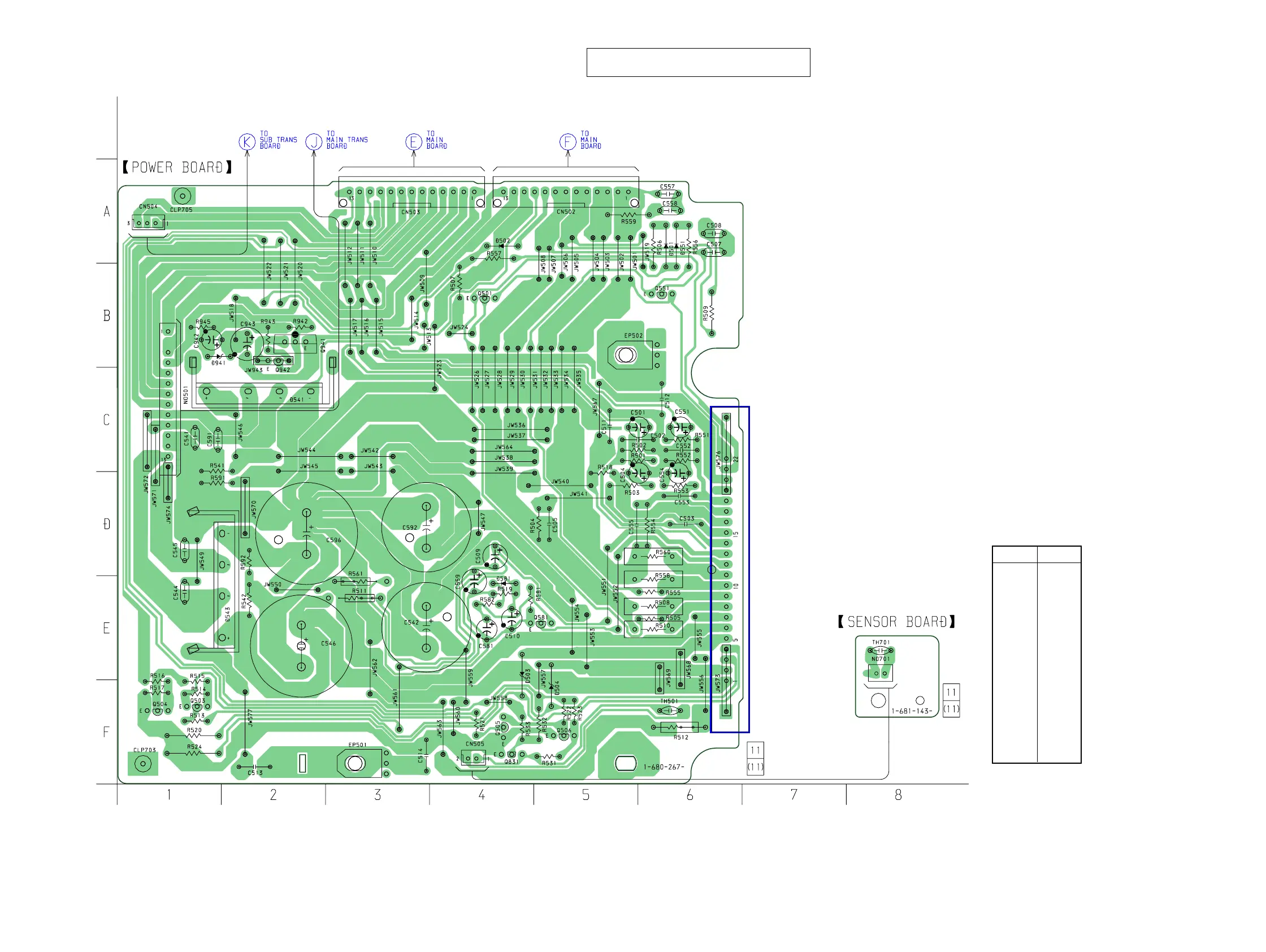

6-11. PRINTED WIRING BOARD AMP SECTION
• See page 20 for Circuit Boards Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
(Page 27)(Page 27)(Page 41)(Page 41)
IC501
Ref. No. Location
D501 A-6
D502 A-4
D543 E-2
D551 A-6
D581 E-4
D941 B-2
IC501 D-6
Q501 B-4
Q503 F-1
Q504 F-1
Q505 F-4
Q506 F-5
Q551 B-6
Q581 E-5
Q831 F-4
Q941 B-2
• Semiconductor
Location
