Sony HCD-DX50 - Mechanism Sections Exploded Views

50
HCD-DX50/RG80

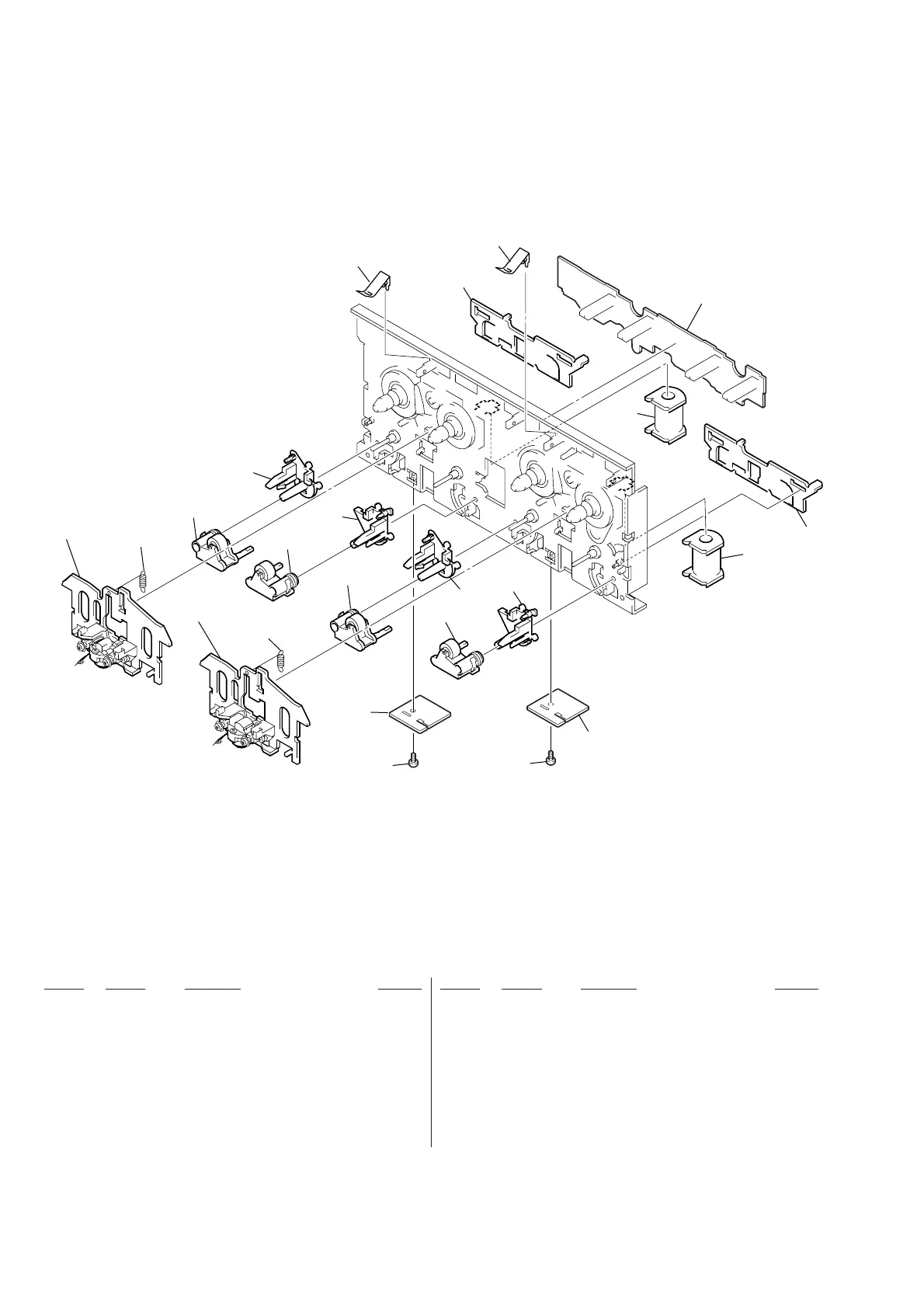

7-4. TAPE MECHANISM DECK SECTION-1 (TCM-230PWR41C)
151
151
152
152
153
153
155
155
154
156
156
154
HRPE901
HP901
Note: Two different types of tape mechanism are used depending on models.
They maintain compatibility as an entire mechanism even though
there are some different parts are used.
160
158
157
157
159
163
PM901
PM902
163
151 3-016-574-01 SPRING (HEAD), TENSION
152 3-017-366-01 BASE (PINCH LEVER REV)
153 3-017-365-01 BASE (PINCH LEVER FWD)
154 X-3374-156-1 PINCH LEVER (REV) ASSY
155 X-3374-155-1 PINCH LEVER (FWD) ASSY
156 3-016-567-01 SPRING (CASSETTE), LEAF
157 4-227-872-01 SCREW (+PTT 2X4), GROUND POINT
158 A-2007-839-A HEAD (A) BOARD, COMPLETE
159 A-2007-840-A HEAD (B) BOARD, COMPLETE
160 A-2007-846-A LEAF SW BOARD, COMPLETE
163 3-016-566-01 SLIDER, REVERSE
HP901 A-2004-765-A BASE (A) ASSY, HEAD
HRPE901 A-2004-766-A BASE (B) ASSY, HEAD
PM901 1-454-887-11 PLUNGER
PM902 1-454-887-11 PLUNGER
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
Ver 1.1 2001.12
