Sony HCD-DX50 - Printed Wiring Board Trans Section

4141
HCD-DX50/RG80

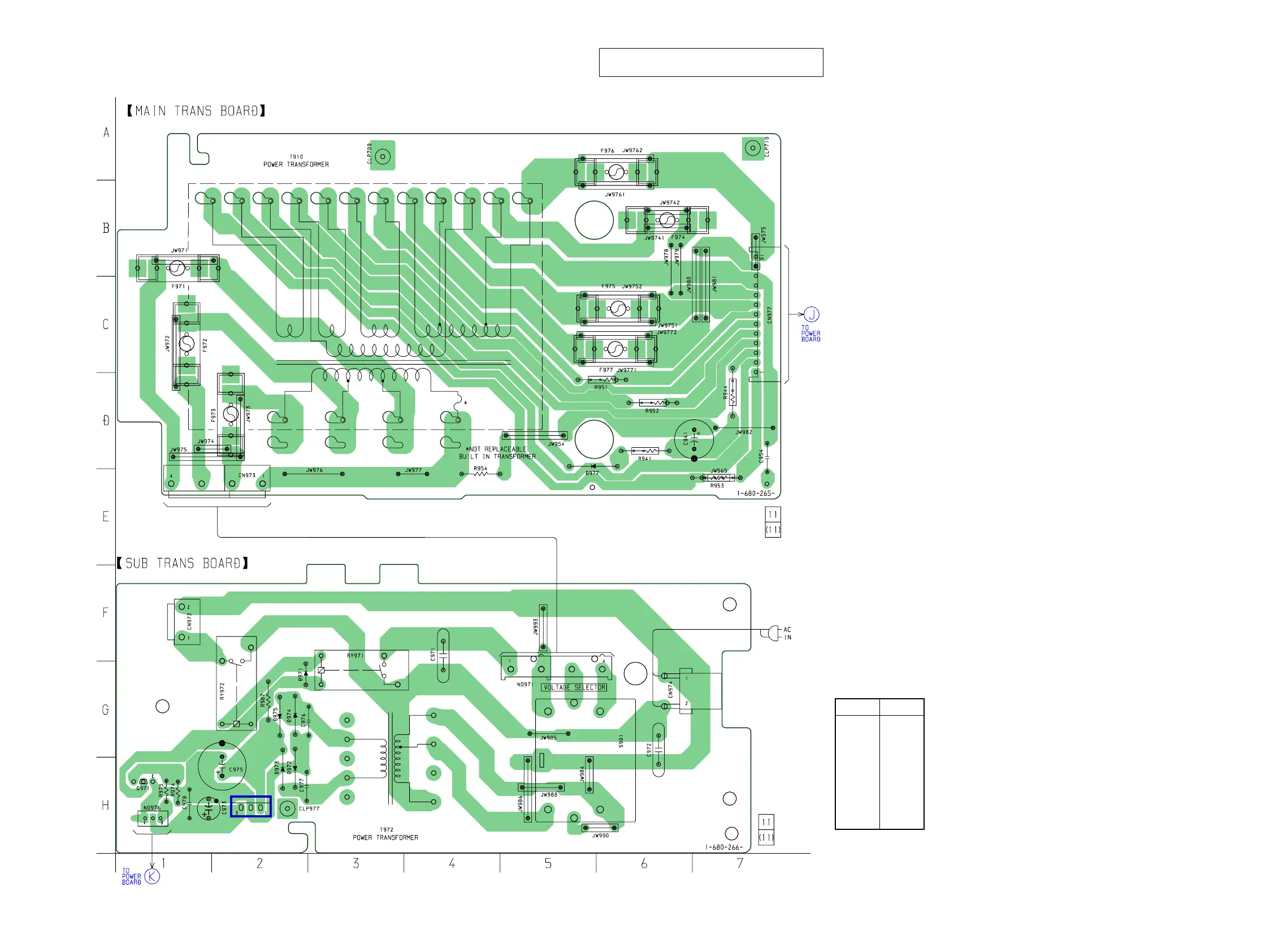

6-21. PRINTED WIRING BOARD TRANS SECTION
• See page 20 for Circuit Boards Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
(Page 31)
(Page 31)
IC971
Ref. No. Location
D971 G-2
D972 H-2
D973 H-2
D974 G-2
D975 G-2
D977 D-5
IC971 H-2
Q971 H-1
• Semiconductor
Location
