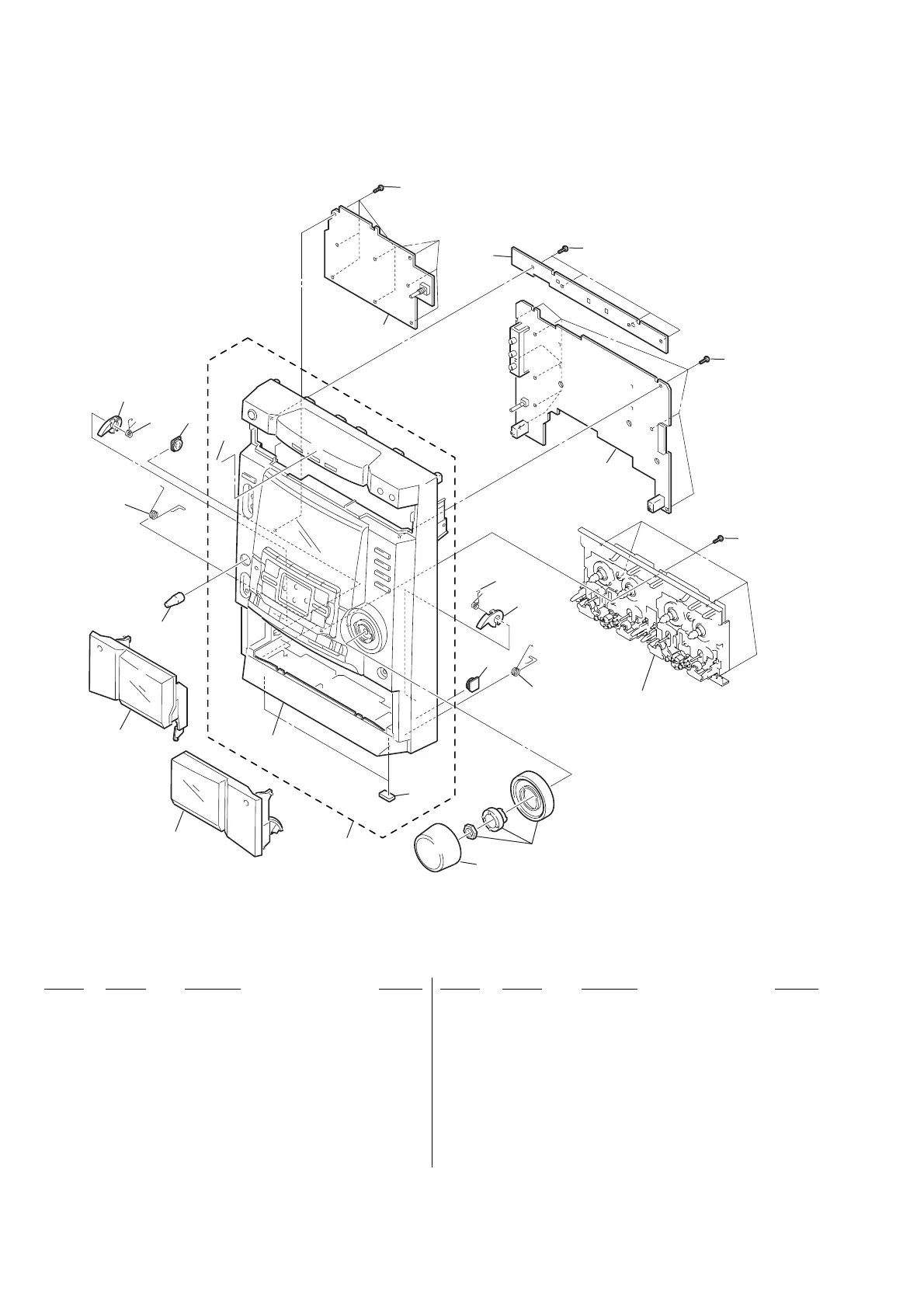

Sony HCD-DX50 - Front Panel Section Exploded View

48
HCD-DX50/RG80
7-2. FRONT PANEL SECTION
S
51
52
53
69
57
70
64
66
55
67
61
60
60
62
Tape mechanism deck
68
67
67
67
not supplied
not supplied
not supplied
not supplied
54
71
51 X-4953-360-1 TC HOLDER (L) ASSY
52 X-4953-361-1 TC HOLDER (R) ASSY
53 4-231-571-01 KNOB VOL
54 A-4475-778-A PAD SWITCH BOARD, COMPLETE (DX50)
54 A-4476-977-A PAD SWITCH BOARD, COMPLETE (RG80)
55 4-963-404-21 EMBLEM (5-A), SONY
57 X-4953-359-1 FRONT PANEL ASSY (DX50)
57 X-4953-795-1 FRONT PANEL ASSY (RG80)
60 4-224-104-11 DAMPER
61 4-231-836-01 SPRING (HEART CAM-A)
62 4-231-841-01 SPRING (HEART CAM-B)
64 4-231-587-01 SPRING R
66 A-4475-773-A PANEL BOARD, COMPLETE (DX50)
66 A-4476-975-A PANEL BOARD, COMPLETE (RG80)
67 4-951-620-01 SCREW (2.6X8), +BVTP
68 4-231-805-01 KNOB (MIC) (DX50)
69 4-231-586-01 SPRING L
70 4-225-252-01 CUSHION (FOOT)
71 1-680-263-11 CD SWITCH BOARD
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
