HCD-DX50/RG80

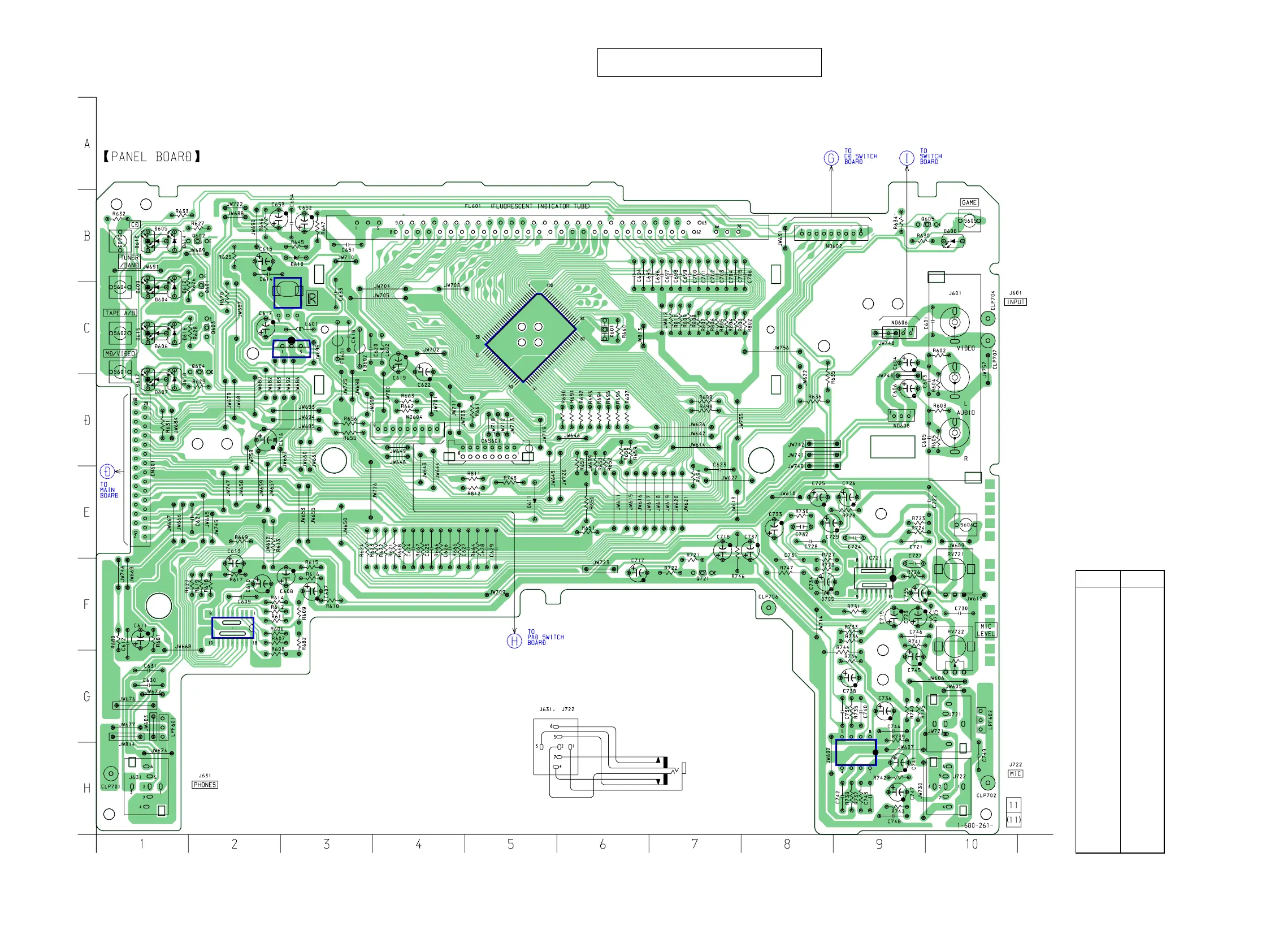

6-13. PRINTED WIRING BOARD PANEL SECTION
• See page 20 for Circuit Boards Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
(Page 35)
(Page 27)
(Page 42)(Page 35)
IC603
IC616
IC601
IC602
IC722
Ref. No. Location
D608 B-10
D609 C-1
D610 B-3
D611 E-5
D612 C-1
D613 B-1
D614 B-1
D615 C-1
D616 C-1
D617 D-1
D618 D-1
IC601 C-5
IC602 F-2
IC603 C-3
IC616 C-3
IC722 H-9
Q601 C-2
Q602 B-2
Q603 C-2
Q604 C-2
Q605 B-9
Q721 F-7
• Semiconductor
Location
