SECTION 7
EXPLODED VIEWS
47
HCD-DX50/RG80
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
AR : Argentina model
AUS : Australian model
E51 : Chilean and Peruvian model
KR : Korea model
MX : Mexican model
SP : Singapore model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.

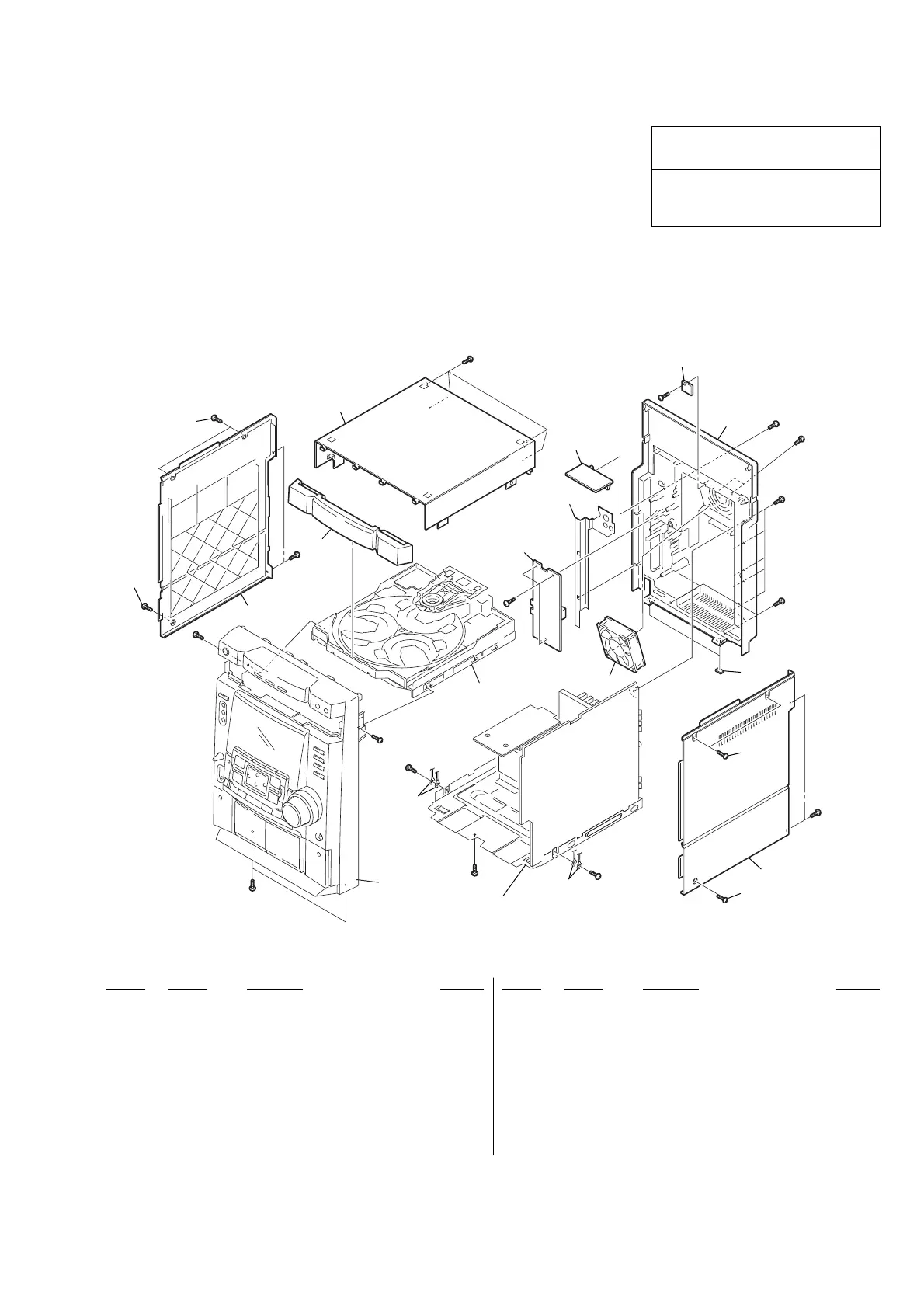

7-1. CABINET SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
CD mechanism deck
#3
#3
#3
#3
#3
#3
#4
#3
#
3
#3
#3
#3
#3
#3
#3
4
3
5
2
2
2
2
6
Front Panel section
Main board section
M961
1
8
9
10
12
11
not
supplied
not
supplied
1 4-225-252-01 CUSHION (FOOT)
2 3-363-099-41 SCREW (CASE 3 TP2)
3 4-225-038-22 SIDE PANEL (L)
4 4-231-563-01 LOADING PANEL (DX50)
4 4-231-563-61 LOADING PANEL (RG80)
5 4-225-039-72 SIDE PANEL (R)
6 4-224-550-01 CASE (TOP)
8 4-231-580-01 BACK PANEL (DX50:E,SP,AR)
8 4-231-580-21 BACK PANEL (DX50:,KR,,MX,AUS/RG80)
9 1-681-143-11 SESOR BOARD
10 1-680-892-11 SWITCH BOARD
11 4-233-148-01 GROUND PLATE
12 A-4475-786-A SUB TRANS BOARD, COMPLETE (DX50:E,SP,AR)
12 A-4476-280-A SUB TRANS BOARD, COMPLETE
(DX50:KR,MX,AUS)
12 A-4476-979-A SUB TRANS BOARD, COMPLETE (RG80)
M961 1-763-072-11 FAN, D.C.
#3 7-685-647-11 SCREW +BVTP 3X10
#4 7-685-648-11 SCREW +BVTP 3X12
