HCD-DX50/RG80

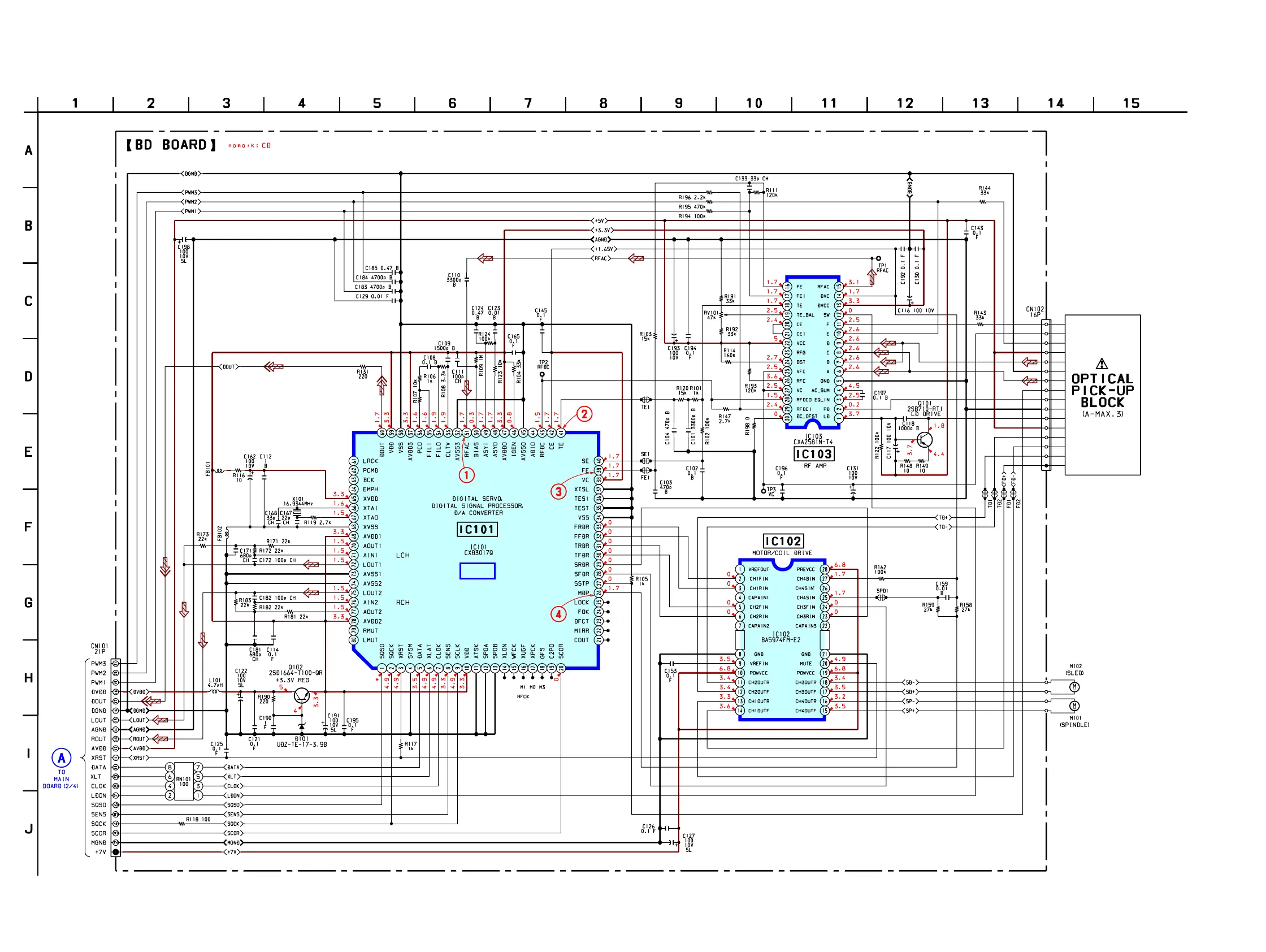

6-8. SCHEMATIC DIAGRAM BD SECTION
• See page 20 for Waveforms.
• See page 46 for IC Block Diagrams.
IC B/D
