HCD-DX50/RG80
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

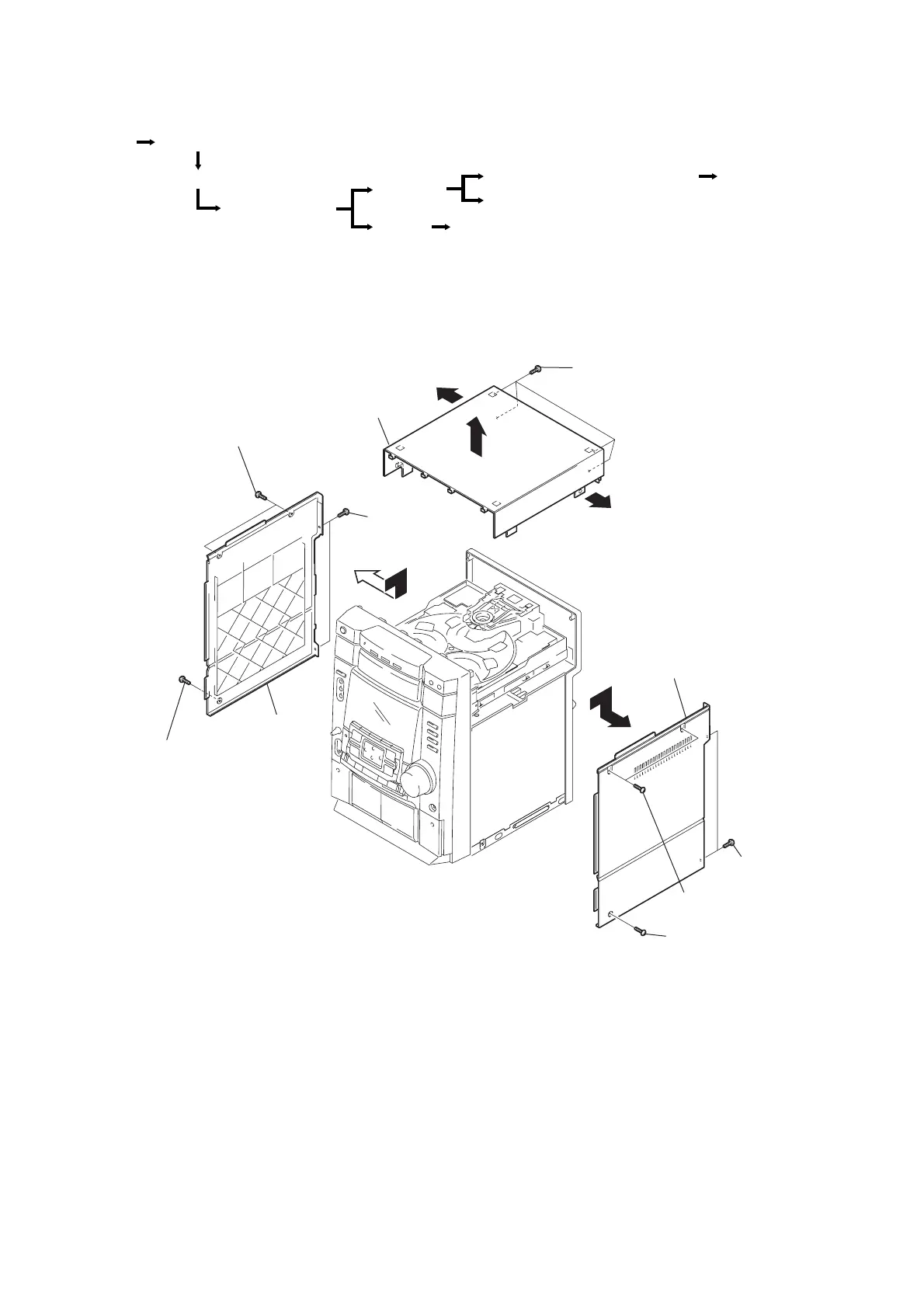

2-1. UPPER CASE (TOP)
Side panel (R)
4
qa
q;
q;
8
Upper case (Top)
Side panel (L)
5 Two screws (Case)
7 Two screws
(+BVTP 3
× 10)
3 Two screws
(+BVTP 3
× 10)
1 Two screws (Case)
9 Four screws (+BVTP 3 × 12)
6 Screw (Case)
2 Screw (Case)
• The equipment can be removed using the following procedure.
Driver board, Moter board and Address sensor board
Upper case (Top)
Loading panel assy
Front panel section
Panel board
Sub trans board and Main trans board Main board and Power board
Leaf SW board, Head (A) board and Head (B) board
Base unit
Set
