Sony HCD-DX50 - CD Mechanism Deck Section (CDM58 E-30 BD60)

52
HCD-DX50/RG80
not supplied
BU-30BD60
251
252
253
254
255
256
274
275
276
269
257
259
258
258
258
260
261
262
263
251
264
271
265
268
279
271
284
267
266
271
270
270
270
283
283
258
M721
282
284

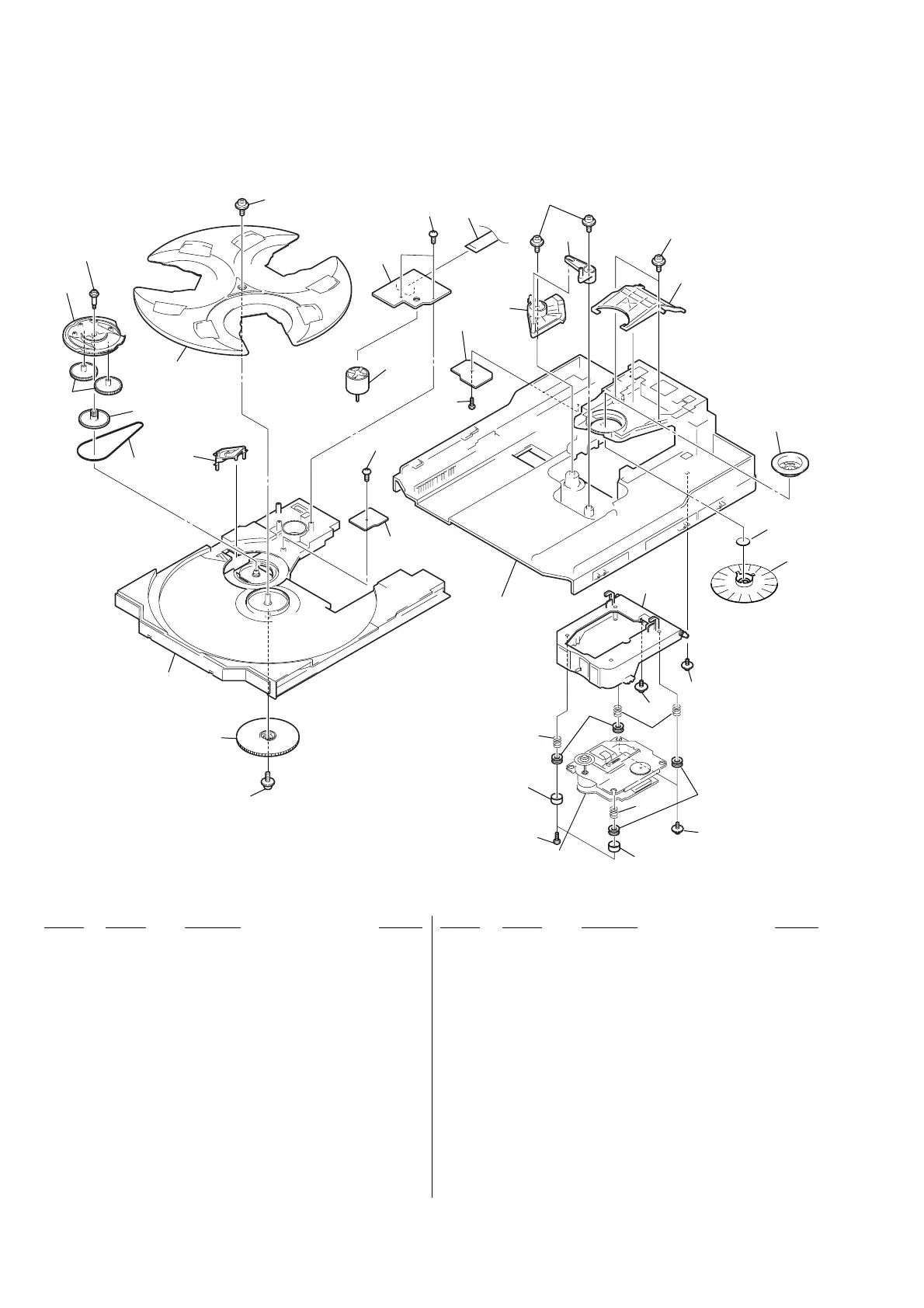

7-6. CD MECHANISM DECK SECTION (CDM58E-30BD60)
251 4-933-134-11 SCREW (+PTPWH M2.6X8)
252 4-221-679-01 CAM (RELAY)
253 4-231-452-01 TABLE (NEW)
254 4-221-686-01 LEVER (CHANGE)
255 4-221-676-01 TRAY
256 4-933-134-51 SCREW (+PTPWH 2.6X8)
257 1-675-910-11 MOTOR BOARD
258 4-951-620-01 SCREW (2.6X8), +BVTP
259 1-791-983-11 WIRE (FLAT TYPE) (8 CORE)
260 1-675-911-14 ADDRESS SENSOR BOARD
261 1-675-912-14 DRIVER BOARD
262 X-4952-608-1 CAM (U/D) ASSY
263 4-221-681-01 LEVER (EX)
264 4-221-682-01 LEVER (LIFTER)
265 4-231-513-01 PULLEY (B) (BU-30), CHUCKING
266 4-228-414-01 BRACKET (YOKE)
267 X-4953-307-1 PULLEY (A) ASSY, CHUCKING
268 X-4953-306-1 HOLDER (BU) (BU-30) ASSY
269 4-222-095-01 BELT
270 4-227-045-11 SPRING (INSULATOR), COIL
271 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
274 4-221-678-01 CAM (CONTROL)
275 4-221-683-01 GEAR (U)
276 4-221-685-01 PULLEY (S)
279 4-227-899-01 SCREW (DIA. 12), FROATING
282 4-222-097-01 SCREW, STEP
283 4-231-451-01 INSULATOR (BU-30)
284 4-231-151-01 STOPPER (BU)
M721 A-4672-826-A MOTOR ASSY (TURN)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
