Sony HCD-DX50 - Printed Wiring Board Leaf SW Section

3737
HCD-DX50/RG80

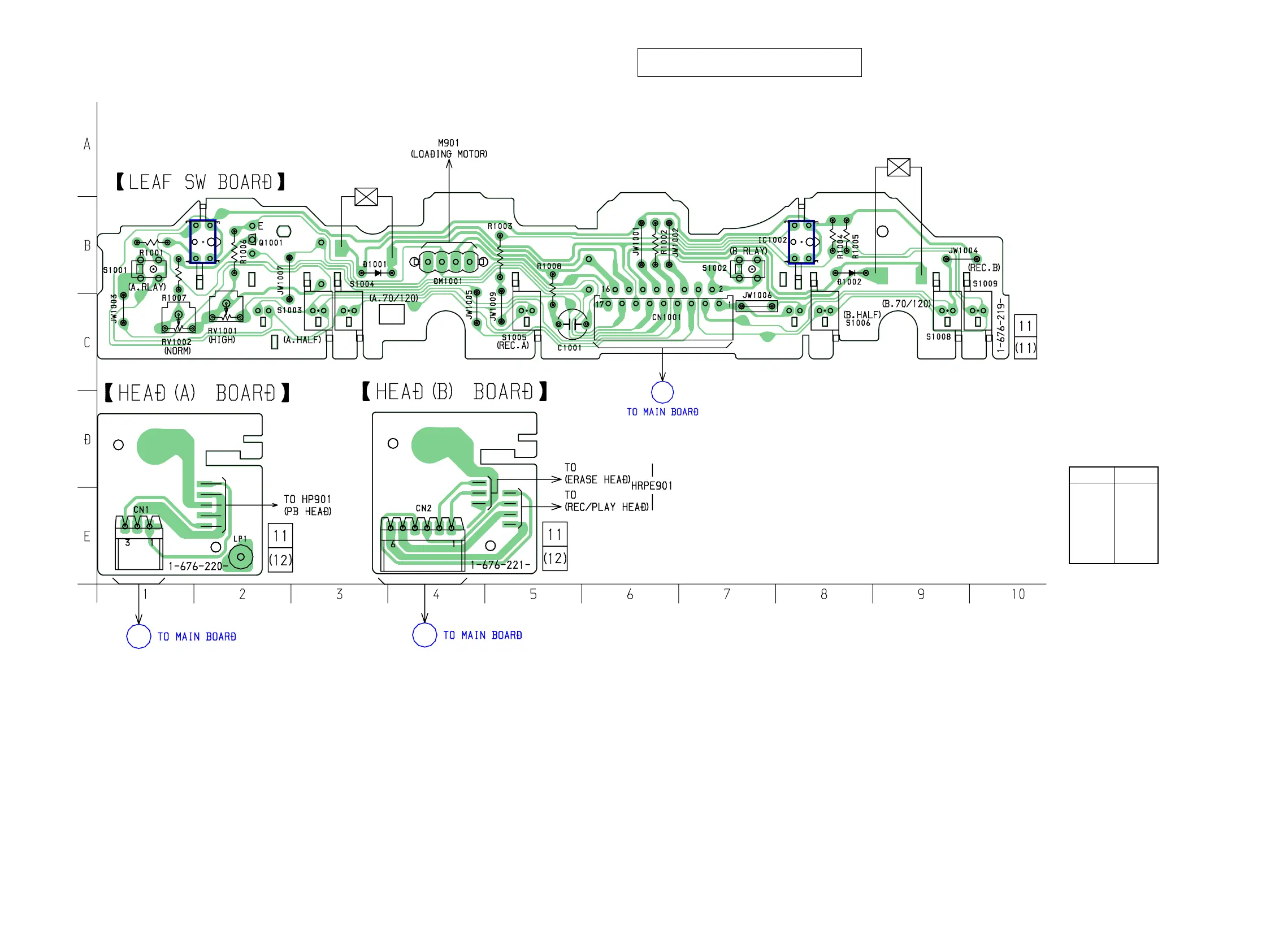

6-17. PRINTED WIRING BOARD LEAF SW SECTION
• See page 20 for Circuit Boards Location.
• See page 25 for Schematic Diagram of Head Board.
C
M
L
(Page 27)
(Page 27)
(Page 27)
IC1001
IC1002
PM901
PM902
Ref. No. Location
D1001 B-4
D1002 B-8
IC1001 B-2
IC1002 B-8
Q1001 B-2
• Semiconductor
Location
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
