Sony HCD-DX50 - Printed Wiring Board Panel SW Section

3535
HCD-DX50/RG80

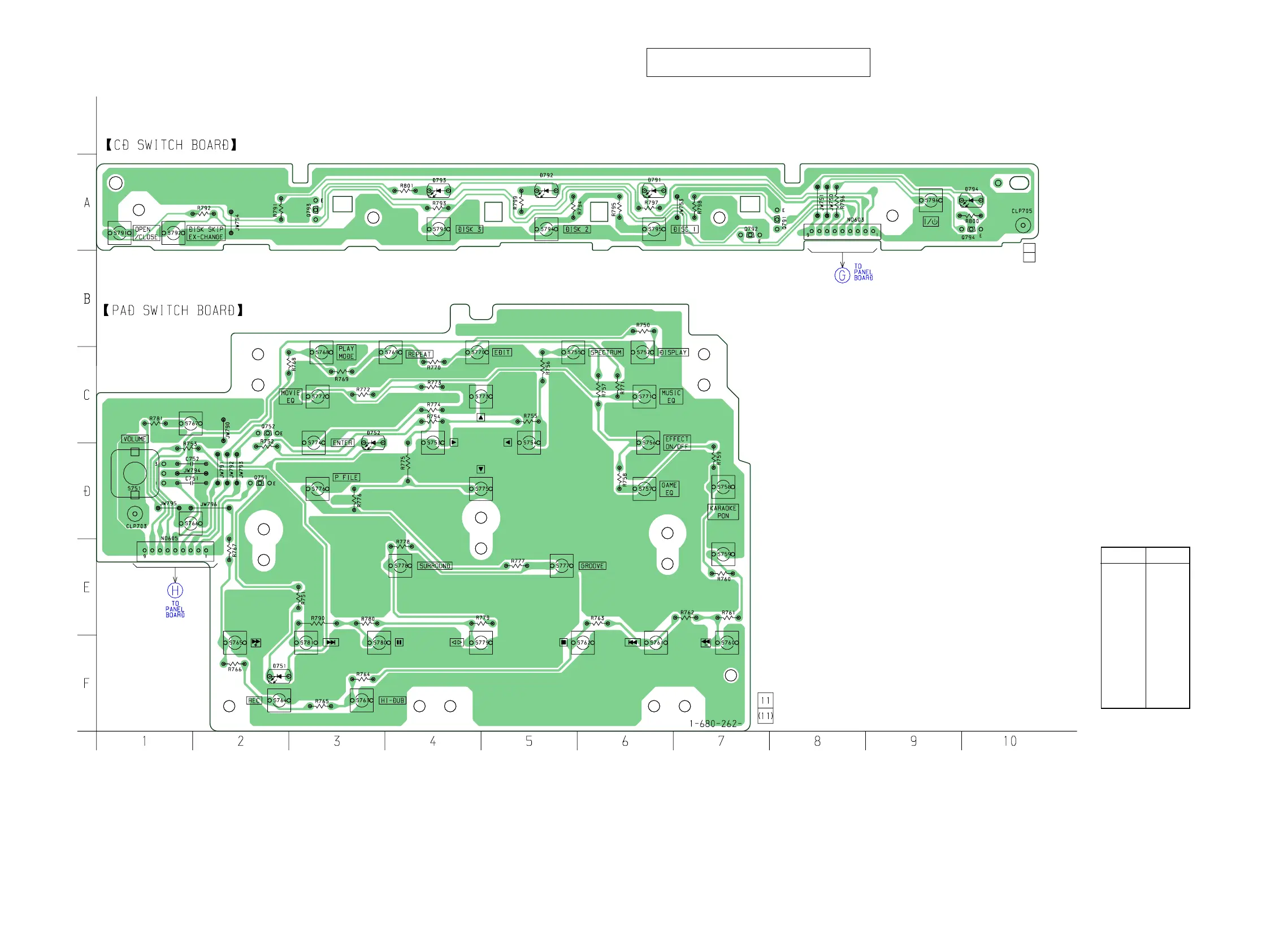

6-15. PRINTED WIRING BOARD PANEL SWITCH SECTION
• See page 20 for Circuit Boards Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
(Page 33)
(Page 33)
11
(11)
1-680-263-
Ref. No. Location
D751 F-2
D752 C-3
D791 A-6
D792 A-5
D793 A-4
D794 A-10
Q751 D-2
Q752 C-2
Q791 A-8
Q792 A-7
Q793 A-3
Q794 A-10
• Semiconductor
Location
