Sony HCD-DX50 - Tape Mechanism Section-2 (TCM-230 PWR41 C)

51
HCD-DX50/RG80

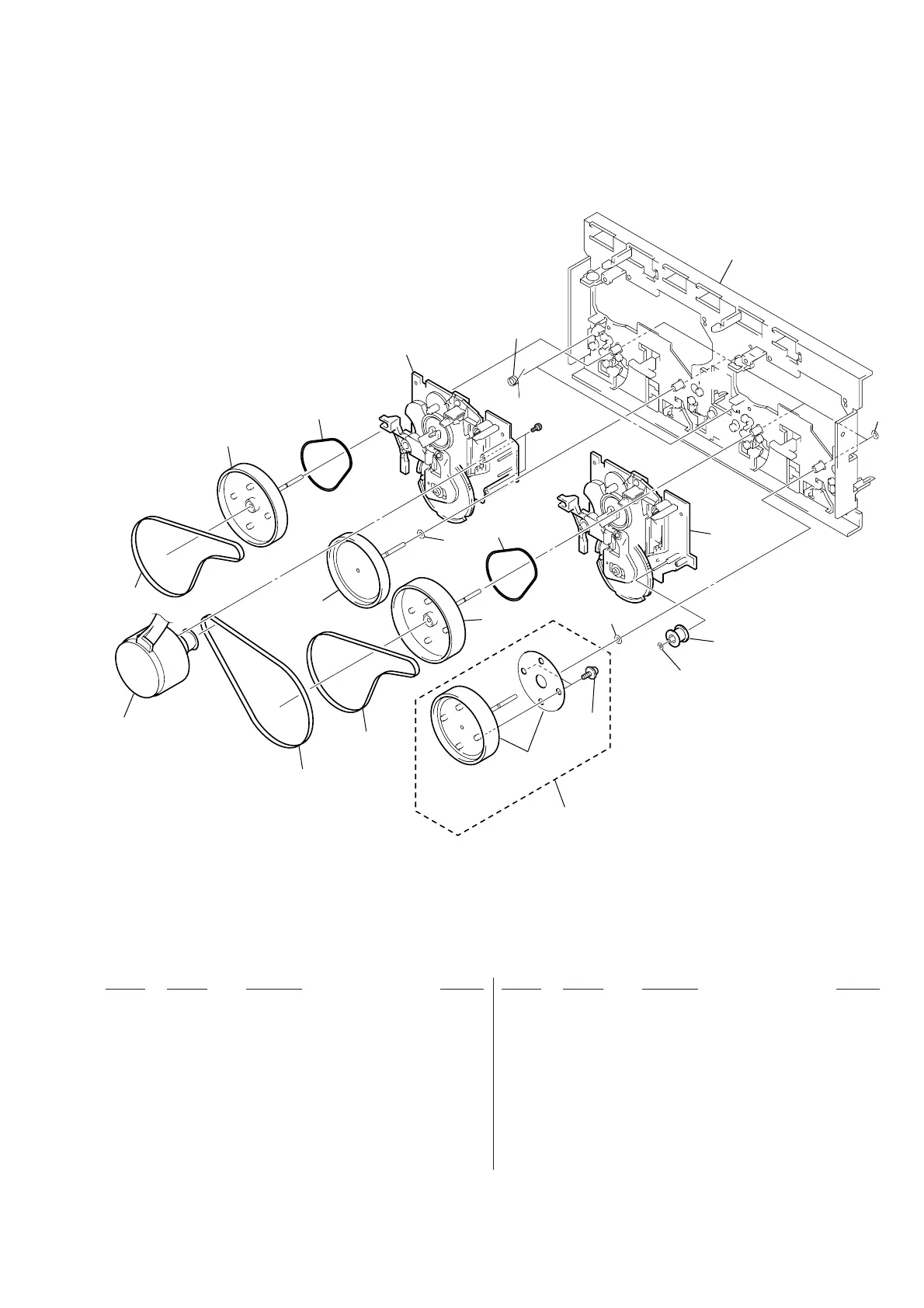

7-5. TAPE MECHANISM DECK SECTION-2 (TCM-230PWR41C)
206
212
211
214
216
211
not supplied
201
201
202
205
203
204
207
218
215
207
213
M901
#1
219
217
201 3-041-946-01 BELT (CAPSTAN B)
202 4-227-239-01 BELT (CAPSTAN C)
203 X-3378-249-1 FLYWHEEL (B-FWD) ASSY
204 X-3378-250-1 FLYWHEEL (B-REV) ASSY
205 X-3378-247-1 FLYWHEEL (A-FWD) ASSY
206 X-3378-248-1 FLYWHEEL (A-REV) ASSY
207 3-041-947-01 BELT (FR)
211 3-362-267-01 RING, RETAINING, CAPSTAN
212 3-318-203-62 SCREW (B1.7X4), TAPPING
213 3-019-208-01 WASHER, STOPPER
214 3-040-580-11 PULLEY (TENSION)
215 4-228-450-11 SPRING (REVERS SLIDER), TORSION
216 3-017-407-01 WASHER (FR LEVER), STOPPER
217 A-2004-795-A CHASSIS (A) ASSY, SUB
218 A-2004-796-A CHASSIS (B) ASSY, SUB
219 X-4952-881-1 CHASSIS, MAIN
M901 X-3378-241-1 MOTOR ASSY(CAPSTAN)
#1 7-628-254-00 SCREW +PS2.6X5
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
Ver 1.1 2001.12
