Sony HCD-DX80 - Main Board; LEAF SW Board, HEAD (A) Board, HEAD (B) Board

11
HCD-DX80

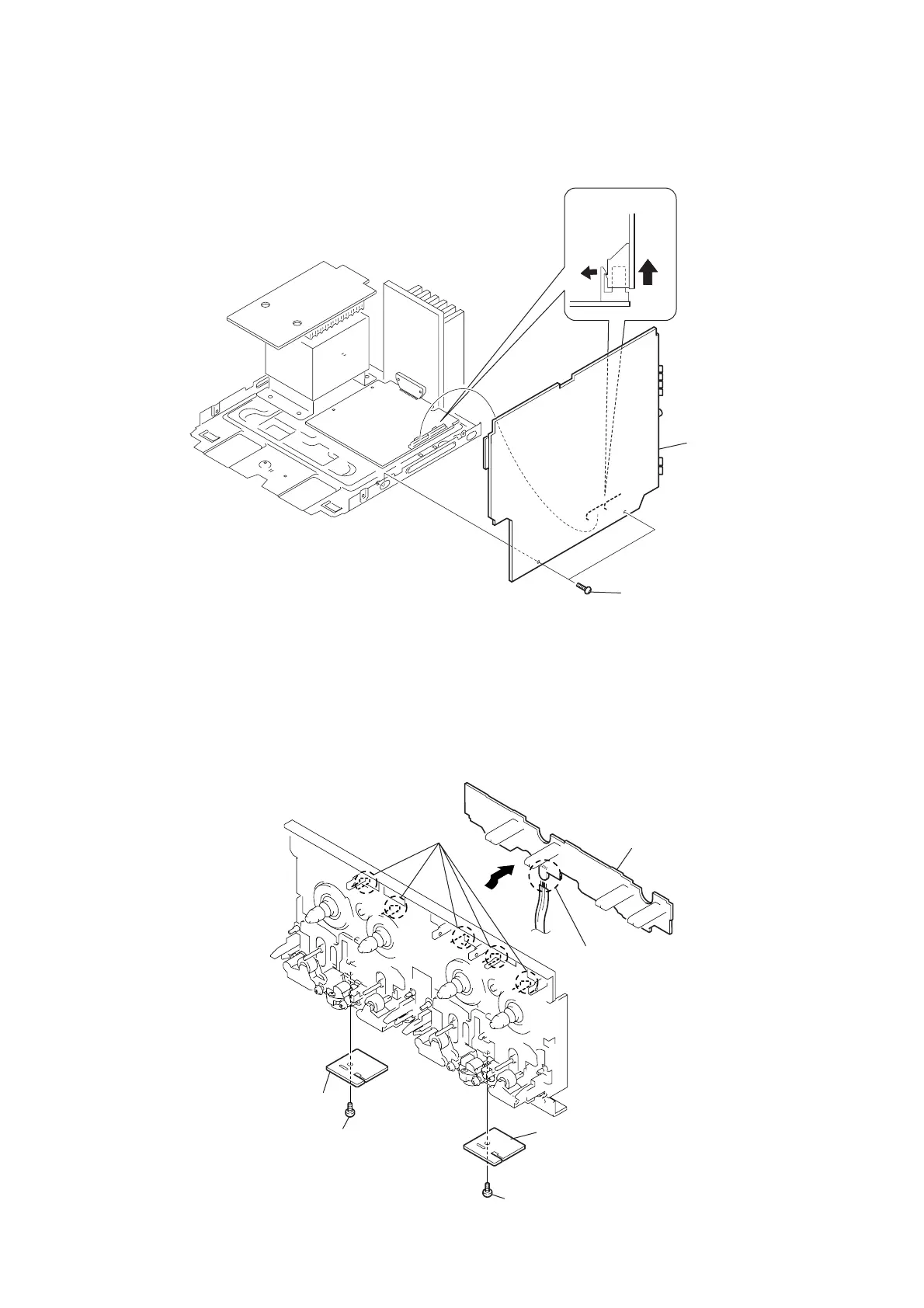

2-8. MAIN BOARD
2-9. LEAF SW BOARD, HEAD (A) BOARD, HEAD (B) BOARD
1 two screws (+BVTP 3 × 10)
2 MAIN board
MAIN board
6 screw (+PTT 2 × 4)
4 screw (+PTT 2 × 4)
3 LEAF SW board
2 five claws
5 head (A) board
7 head (B) board
1 Remove the four solderings.
