Sony HCD-DX80 - Case (Top); Loading Panel

8
HCD-DX80
Note: Follow the disassembly procedure in the numerical order given.

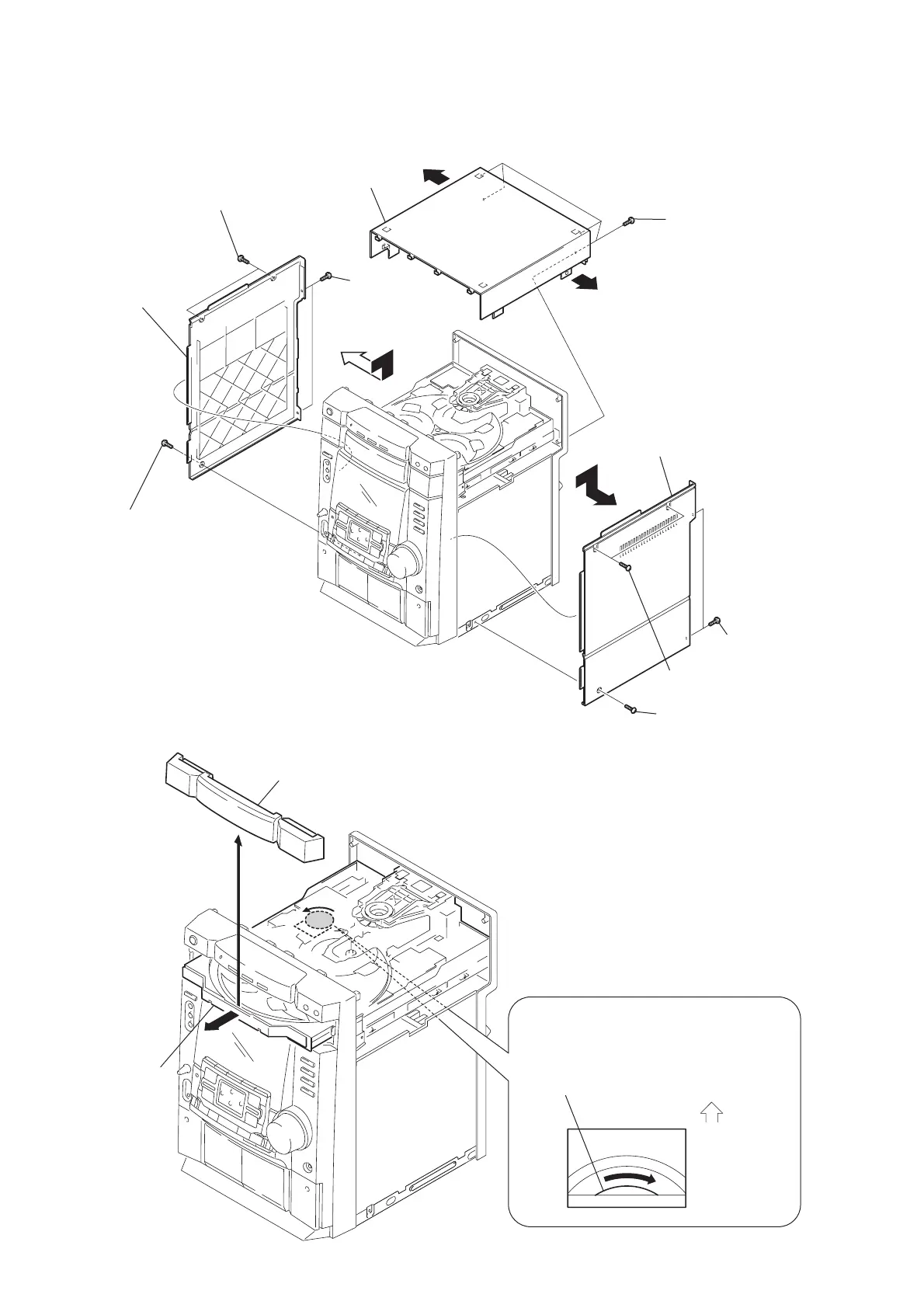

2-2. CASE (TOP)
q;
q;
5
two screws (case 3 TP2)
7 two screws
(+BVTP 3
× 10)
3 two screws
(+BVTP 3
× 10)
1 two screws (case 3 TP2
)
6 screw (case 3TP2)
8 side panel (L)
4 side panel (R)
2 screw (case 3 TP2)
9 four screws
(+BVTP 3
× 12)
qa case (Top)
2-3. LOADING PANEL
2 Pull-out the disc tray.
3 loading panel
1 Turn the pulley in the direction of the arrow.
Front panel side
CD mechanism deck (CDM58E-30BD60)
–BOTTOM VIEW–
