Sony HCD-DX80 - Main Board Section

54
HCD-DX80
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

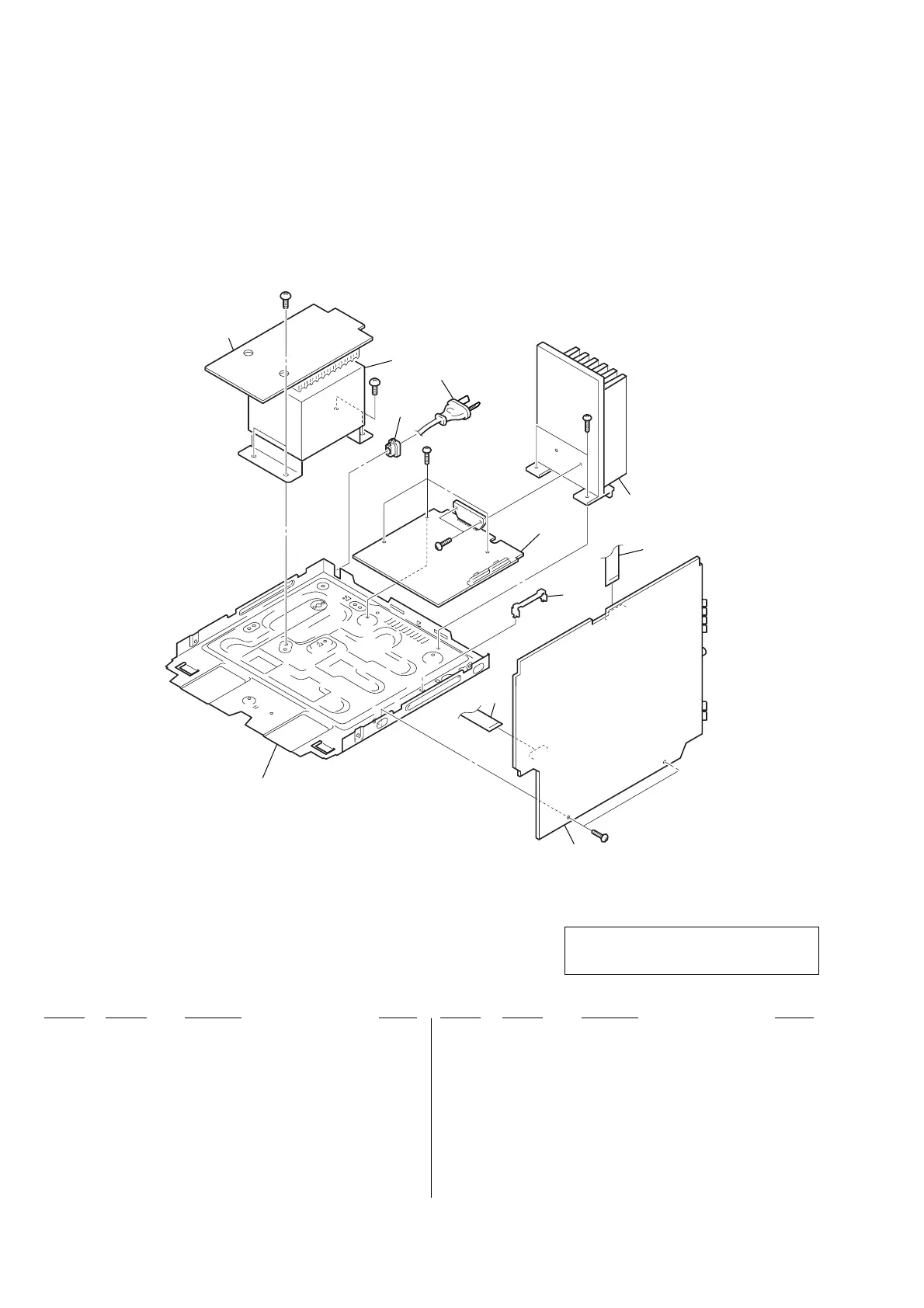

7-3. MAIN BOARD SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 1-773-045-11 WIRE (FLAT TYPE) (17 CORE)
102 A-2007-962-A MAIN BOARD, COMPLETE (E2, E51)
102 A-2007-966-A MAIN BOARD, COMPLETE (MX, AR)
102 A-4476-118-A MAIN BOARD, COMPLETE (SP)
102 A-4726-064-A MAIN BOARD, COMPLETE (BR)
* 103 4-988-533-01 HOLDER, PWB
104 1-757-418-11 WIRE (FLAT TYPE) (21 CORE) (AR)
104 1-757-683-11 CABLE, FLAT (21 CORE) (EXCEPT AR)
105 1-680-265-11 MAIN TRANS BOARD
* 106 3-703-244-00 BUSHING (2104), CORD
107 A-4476-270-A POWER AMPLIFIER BOARD, COMPLETE (MX)
107 A-4476-767-A POWER AMPLIFIER BOARD, COMPLETE
(E2, E51, AR)
107 A-4476-770-A POWER AMPLIFIER BOARD, COMPLETE (SP)
107 A-4726-062-A POWER AMPLIFIER BOARD, COMPLETE (BR)
0 108 1-757-813-21 CORD, POWER (BR)
0 108 1-777-071-51 CORD, POWER (EXCEPT BR)
0 T910 1-437-284-11 TRANSFORMER, POWER (BR)
0 T910 1-437-355-11 TRANSFORMER, POWER (EXCEPT BR)
#1
#1
#3
#2
#1
#4
103
107
106
101
102
104
105
T910
not supplied
not supplied
108
