Sony HCD-DX80 - Printed Wiring Boards -LEAF SW;HEAD Board

3939
HCD-DX80

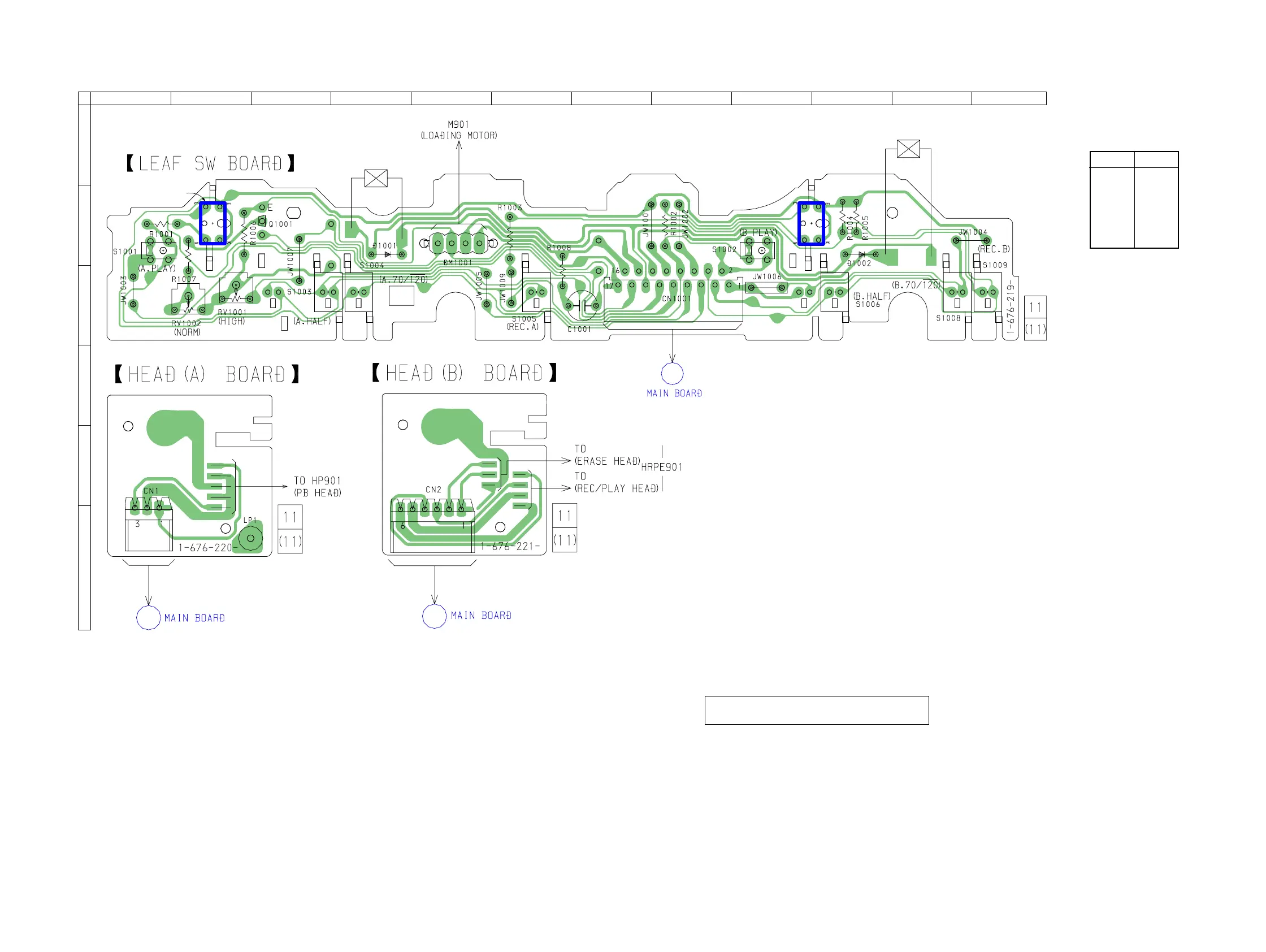

6-18. PRINTED WIRING BOARDS – LEAF SW/HEAD Board –
• See page 23 for Circuit Boards Location. • See page 28 for Schematic Diagram of Head Board.
Ref. No. Location
D1001 B-4
D1002 B-10
IC1001 B-2
IC1002 B-10
Q1001 B-3
• Semiconductor
Location
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
PM901
PM902
F
P
O
CN304
IC1001
IC1002
NO303NO302
A
B
C
D
E
F
1 2 3 4 5 6 7 8 9 10 11 12
(Page 30) (Page 30)
(Page 30)
