Sony HCD-DX80 - Schematic Diagram -MAIN Board (2;4)

2727
HCD-DX80

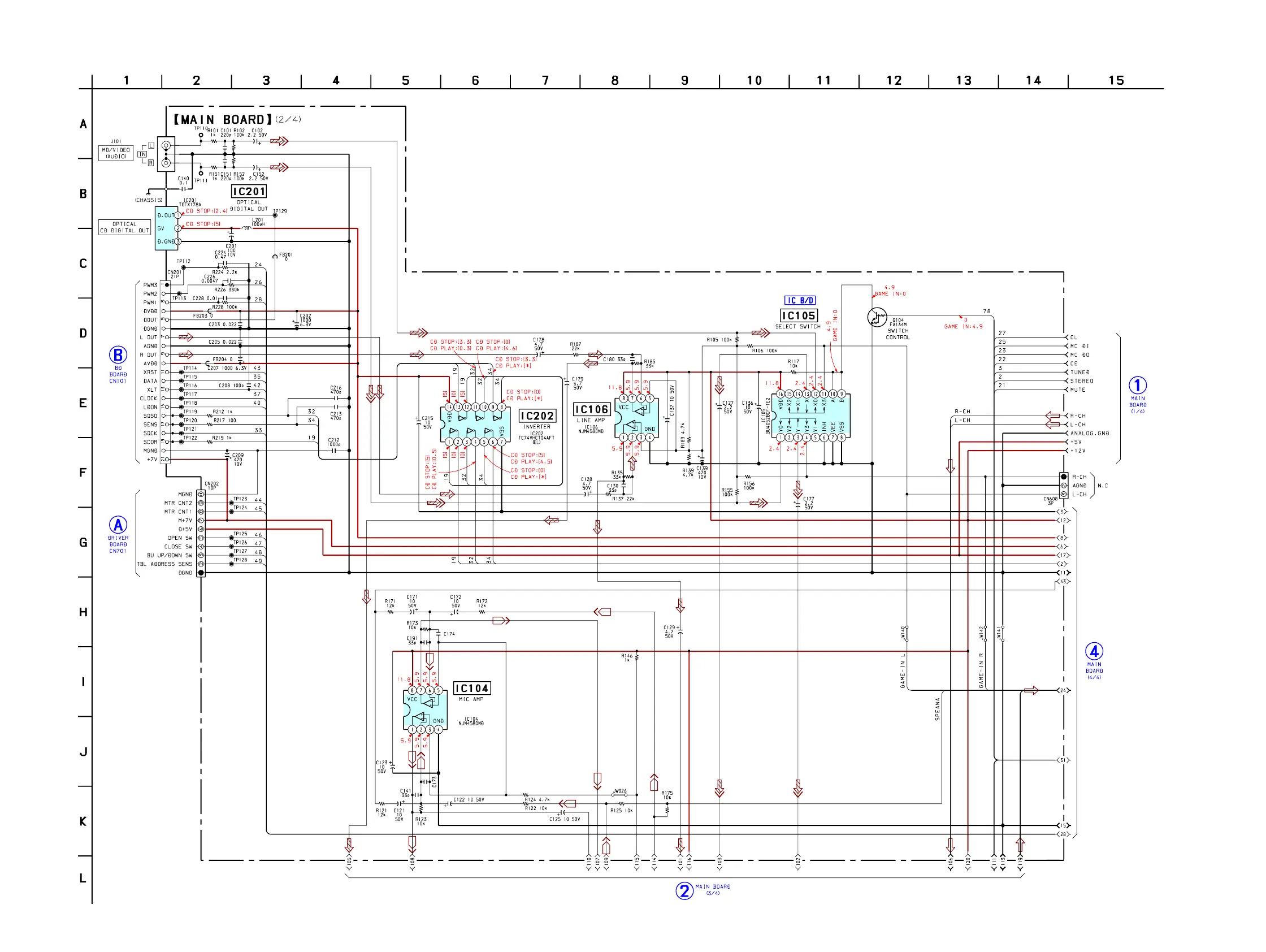

6-7. SCHEMATIC DIAGRAM – MAIN Board (2/4) –
(Page 24)
(Page 40)
(Page 28)
(Page 26)
(Page 29)
• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : FM
( ) : TAPE
[ ] : CD
