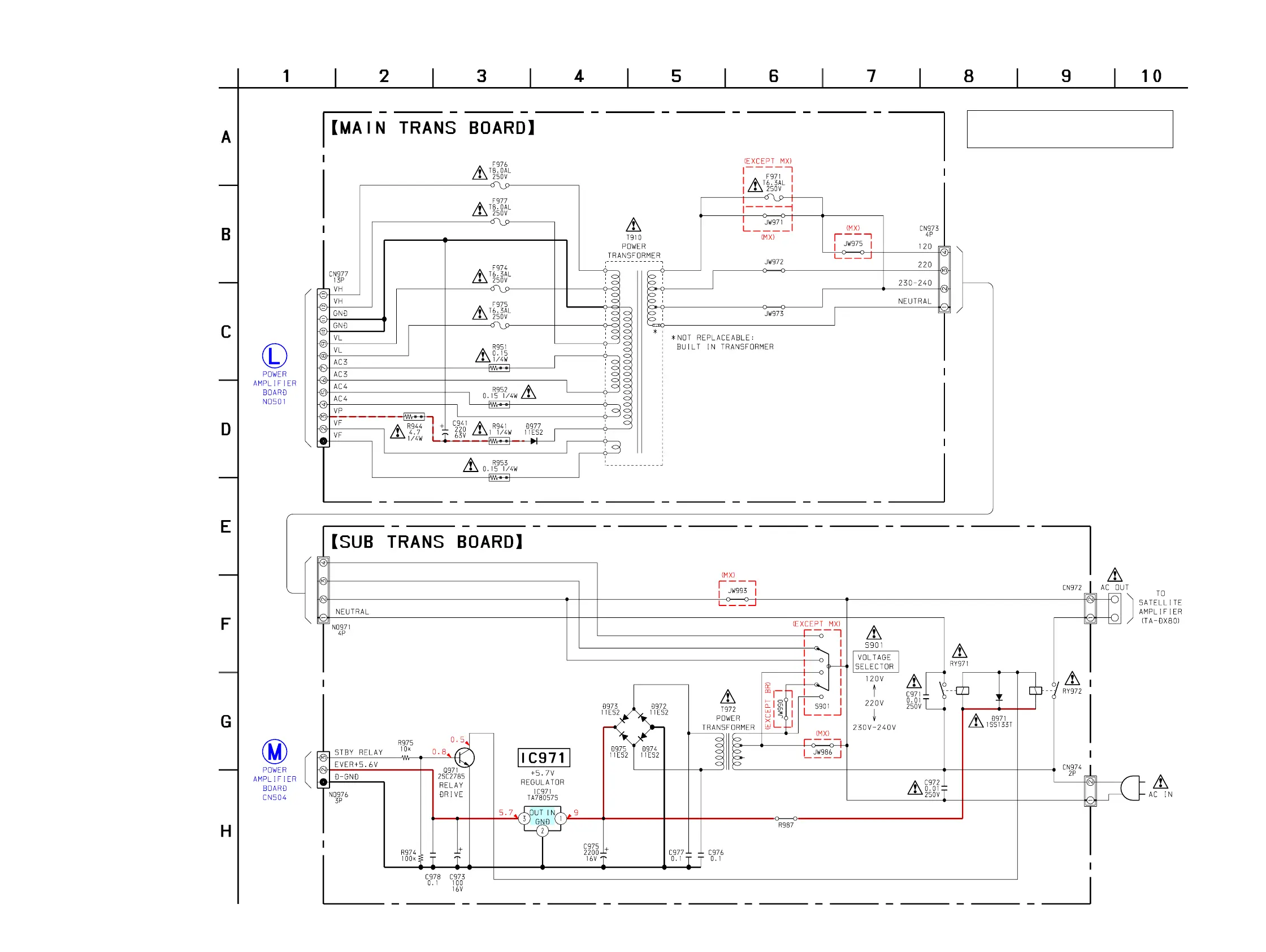

6-21. SCHEMATIC DIAGRAM – MAIN TRANS/SUB TRANS Board –
(Page 32)
(Page 32)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : FM
