Sony HCD-DX80 - 7 Exploded Views; Cabinet Section

52
HCD-DX80

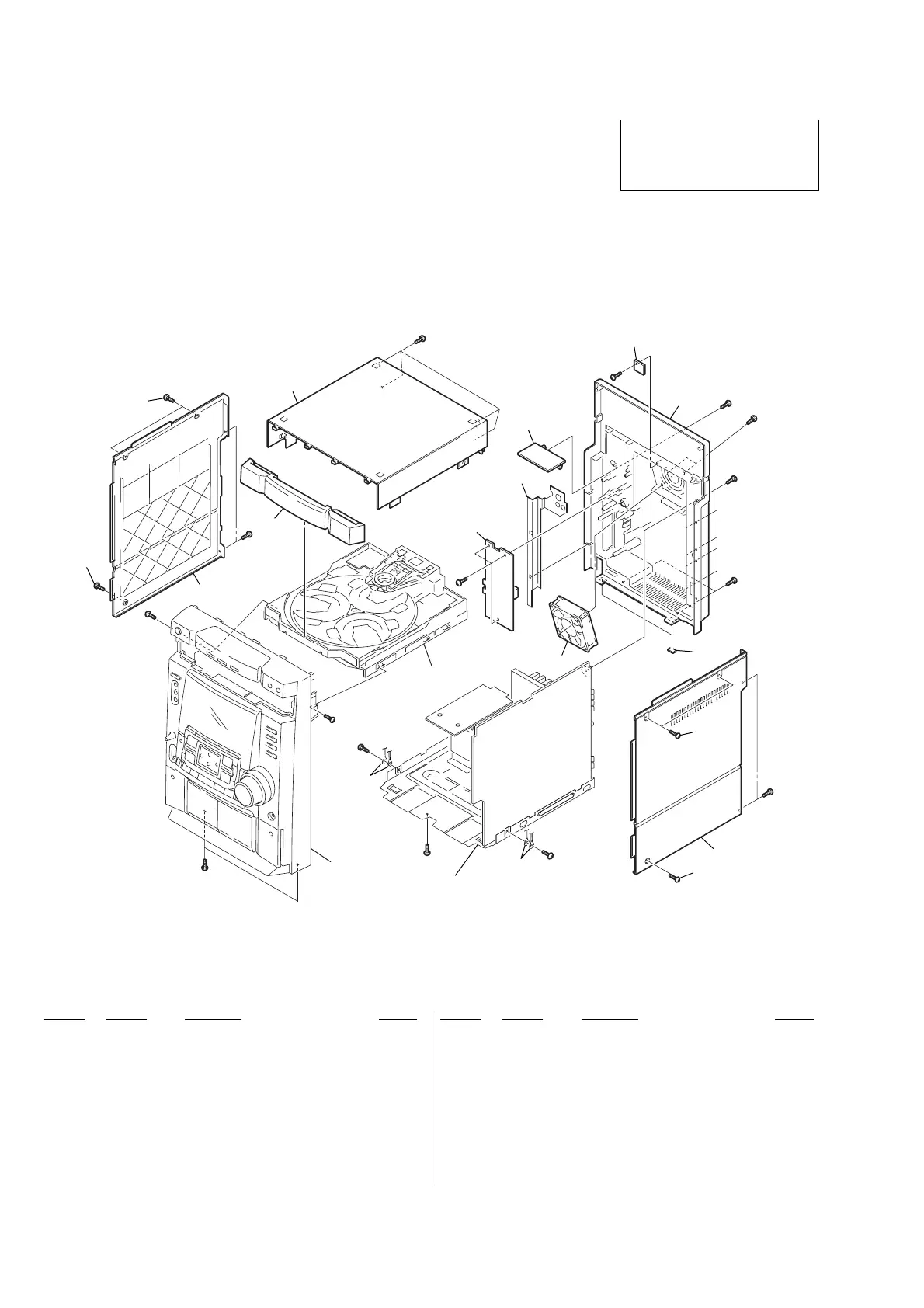

7-1. CABINET SECTION
SECTION 7
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
AR : Argentina model
BR : Brazilian model
E2 : 120 V AC Area in Emodel
E51 : Chiliean and Peruvian model
MX : Mexican model
SP : Singapore model
CDM58E-30BD60
#1
#1
#1
#1
#1
#1
#2
#1
#1
#1
#1
#1
#1
#1
#1
4
3
5
2
2
2
2
6
Front Panel section
Main board section
M961
1
8
9
10
12
11
not
supplied
not
supplied
1 4-225-252-01 CUSHION (FOOT)
2 3-363-099-41 SCREW (CASE 3 TP2)
3 4-225-038-21 SIDE PANEL (L) (EXCEPT BR)
3 4-225-038-41 SIDE PANEL (L) (BR)
4 4-231-563-21 LOADING PANEL
5 4-225-039-42 SIDE PANEL (R) (BR)
5 4-225-039-72 SIDE PANEL (R) (EXCEPT BR)
6 4-224-550-41 CASE (TOP) (EXCEPT BR)
6 4-224-550-61 CASE (TOP) (BR)
8 4-231-580-41 BACK PANEL (EXCEPT MX)
8 4-231-580-51 BACK PANEL (MX)
9 1-681-143-11 SENSOR BOARD
10 1-680-692-11 VIDEO SWITCH BOARD
11 4-233-148-01 GROUND PLATE
12 A-2007-964-A SUB TRANS BOARD, COMPLETE (MX)
12 A-4476-114-A SUB TRANS BOARD, COMPLETE
(E2, E51, SP, AR)
12 A-4726-060-A SUB TRANS BOARD, COMPLETE (BR)
M961 1-763-072-11 FAN, D.C.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
