HCD-DX80
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

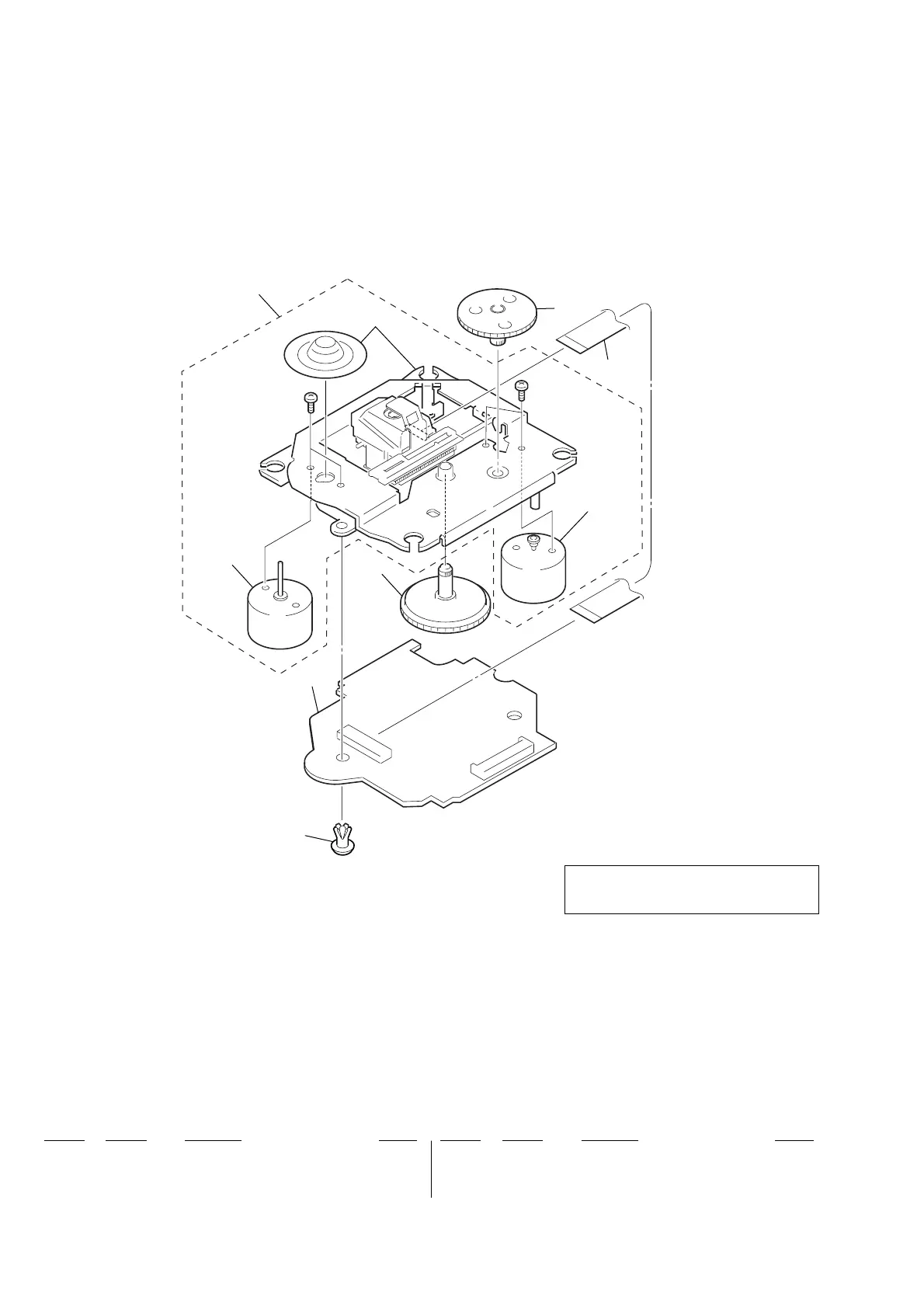

7-5. BASE UNIT SECTION
(BU-30BD60)
not supplied
not supplied
556
552
551
555
553
not supplied
#5
#5
557
551 3-531-576-11 RIVET
552 A-4725-531-A BD BOARD, COMPLETE
553 4-233-832-01 GEAR (LB)
555 4-233-831-01 GEAR (LA)
556 1-757-710-11 WIRE (FLAT TYPE) (16 CORE)
0 557 A-4735-188-A BU-30 (60) ASSY
