HCD-DX80

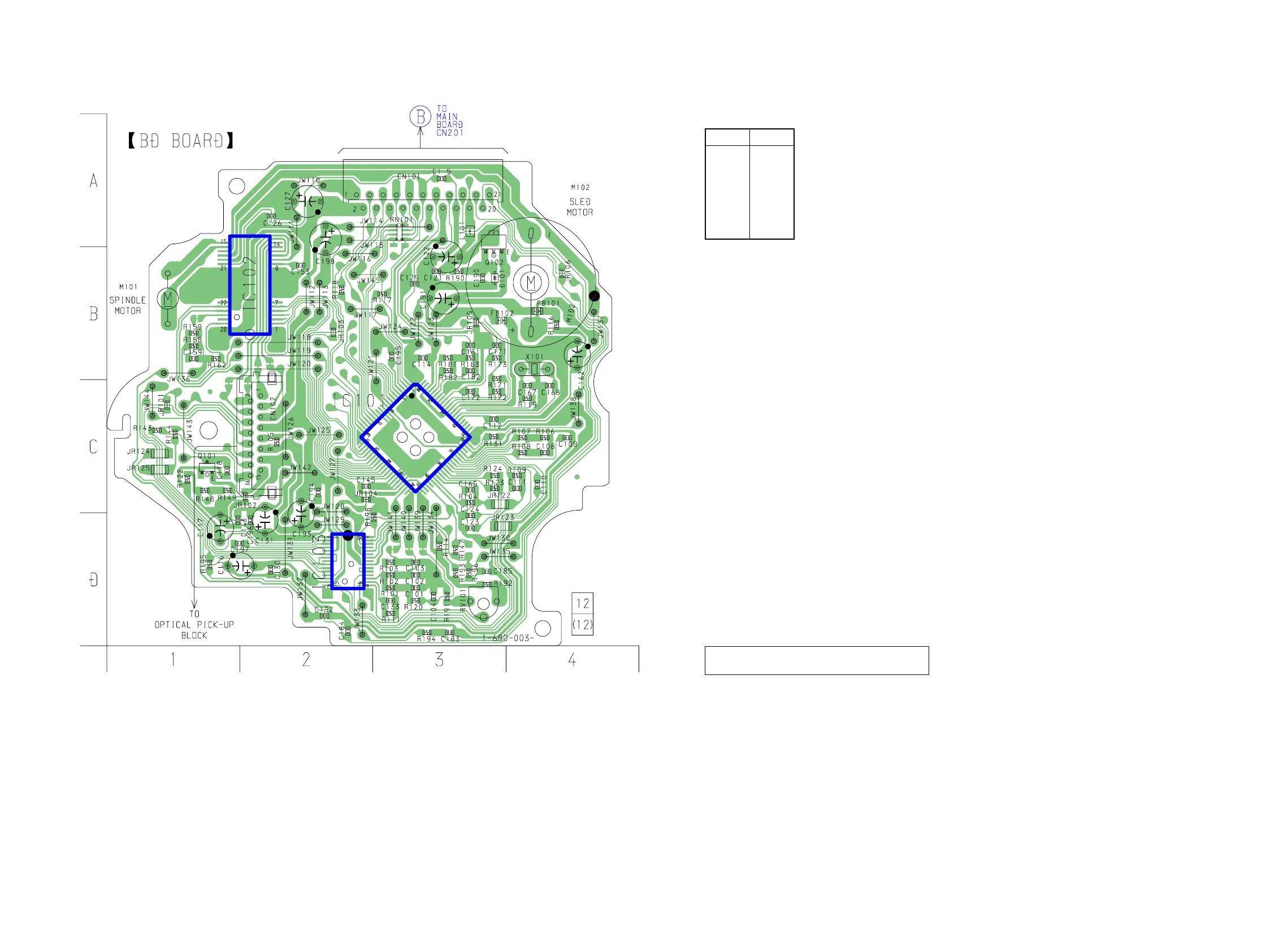

6-5. PRINTED WIRING BOARD – BD Board –
• See page 23 for Circuit Boards Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
Ref. No. Location
D101 B-3
IC101 C-3
IC102 B-2
IC103 D-2
Q101 C-1
Q102 A-3
• Semiconductor
Location
(Page 30)
