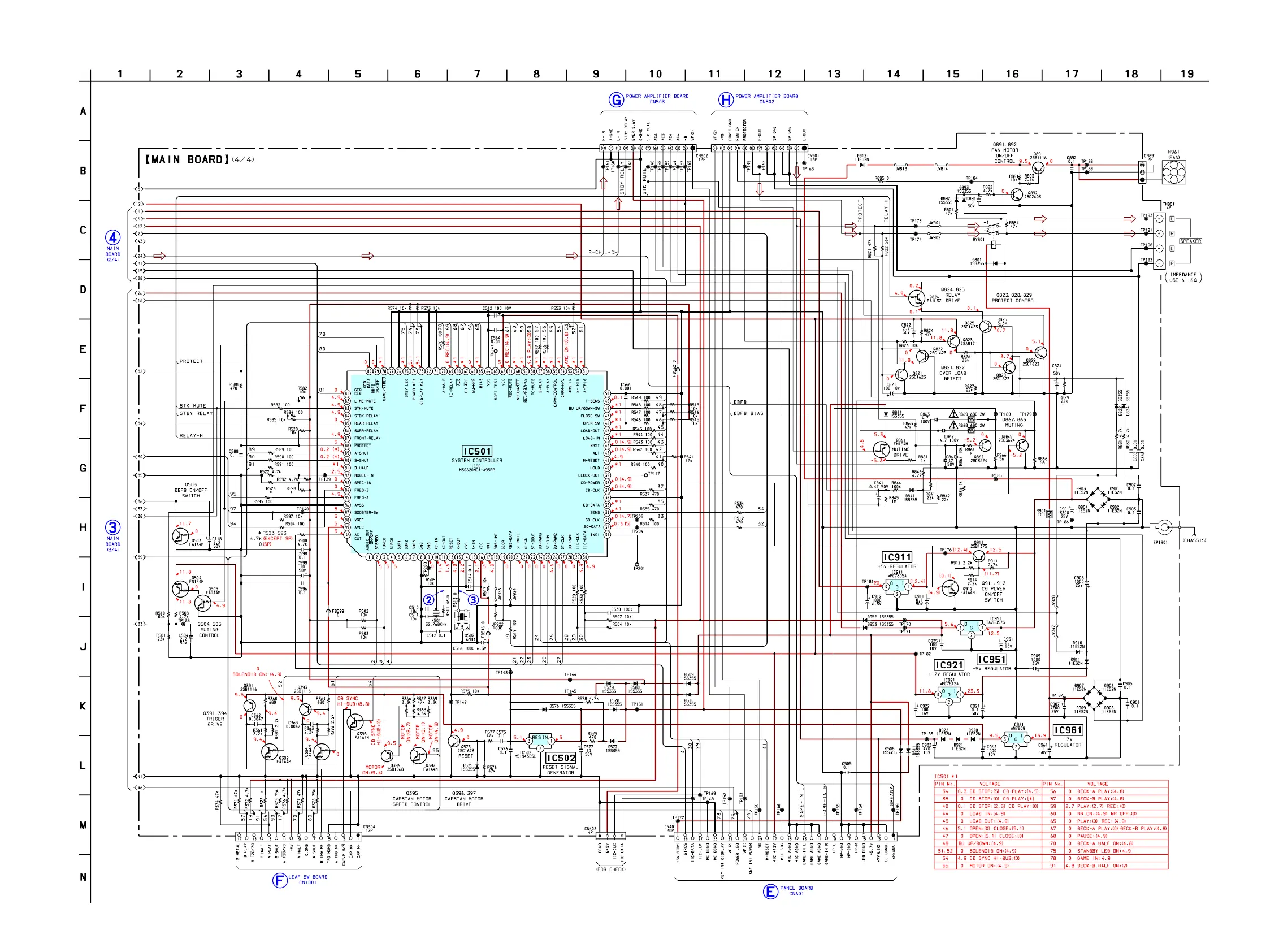

6-9. SCHEMATIC DIAGRAM – MAIN Board (4/4) –
• See page 31 for Waveforms. • See page 47 for IC Pin Function Description.
(Page
28)
(Page
27)
(Page 38)
(Page 34)
(Page 32) (Page 32)
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
( ) : TAPE
[ ] : CD
