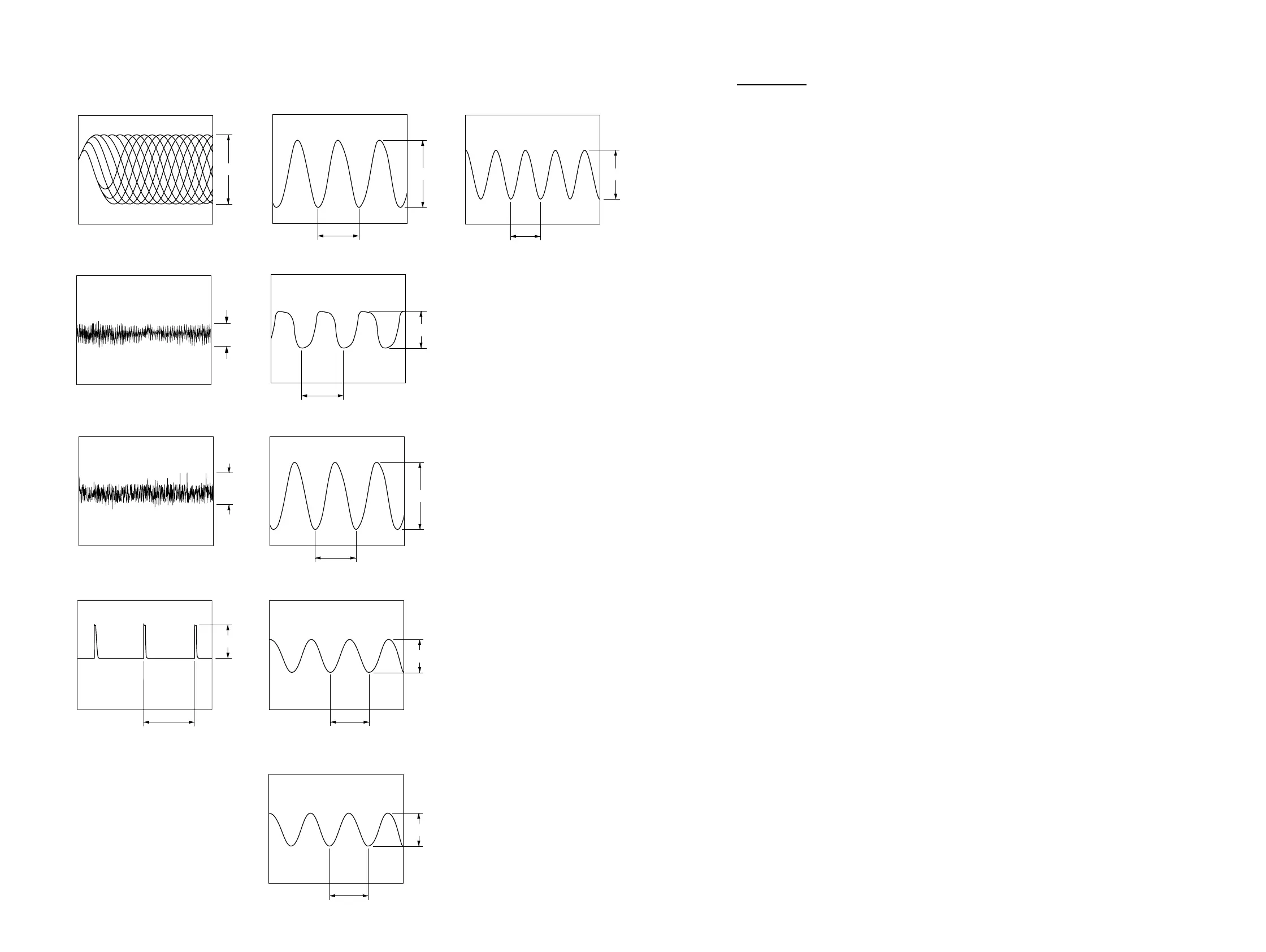

• Waveforms
– BD Board –
1 IC101 ta (RFAC) (CD Play mode) 6 IC601 is (X OUT) (Stop mode)
1.1 Vp-p
– PANEL Board –
3.5 Vp-p
4 MHz
– MAIN Board –
2 IC501 qa (XC OUT) (Stop mode)
3.1 Vp-p
32.768 kHz
2 IC101 ra (TE) (CD Play mode)
Approx.
0.4 Vp-p
3 IC501 qd (X OUT) (Stop mode)
3.8 Vp-p
16 MHz
3 IC101 el (FE) (CD Play mode)
Approx.
0.3 Vp-p
1 IC51 ws TUNER (FM)
4.3 Vp-p
4.5 MHz
4 T301 4 (DECK-B REC mode)
128 Vp-p
80 kHz
5 NO303 3 (L-REC), 6 (R-REC)
(DECK-B REC mode)
52 Vp-p
80 kHz
4 IC101 wh (MDP)
2.5 Vp-p
7.5 µs
