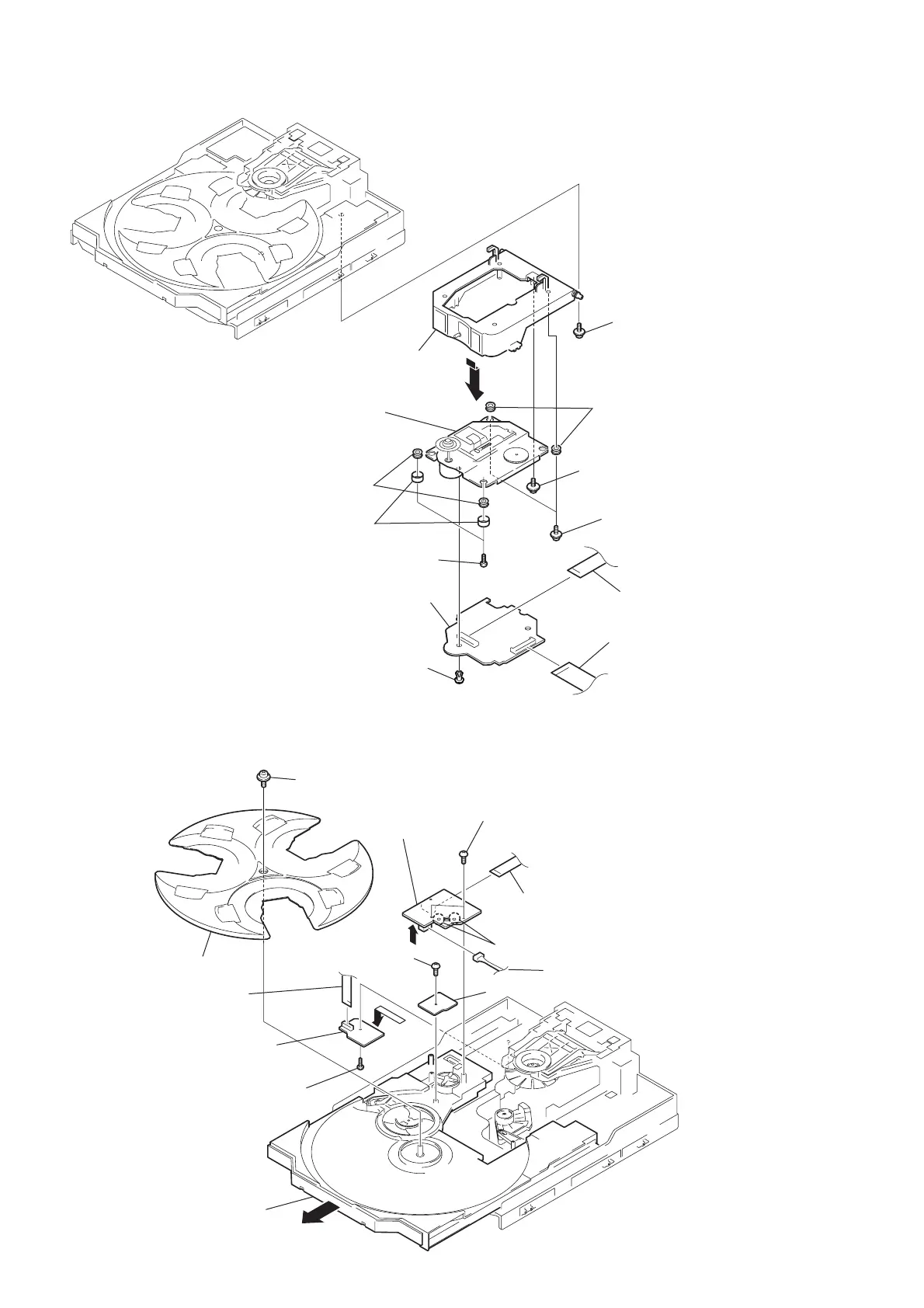

2-10. BASE UNIT (BU-30BD60)
2-11. DRIVER BOARD, MOTOR BOARD, ADDRESS SENSOR BOARD
qa
9 two screws (+PTPWH M2.6)
1 screw (+PTPWH M2.6)
q; screws (DIA. 12)
7 two screws (+BVTP 2.6 × 8)
6 BD board
5 rivet
qs two insulators (BU-30)
2 holder assy
qs two insulators (BU-30)
8 two stoppers (BU)
4 wire (flat type)
(16 core)
(CN102)
qd base unit
(BU-30BD60)
3 wire (flat type)
(21 core)
(CN101)
qa Pull-out the disc tray.
6 two screws (+BVTP 2.6 × 8)
qs screw (+PTPWH 2.6 × 8)
qd tray
1 s crew (+BVTP 2.6 × 8)
qf screw (+BVTP 2.6 × 8)
7
0
MOTOR board
qg ADDRESS SENSOR board
4 driver board
2
5 Remove the two solderings of motor.
9 connector
3 wire (flat type)
(8 core)
(CN702)
8 wire (flat type)
(8 core)
(CN721)
