HCD-SLK10D/SLK20D
5
NOTE OF THE OPERATION CONFIRMING
When you confi rm the operation of this unit that has been disas-
sembled, confi rm operation after connecting the FAN motor with
MAIN board.
This unit enters the state of protecting if the power supply of this
unit is turned on without connecting the FAN motor.
HOW TO EJECT THE DISC WHEN POWER SWITCH TURNS OFF
Note: Please take out the DVD mechanism block from a set referring to “SECTION 2 DISASSEMBLY”.

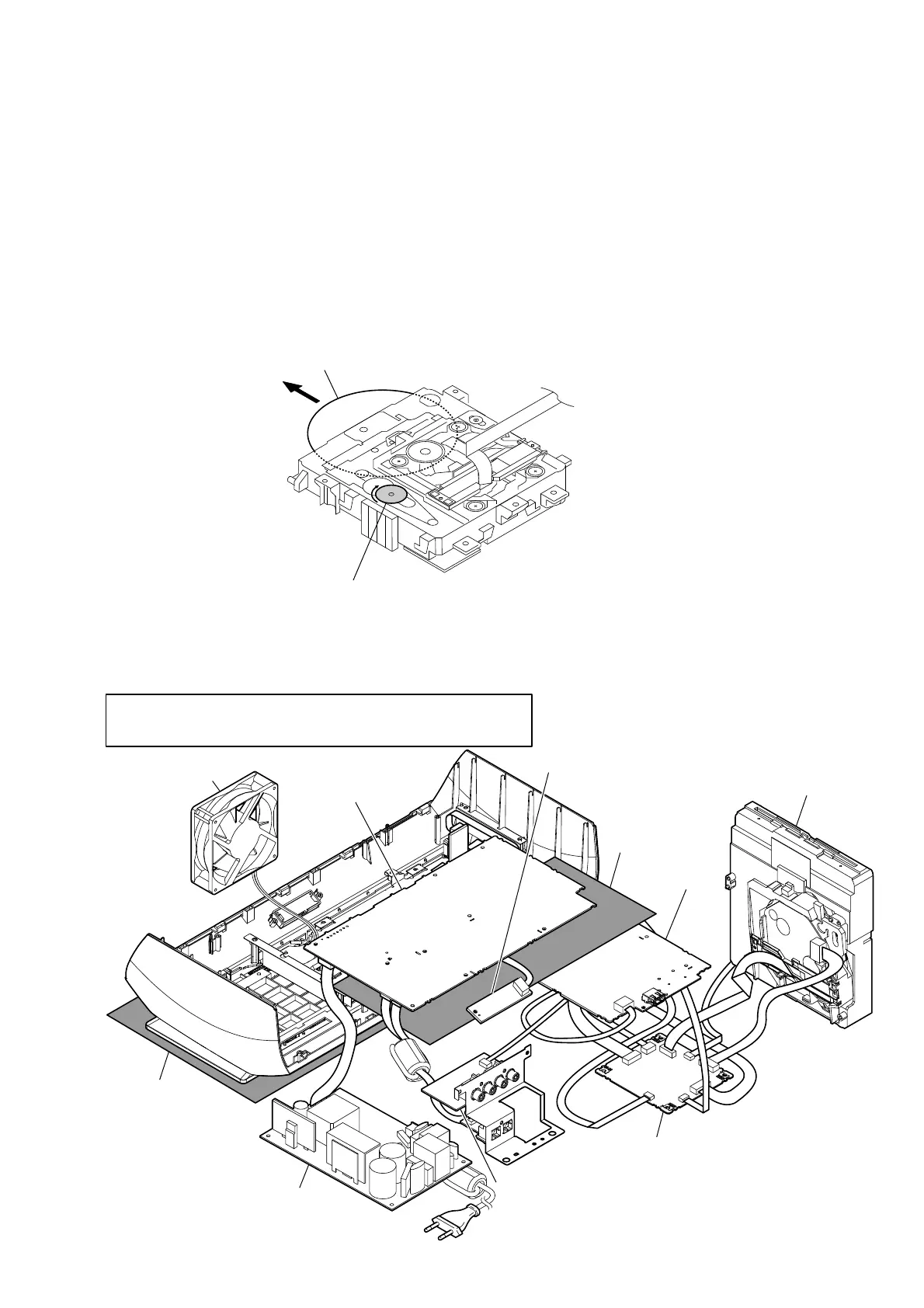

Please rotate the pully in the direction of the arrow and eject the disc.
disc
– DVD mechanism block bottom view –
MAIN BOARD SERVICE POSITION
Note:
Do not insert
the wire (flat type)
in the same amount of connector by mistake.
Refer to “2-21. HOW TO BEND WIRE (FLAT TYPE)” (page 24) and “5-1.
FLAME PRINTED WIRING BOARDS”
(page 31) for details.
FAN motor
– Rear bottom view –
insulating sheet
insulating sheet
DISPLAY board
DMB19 board
LOGO board
MAIN board
JACK board
switching regulator
DVD mechanism deck
(CDM86S-DVBU101)
To Next Page
