HCD-SLK10D/SLK20D
6

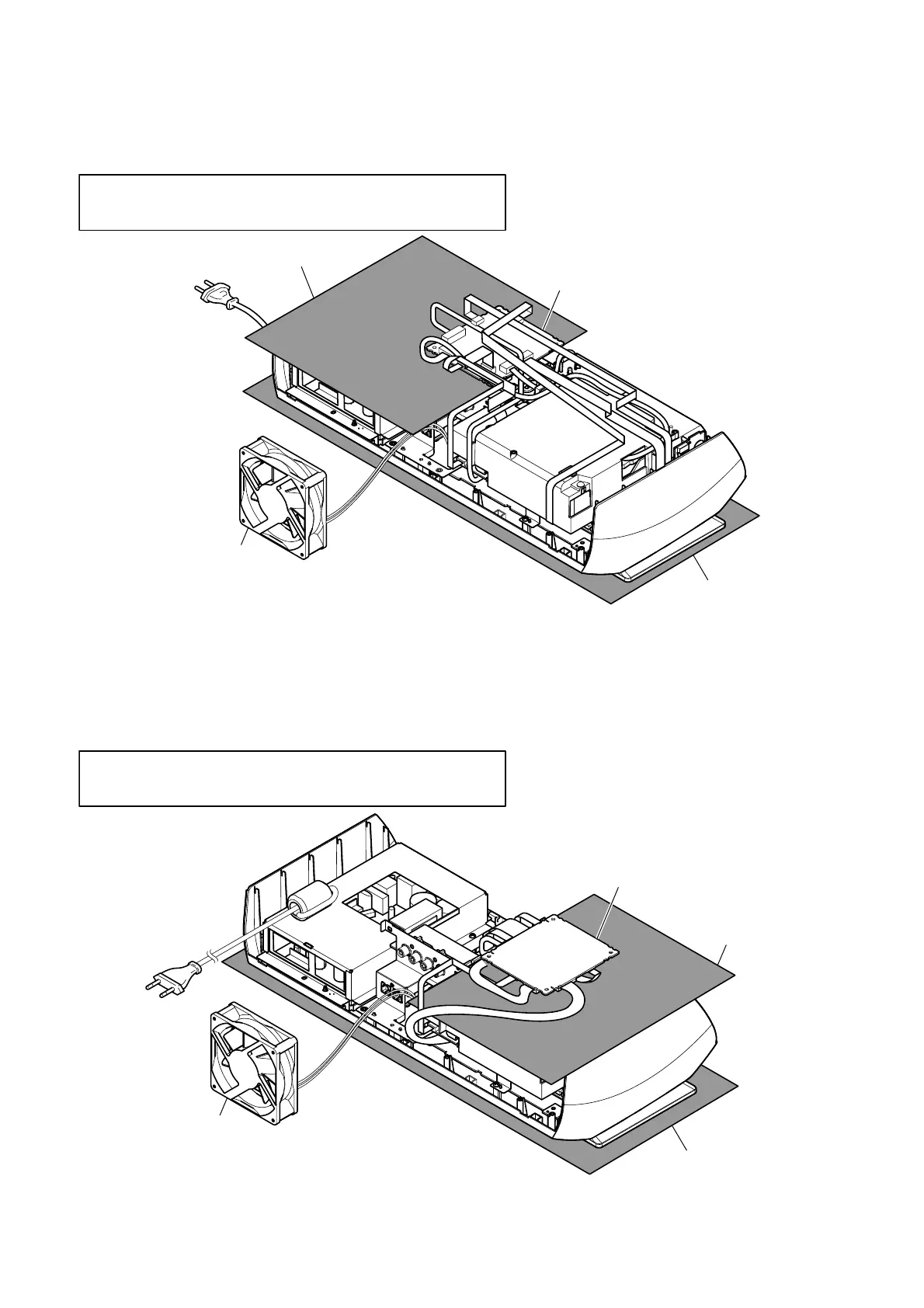

DMB19 BOARD (SIDE B) SERVICE POSITION
– Rear bottom view –
insulating sheet
DMB19 board
insulating sheet
FAN motor
Note:
Do not insert
the wire (flat type)
in the same amount of connector by mistake.
Refer to “2-21. HOW TO BEND WIRE (FLAT TYPE)” (page 24) and “5-1.
FLAME PRINTED WIRING BOARDS”
(page 31) for details.
DMB19 BOARD (SIDE A) SERVICE POSITION
– Rear bottom view –
insulating sheet
DMB19 board
insulating sheet
FAN motor
Note:
Do not insert
the wire (flat type)
in the same amount of connector by mistake.
Refer to “2-21. HOW TO BEND WIRE (FLAT TYPE)” (page 24) and “5-1.
FLAME PRINTED WIRING BOARDS”
(page 31) for details.
