HCD-SLK10D/SLK20D
7

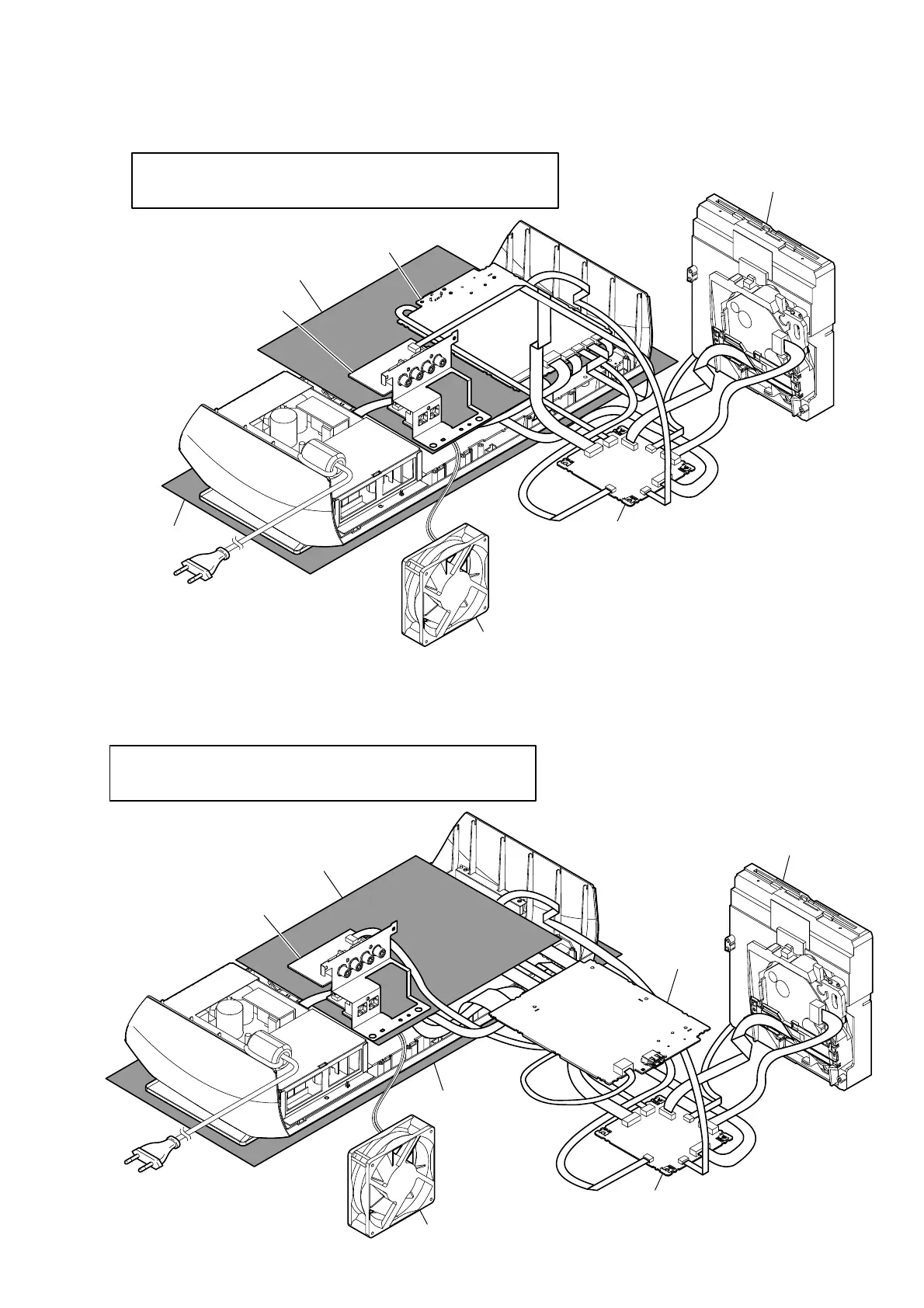

DVD MECHANISM DECK, DISPLAY BOARD (SIDE A) SERVICE POSITION
DISPLAY BOARD (SIDE B) SERVICE POSITION
Note:
Do not insert
the wire (flat type)
in the same amount of connector by mistake.
Refer to “2-21. HOW TO BEND WIRE (FLAT TYPE)” (page 24) and “5-1.
FLAME PRINTED WIRING BOARDS”
(page 31) for details.
FAN motor
– Rear bottom view –
insulating sheet
insulating sheet
DISPLAY board
JACK board
DMB19 board
DVD mechanism deck
(CDM86S-DVBU101)
Note:
Do not insert
the wire (flat type)
in the same amount of connector by mistake.
Refer to “2-21. HOW TO BEND WIRE (FLAT TYPE)” (page 24) and “5-1.
FLAME PRINTED WIRING BOARDS”
(page 31) for details.
FAN motor
– Rear bottom view –
insulating sheet
insulating sheet
DISPLAY board
JACK board
DMB19 board
DVD mechanism deck
(CDM86S-DVBU101)
