Sony hcd-vx888 - MOTOR Board, ADDRESS SENSOR Board

13
HCD-VX888

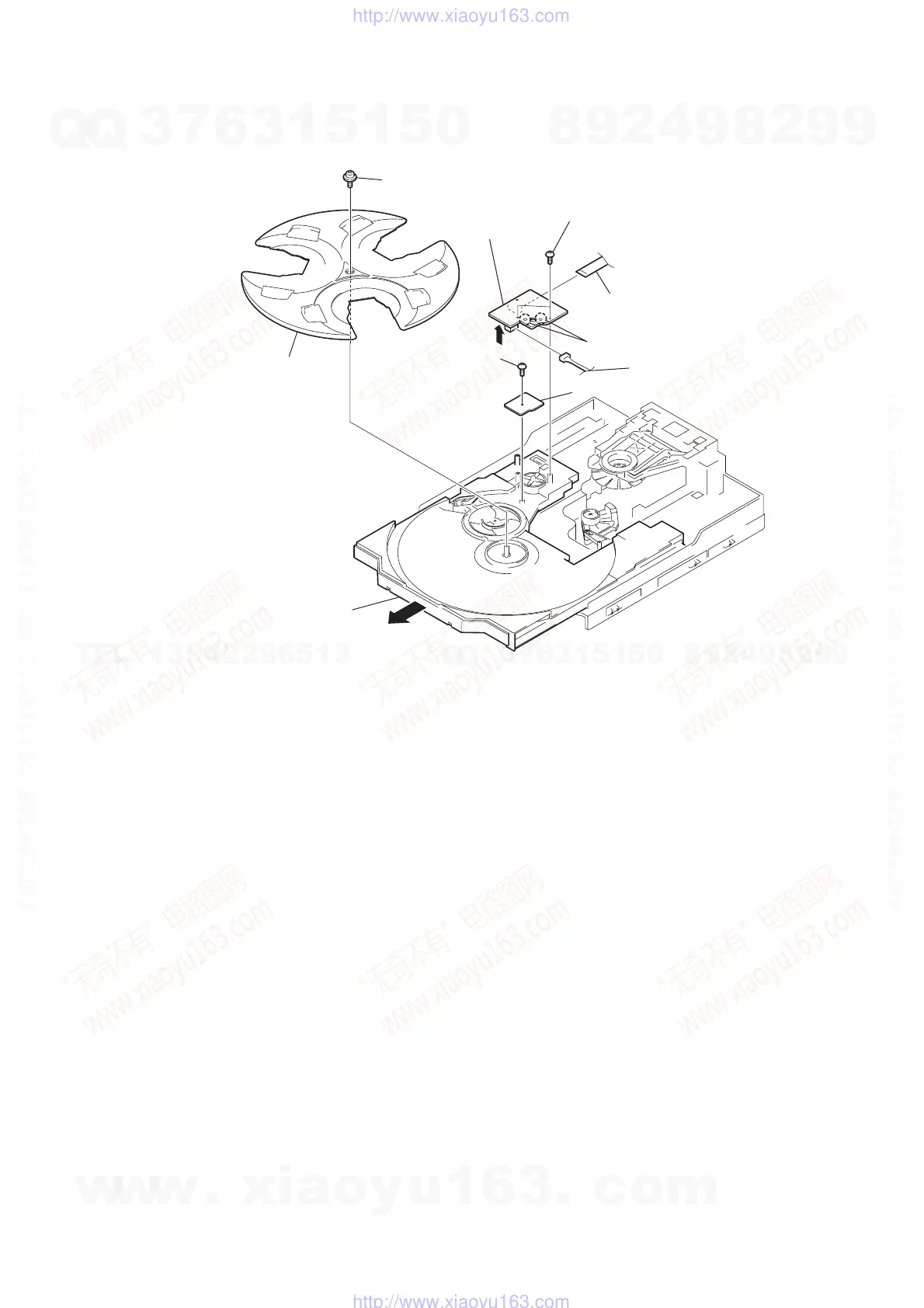

2-12. MOTOR BOARD, ADDRESS SENSOR BOARD
7 Pull-out the disc tray.
2 two screws (+BVTP 2.6 × 8)
8 screw (+PTPWH 2.6 × 8)
9 tray
0 screw (+BVTP 2.6 × 8)
3
6
MOTOR board
qa ADDRESS SENSOR board
1 Remove the two solderings of motor.
5 connector
4 wire (flat type)
(8 core)
(CN721)
