Sony hcd-vx888 - Schematic Diagram - MAIN Board (1;4)

HCD-VX888
3030

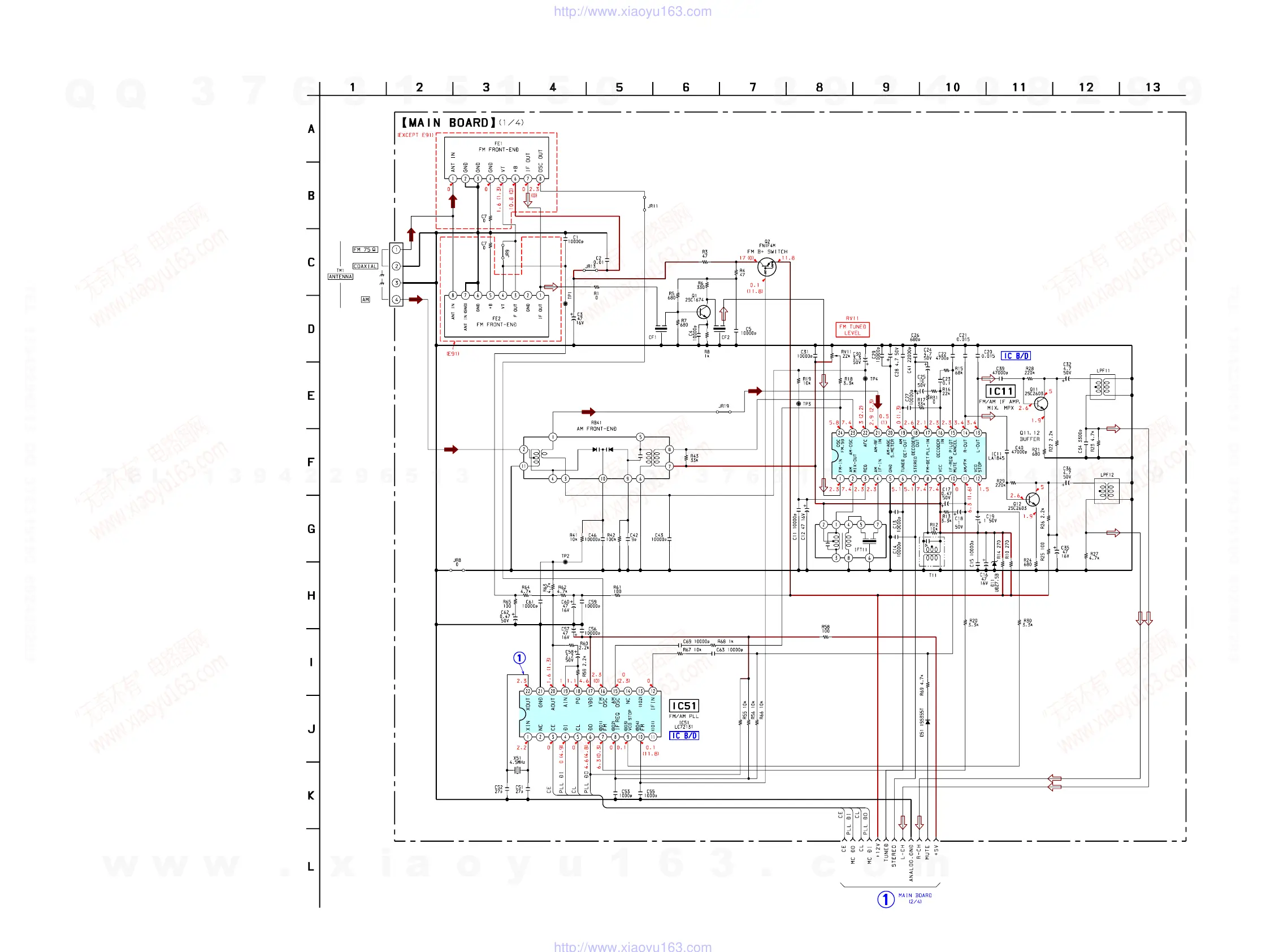

6-8. SCHEMATIC DIAGRAM – MAIN Board (1/4) – • See page 50 for Wavefoms. • See page 51 for IC Block Diagram.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
• no mark : FM
( ) : AM
(Page 31)
