Sony hcd-vx888 - Printed Wiring Board - BD Board

2929
HCD-VX888

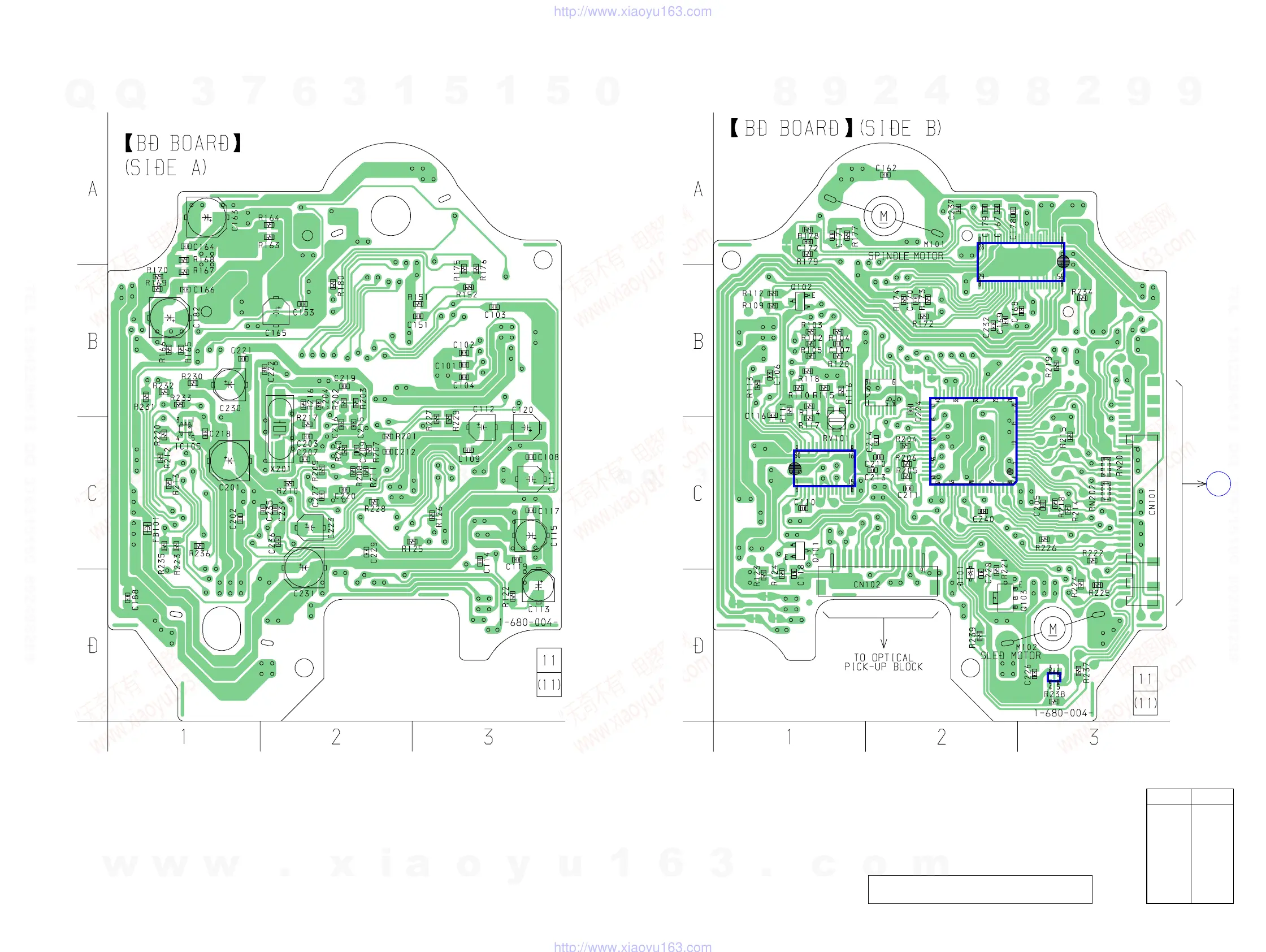

6-7. PRINTED WIRING BOARD – BD Board –• See page 27 for Circuit Boards Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
• Semiconductor
Location
Ref. No. Location
D101 D-2
IC101 C-2
IC102 A-3
IC103 C-1
IC106 D-3
Q101 C-1
Q103 D-3
IC101
IC104
IC103
IC106
IC102
VIDE0
BOARD
CN501
(A-MAX.3)
25
N
(Page 47)
