Sony hcd-vx888 - Schematic Diagram - VIDEO Board (1;3)

4444
HCD-VX888

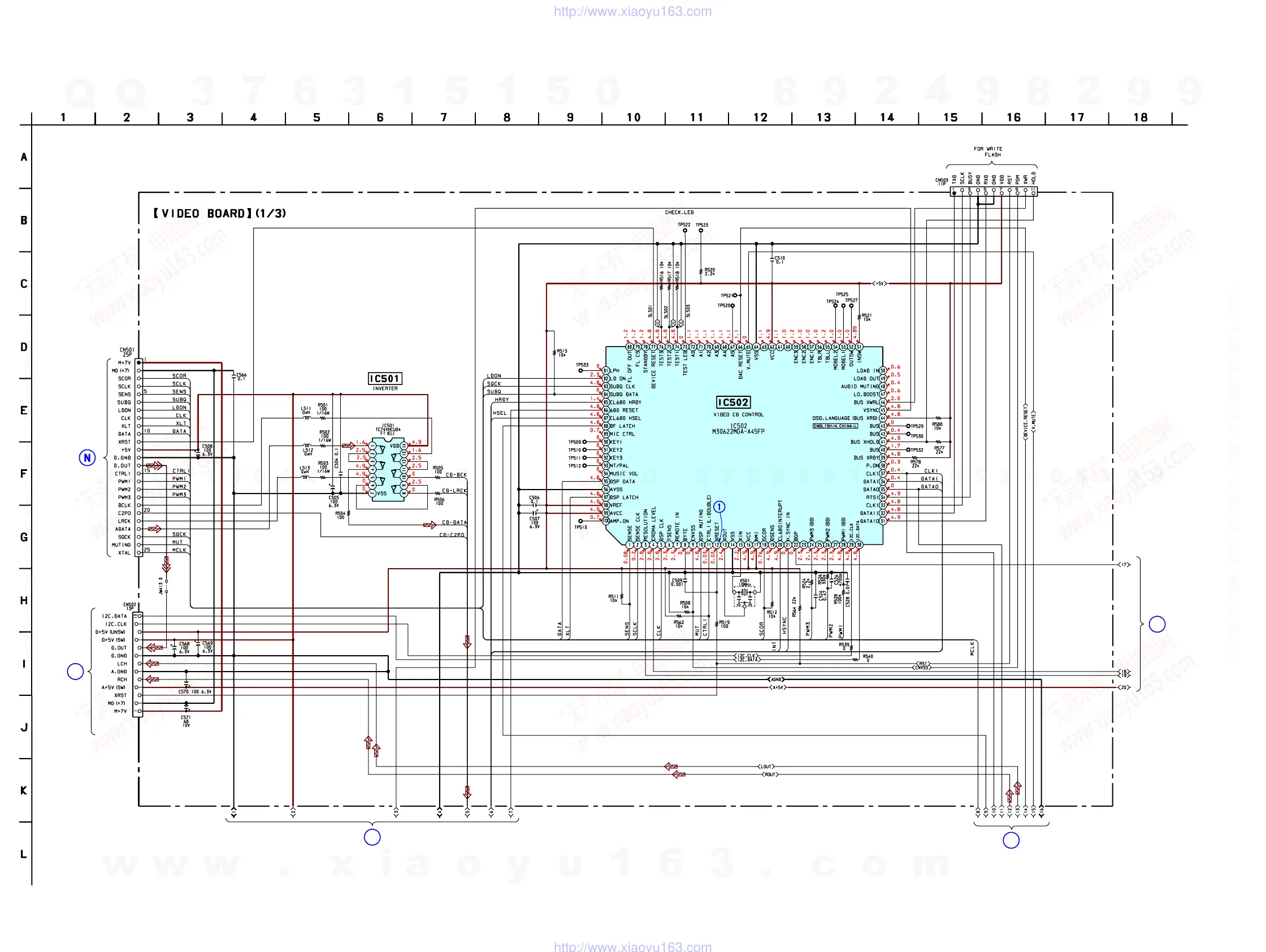

6-26. SCHEMATIC DIAGRAM – VIDEO Board (1/3) – • See page 50 for Waveforms. • See page 55 for IC Pin Function Description.
BD BOARD
CN101
1
VIDEO BOARD
(2/3)
2
VIDEO BOARD
(3/3)
3
VIDEO
BOARD
(3/3)
B
MAIN
BOARD (2/4)
CN201
(Page 28)
(Page 31)
(Page 45)
(Page 46)
(Page 46)
