HCD-VX888
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

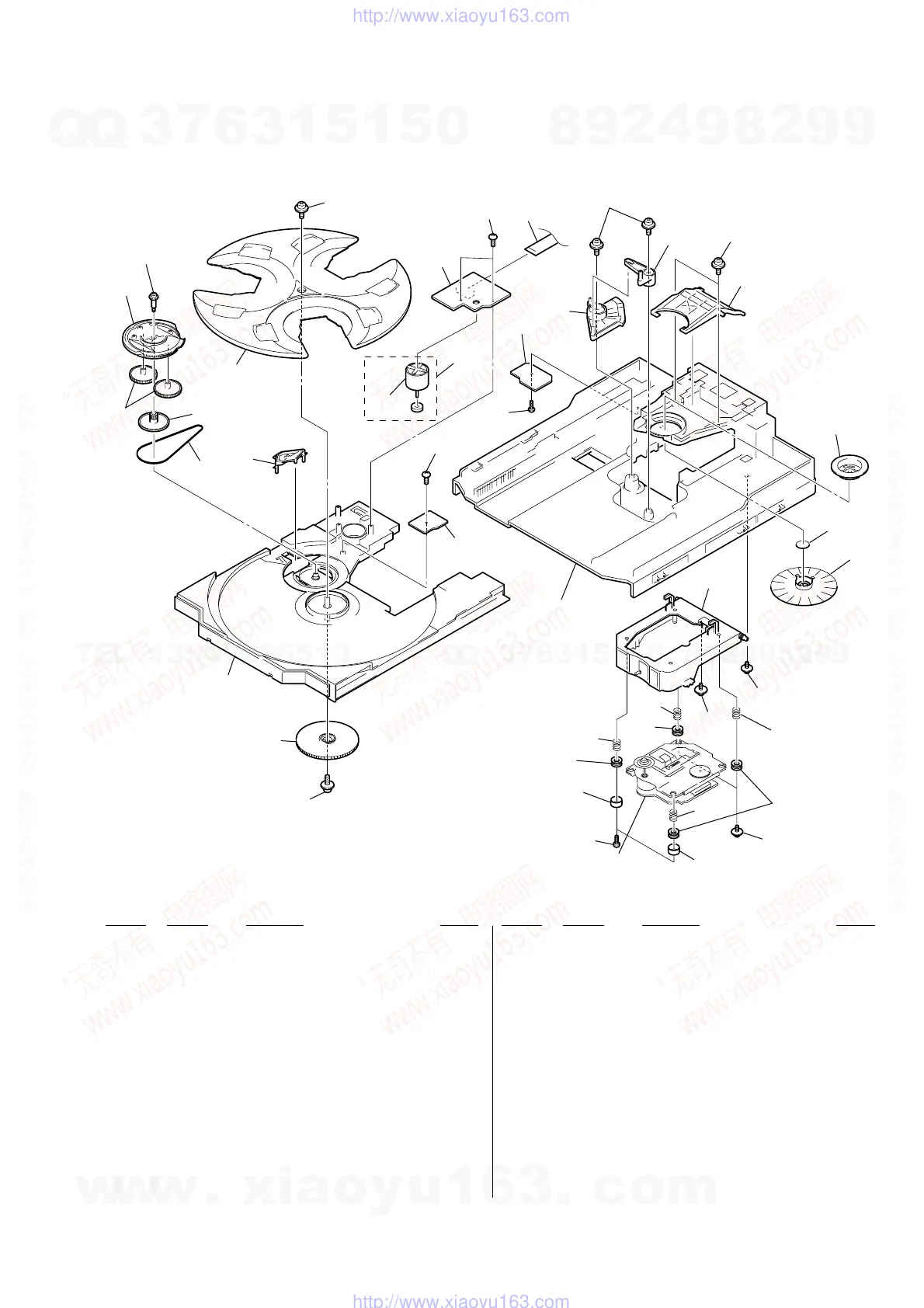

7-4. CD MECHANISM DECK SECTION
(CDM58E-30BD61A)
not supplied
BU-30BD61A
501
502
503
504
505
506
524
525
526
519
507
509
508
535
508
508
510
511
512
513
501
514
521
515
518
529
521
534
517
516
521
520
520
520
520
533
533
533
508
M721
532
534
501 4-933-134-11 SCREW (+PTPWH M2.6X8)
502 4-221-679-01 CAM (RELAY)
503 4-231-452-01 TABLE (NEW)
504 4-221-686-01 LEVER (CHANGE)
505 4-221-676-02 TRAY
506 4-933-134-51 SCREW (+PTPWH 2.6X8)
507 1-675-910-14 MOTOR BOARD
508 4-951-620-01 SCREW (2.6X8), +BVTP
509 1-791-983-12 WIRE (FLAT TYPE) (8 CORE)
510 1-675-911-14 ADDRESS SENSOR BOARD
511 1-675-912-14 DRIVER BOARD
512 X-4952-608-3 CAM (U/D) ASSY
513 4-221-681-01 LEVER (EX)
514 4-221-682-01 LEVER (LIFTER)
515 4-231-513-01 PULLEY (B) (BU-30), CHUCKING
516 4-228-414-01 BRACKET (YOKE)
517 X-4953-307-1 PULLEY (A) ASSY, CHUCKING
518 X-4953-306-1 HOLDER (BU) (BU-30) ASSY
519 4-222-095-01 BELT
520 4-227-045-11 SPRING (INSULATOR), COIL
521 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
524 4-221-678-06 CAM (CONTROL)
525 4-221-683-01 GEAR (U)
526 4-221-685-01 PULLEY (S)
529 4-227-899-01 SCREW (DIA. 12), FROATING
532 4-222-097-01 SCREW, STEP
533 4-231-451-01 INSULATOR (BU-30)
534 4-231-151-01 STOPPER (BU)
535 1-541-632-12 MOTOR, DC (TURN)
M721 A-4672-826-A MOTOR ASSY (TURN)
