HCD-VX888

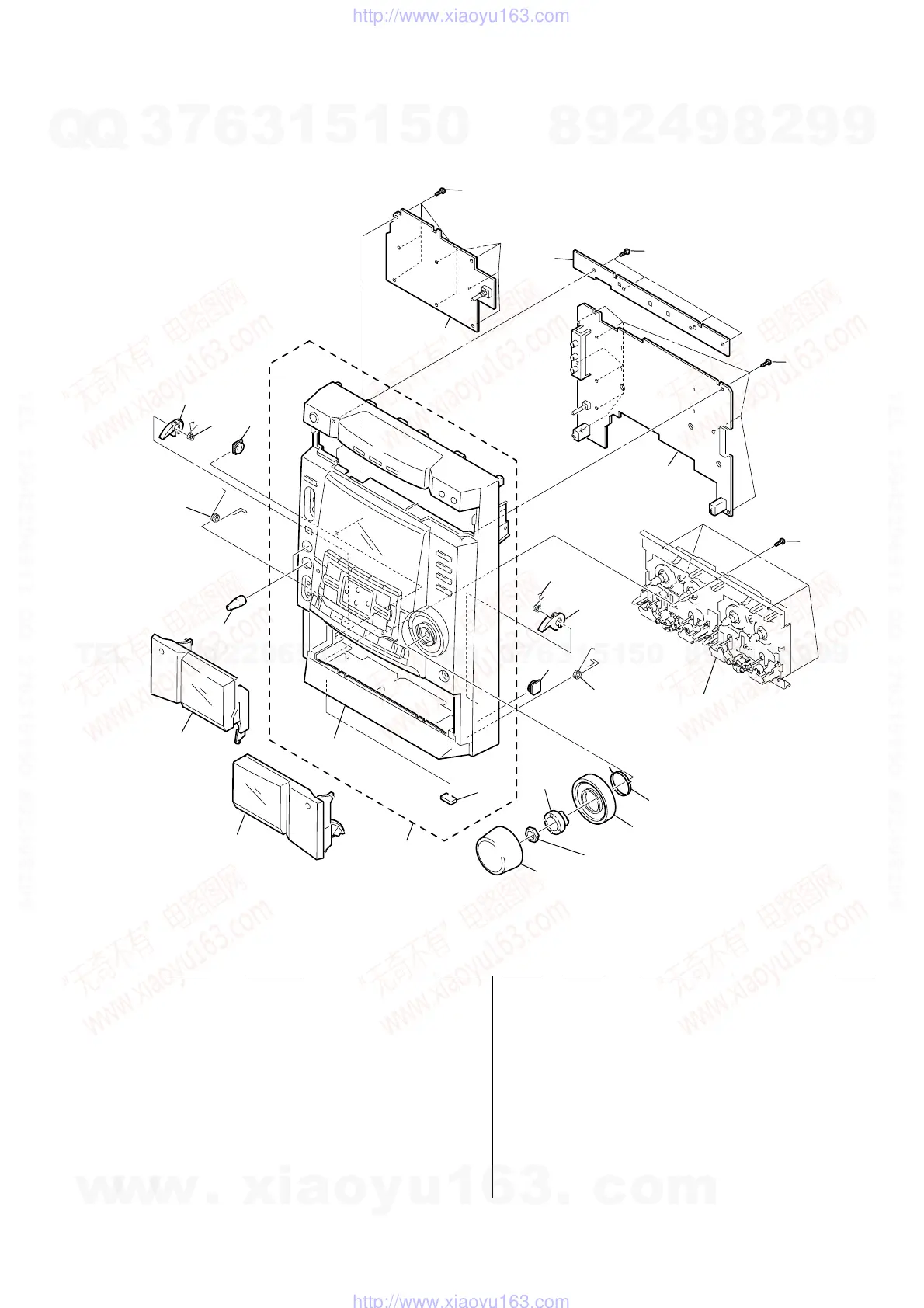

7-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 X-4953-360-1 CASSETTE HOLDER (L) ASSY
52 X-4953-412-1 CASSETTE HOLDER (R) ASSY
53 4-231-571-01 KNOB (VOLUME)
54 A-2007-995-A PAD SWITCH BOARD, COMPLETE (IA)
54 A-4476-103-A PAD SWITCH BOARD, COMPLETE
(E3, EA, SP2/6)
54 A-4725-803-A PAD SWITCH BOARD, COMPLETE (E91)
57 X-4953-537-1 FRONT PANEL ASSY
60 4-224-104-11 DAMPER
61 4-231-836-01 SPRING (HEART CAM-A)
62 4-231-841-01 SPRING (HEART CAM-B)
64 4-231-587-01 SPRING R
66 A-4476-126-A PANEL BOARD, COMPLETE (E3, EA, SP2/6)
66 A-2007-986-A PANEL BOARD, COMPLETE (IA)
66 A-4725-782-A PANEL BOARD, COMPLETE (E91)
67 4-951-620-01 SCREW (2.6X8), +BVTP
68 4-231-805-01 KNOB (MIC)
69 4-231-586-01 SPRING L
70 4-225-252-01 CUSHION (FOOT)
71 1-680-263-11 CD-SW BOARD
72 4-225-531-01 BRACKET (RING)
73 4-231-589-01 RING (FR)
74 4-224-800-01 SPRING (JOG, TORSION)
51
52
53
69
57
70
72
64
66
67
61
60
60
62
TCM-230AWR41
68
74
73
67
67
67
not supplied
not supplied
not supplied
not supplied
54
71
