HCD-VX888

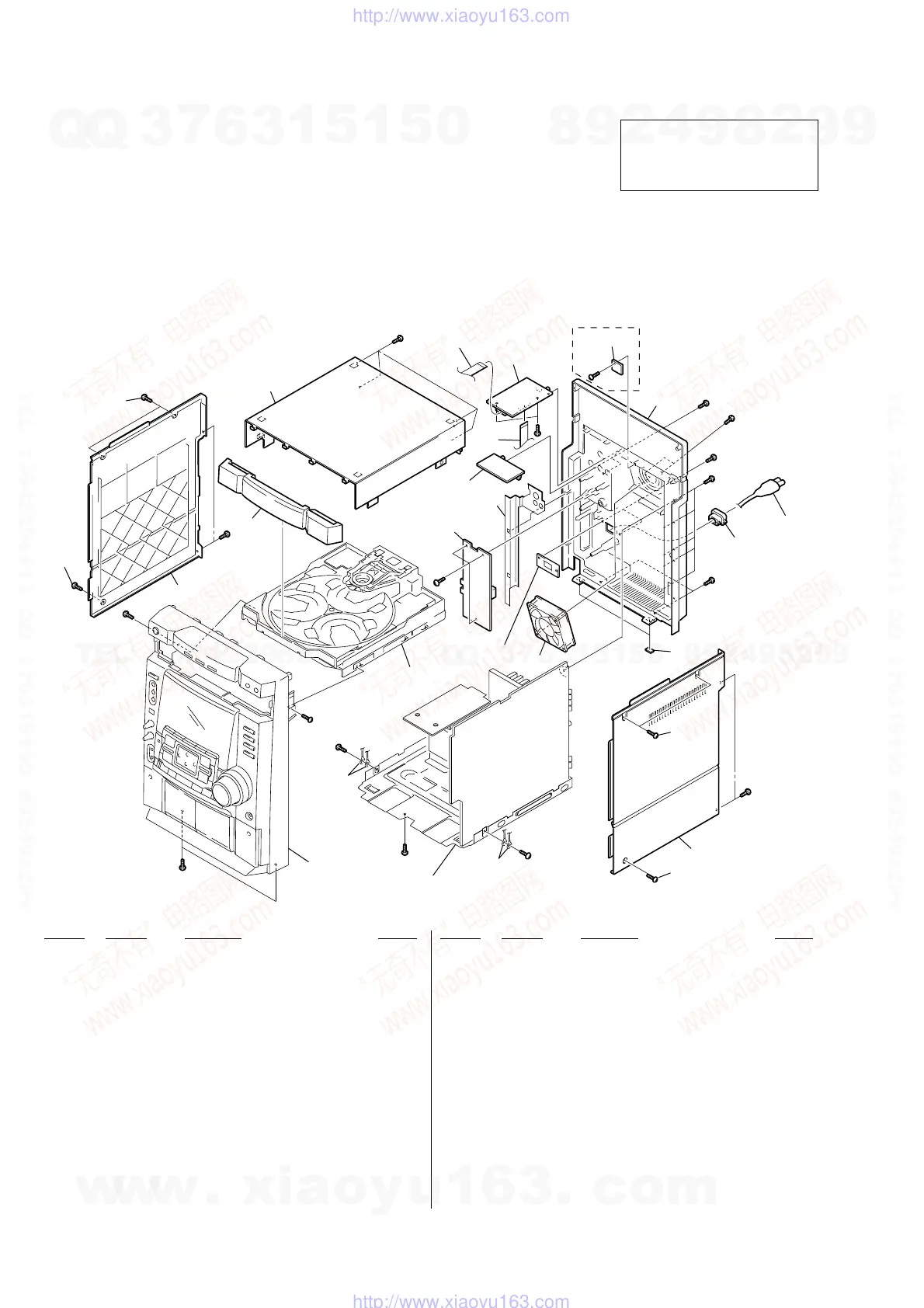

7-1. CABINET SECTION
SECTION 7
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
• Hardware (# mark) list is given in the last of
the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
E3 : 240 V AC Area in E model
E91 : 220 V AC Area in E model
EA : Saudi Arabia model
IA : Indonesia model
SP2/6: Malaysia, Singapore model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
CDM58E-30BD61A
#1
#1
#1
#1
#1
#1
E91, IA
#1
not
supplied
#1
#2
#1
#1
#1
#1
#1
#1
#1
#1
4
3
5
2
2
2
2
6
Front Panel section
Main board section
M961
1
8
17
13
9
10
12
11
15
14
16
not
supplied
not
supplied
1 4-225-252-01 CUSHION (FOOT)
2 3-363-099-41 SCREW (CASE 3 TP2)
3 4-225-038-22 SIDE PANEL (L) (EXCEPT IA)
3 4-225-038-32 SIDE PANEL (L) (IA)
4 4-231-563-51 LOADING PANEL (EXCEPT E91)
4 4-231-563-91 LOADING PANEL (E91)
5 4-225-039-72 SIDE PANEL (R) (EXCEPT IA)
5 4-225-039-82 SIDE PANEL (R) (IA)
6 4-224-550-01 CASE (TOP) (IA)
6 4-224-550-41 CASE (TOP) (EXCEPT IA)
8 4-232-028-21 BACK PANEL (EXCEPT E91)
8 4-232-028-41 BACK PANEL (E91)
9 1-681-143-11 SENSOR BOARD (E91, IA)
10 1-680-892-11 VIDEO SWITCH BOARD
11 4-233-148-01 GROUND PLATE
12 A-4476-114-A SUB TRANS BOARD, COMPLETE
(E3, EA, SP2/6)
12 A-4476-773-A SUB TRANS BOARD, COMPLETE (IA)
12 A-4725-809-A SUB TRANS BOARD, COMPLETE (E91)
013 1-757-852-11 CORD, CONNECTION
14 A-4725-689-A VIDEO BOARD, COMPLETE (EA, SP2/6, E3)
14 A-4725-691-A VIDEO BOARD, COMPLETE (IA)
14 A-4725-771-A VIDEO BOARD, COMPLETE (E91)
15 1-690-589-31 WIRE (FLAT TYPE) (13 CORE) (EXCEPT E91)
15 1-769-987-11 WIRE (FLAT TYPE) (13 CORE) (E91)
16 1-757-421-11 WIRE (FLAT TYPE) (25 CORE)
17 3-703-571-11 BUSHING (S) (4516), CORD (E3)
17 4-966-266-01 BUSHING (S) (FBS002), CORD (IA)
17 3-703-244-00 BUSHING (2104), CORD (EA, SP2/6, E91)
M961 1-763-072-11 FAN, D.C.
