Sony ICP-X7000

252
Applying the Ripple effect
1 In the <Mode> group of the Non Linear >Ripple menu
(4141.5), select the ripple modulation mode.
Radial: Points on radii of the same length from the
center of the ripples behave in the same way.
Angular: Points at the same angle from the center of
the ripples behave in the same way.
Both: Radial and Angular ripples are applied
simultaneously.
Shape: The ripples can have shapes such as stars or
hearts, in addition to circles.
2 Set the following parameters, according to the selected
modulation mode.
When [Radial] is selected
When [Angular] is selected
When [Both] is selected
When [Shape] is selected
a) Set when [Lock] is enabled.
b) Set when [Lock] is disabled.
c) 1 (Circle): Circular shape
2 (Rectangle): Rectangular shape
3 (Star): Star shape
4 (Heart): Heart shape
No. Parameter Adjustment
1 Amp R Amplitude of ripple along radius
2 Freq R Frequency of ripple along radius
3 Offset R
a)
Phase shift direction and offset of
ripple along radius
4 Speed R
b)
Direction of travel and speed of
ripple along radius
5 Amp A Amplitude of ripple along
circumference
No. Parameter Adjustment
1 Amp A Amplitude of ripple along
circumference

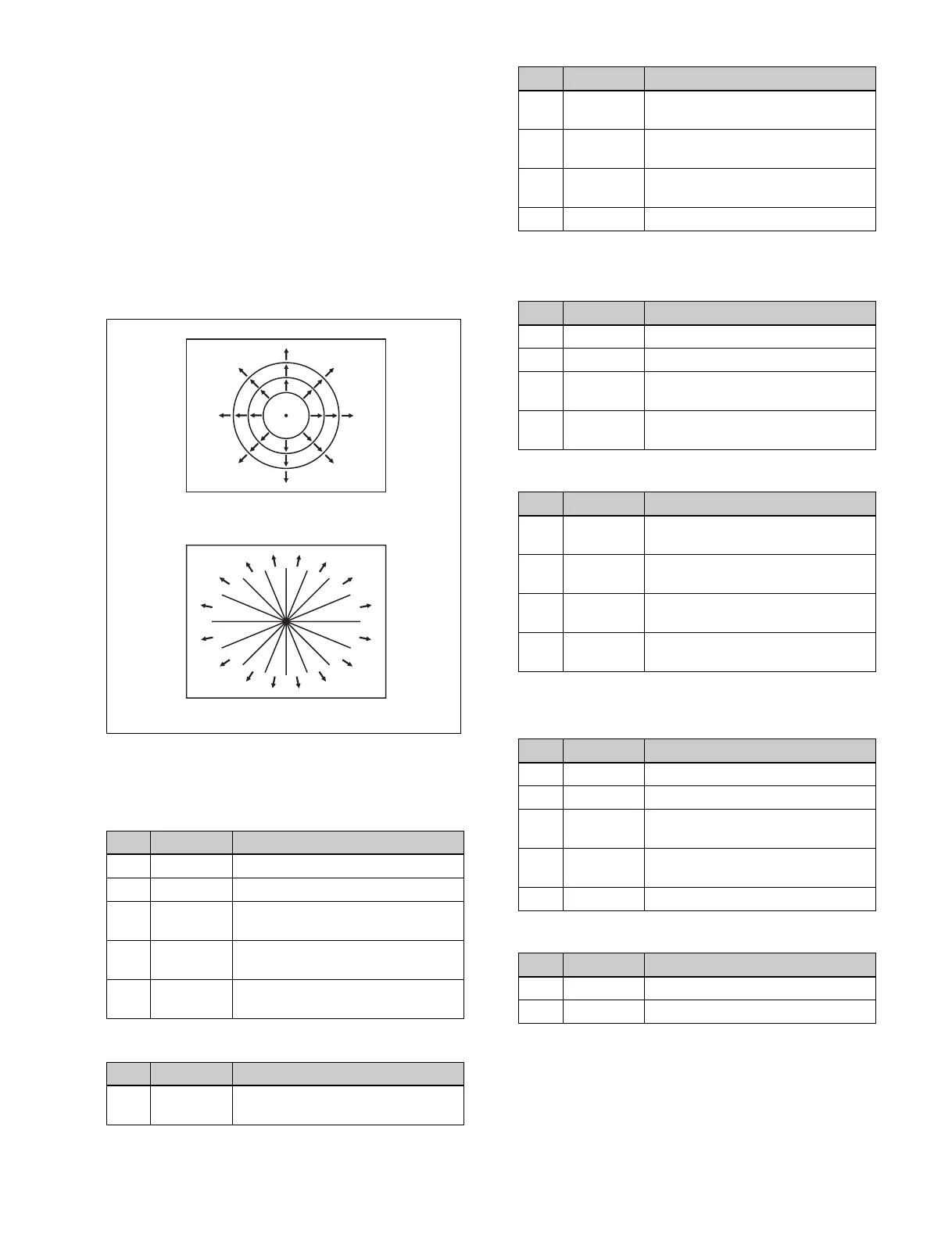

Modulation along radii (Radial mode)
Modulation along circumference (Angular mode)
2 Freq A Frequency of ripple along
circumference
3 Offset A
a)
Phase shift direction and offset of
ripple along circumference
4 Speed A
b)
Direction of travel and speed of
ripple along circumference
5 Amp R Amplitude of ripple along radius
Parameter group [1/2]
No. Parameter Adjustment
1 Amp R Amplitude of ripple along radius
2 Freq R Frequency of ripple along radius
3 Offset R
a)
Phase shift direction and offset of
ripple along radius
4 Speed R
b)
Direction of travel and speed of
ripple along radius
Parameter group [2/2]
No. Parameter Adjustment
1 Amp A Amplitude of ripple along
circumference
2 Freq A Frequency of ripple along
circumference
3 Offset A
a)
Phase shift direction and offset of
ripple along circumference
4 Speed A
b)
Direction of travel and speed of
ripple along circumference
Parameter group [1/2]
No. Parameter Adjustment
1 Amp R Amplitude of ripple
2 Freq R Frequency of ripple
3 Offset R
a)
Phase shift direction and offset of
ripple
4 Speed R
b)
Direction of travel and speed of
ripple
5 Shape Shape of ripple
c)
Parameter group [2/2]
No. Parameter Adjustment
1 Aspect Aspect ratio of ripple
2 Angle Angle of ripple
No. Parameter Adjustment
