Sony ICP-X7000

262

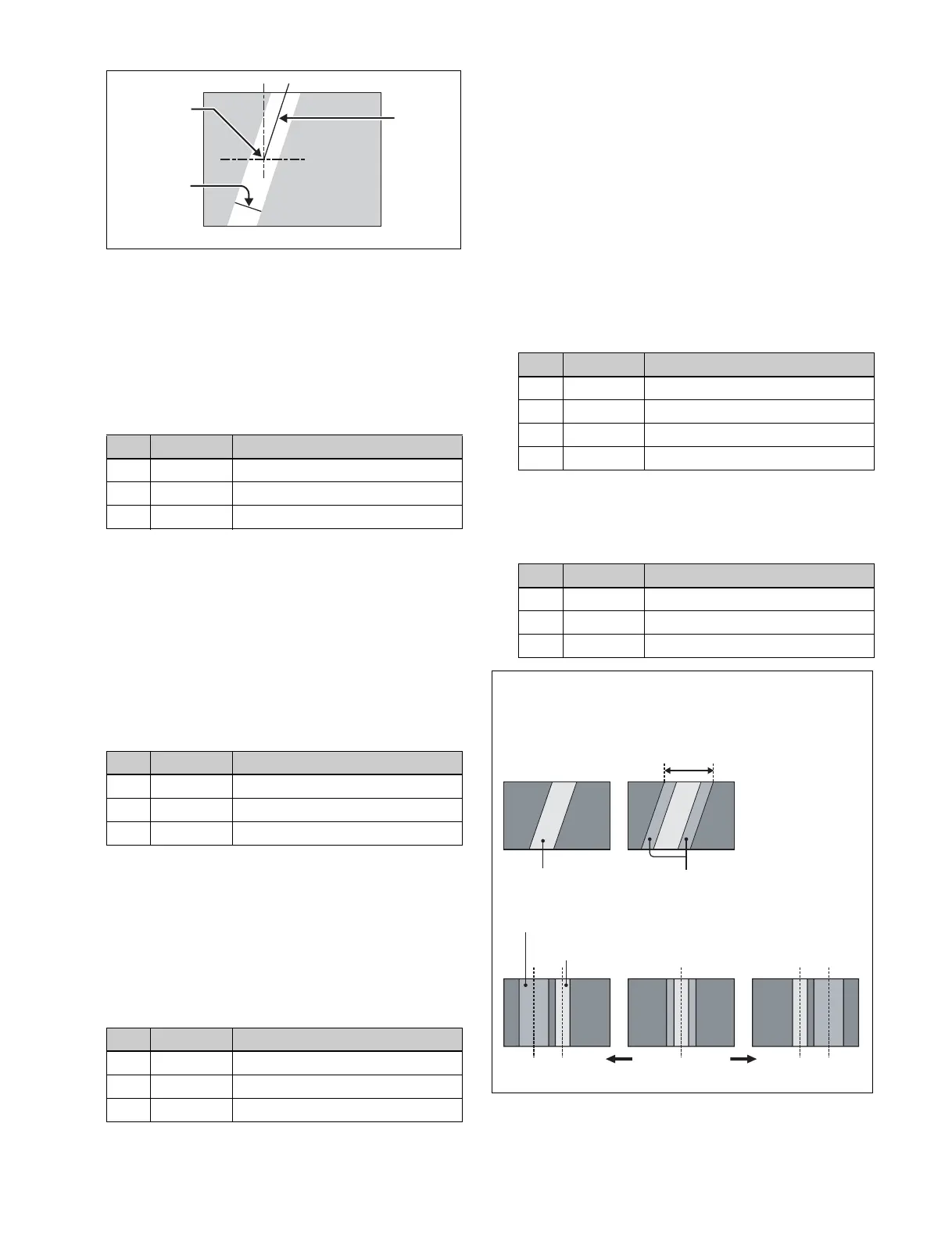

Setting the color of the light in the
highlight area
1 In the DME >Light/Trail >Lighting menu (4151),
press [Light Color].
2 Set the following parameters.
Setting the bar shape of the shade area
When [Preset] is selected in step 3 of “Applying the
Lighting effect” (page 261), set the bar shape of the shade
area.
1 In the DME >Light/Trail >Lighting menu (4151),
press [Shade Modify].
2 Set the following parameters.
Setting the color of the light in the shade
area
1 In the DME >Light/Trail >Lighting menu (4151),
press [Shade Color].
2 Set the following parameters.
Setting the bar mode of the highlight area
When [Bar] is selected in step 3 of “Applying the Lighting
effect” (page 261), set the bar mode of the highlight area.
1 In the <Bar Light Mode> of the DME >Light/Trail
>Lighting menu (4151), select the bar mode.
Normal: Emphasizes the bar highlight area.
Specular: Creates an effect like light striking a surface
with metallic reflections.
Mat: Creates an effect like light striking paper, cloth,
or another diffusively reflective surface.
2 Set the following parameters.
3 When [Normal] or [Mat] is selected in step 1, press
[Bar Diffuse Color] to set the color of the diffuse light
area and set the following parameters.
No. Parameter Adjustment
1 Luminance Luminance
2 Saturation Saturation
3Hue Hue
No. Parameter Adjustment
1 X X-value of bar center point
4 Width Width of bar
5 Soft Softness of boundary
No. Parameter Adjustment
1 Luminance Luminance
2 Saturation Saturation
3Hue Hue
Center point
of bar
Angle of
bar
Width of
bar
No. Parameter Adjustment
1 Intensity Intensity of diffuse light area
2 Offset Offset of center of diffuse light area
3 Width Width of diffuse light area
4 Soft Softness of diffuse light area
No. Parameter Adjustment
1 Luminance Luminance
2 Saturation Saturation
3Hue Hue
Bar Light
Diffuse Light
Width
Offset = 0
With no selection
made in the <Bar
Light Mode> group
With a selection
made in the <Bar
Light Mode> group
Diffuse Light
Bar Light
