5 Press [Set].
To clear the signal format setting
Press [Clear].
6 Press [Execute].
Setting the format converter conversion
method
You can set the format converter conversion method for
each FC channel.
The conversion method items and the target conversion
formats are given below.
1 In the Engineering Setup >Switcher >Input >Internal
FC menu (7332.5), press [FC Adjust].
The FC Adjust menu (7332.2) appears.
2 Display the target FC channels to set in the status area.
Press [FC 1-4], [FC 5-8], [FC 9-11], or [FC 13-16] to
switch the display in the status area.
3 In the status area, select an FC channel.
4 Set the conversion method.
To configure the enhancer
1 Press [Enhancer], turning it on.
2 Set the following parameters.
a) 0 (high frequency) to 2 (low frequency)
To set the up-converter aspect ratio
1 In the <Aspect> group, select one of the following.
Edge Crop: Add black bars on the left and right sides
of a 4:3 aspect ratio image to convert it to a 16:9
image.
Letter Box: Crop the top and bottom of a 4:3 aspect
ratio image to convert it to a 16:9 image.
Squeeze: Stretch a 4:3 image horizontally to covert it
to a 16:9 image.
Item Conversion format
Enhancer • 1080P (Level A) t 3840×2160P
(Level A, 2SI)
• 1080P (Level B) t 3840×2160P
(Level A, 2SI)
• 1080i t 3840×2160P (Level A, 2SI)
• 1080P (Level A) t 3840×2160P
(Level A, SQD)
• 1080P (Level B) t 3840×2160P
(Level A, SQD)
• 1080i t 3840×2160P (Level A,
SQD)
Up-converter
aspect ratio
•576i t 1080i
•480i t 1080i
•576i t 720P
•480i t 720P
Down-converter
aspect ratio
–
I/P converter
conversion mode
• 1080i t 3840×2160P (Level A, 2SI)
• 1080i t 3840×2160P (Level A,
SQD)
• 1080i t 1080P (Level A)
• 1080i t 720P
Up-converter
conversion mode
•576i t 1080i
•480i t 1080i
•576i t 720P
•480i t 720P
Parameter group [1/2]
No. Parameter Adjustment
2 Detail Gain Adjust the edge enhancement
sharpness
3 Limiter Adjust the maximum signal level to
be added to the original signal
4 Crisp Set the amplitude value for which
low-amplitude signals are not
enhanced
5Level
Depend
Set the luminance range for edge
enhancement
Parameter group [2/2]
No. Parameter Adjustment
2 Frequency Set the center frequency for edge
enhancement
a)

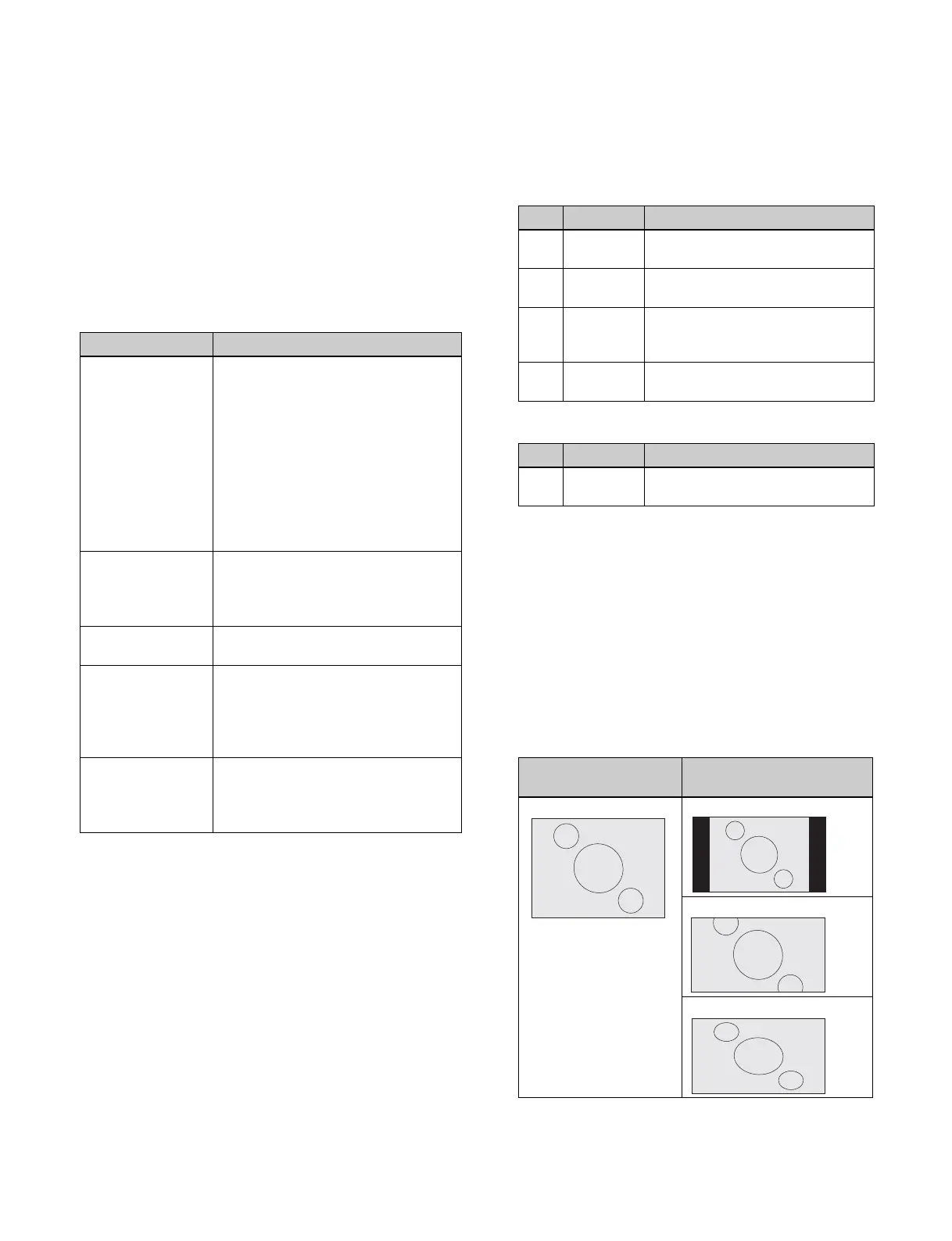

Original image (4:3) Format converted image
(16:9)
Edge Crop
Letter Box
Squeeze
