Sony KD-32NS100B - Page 53

- 53 -

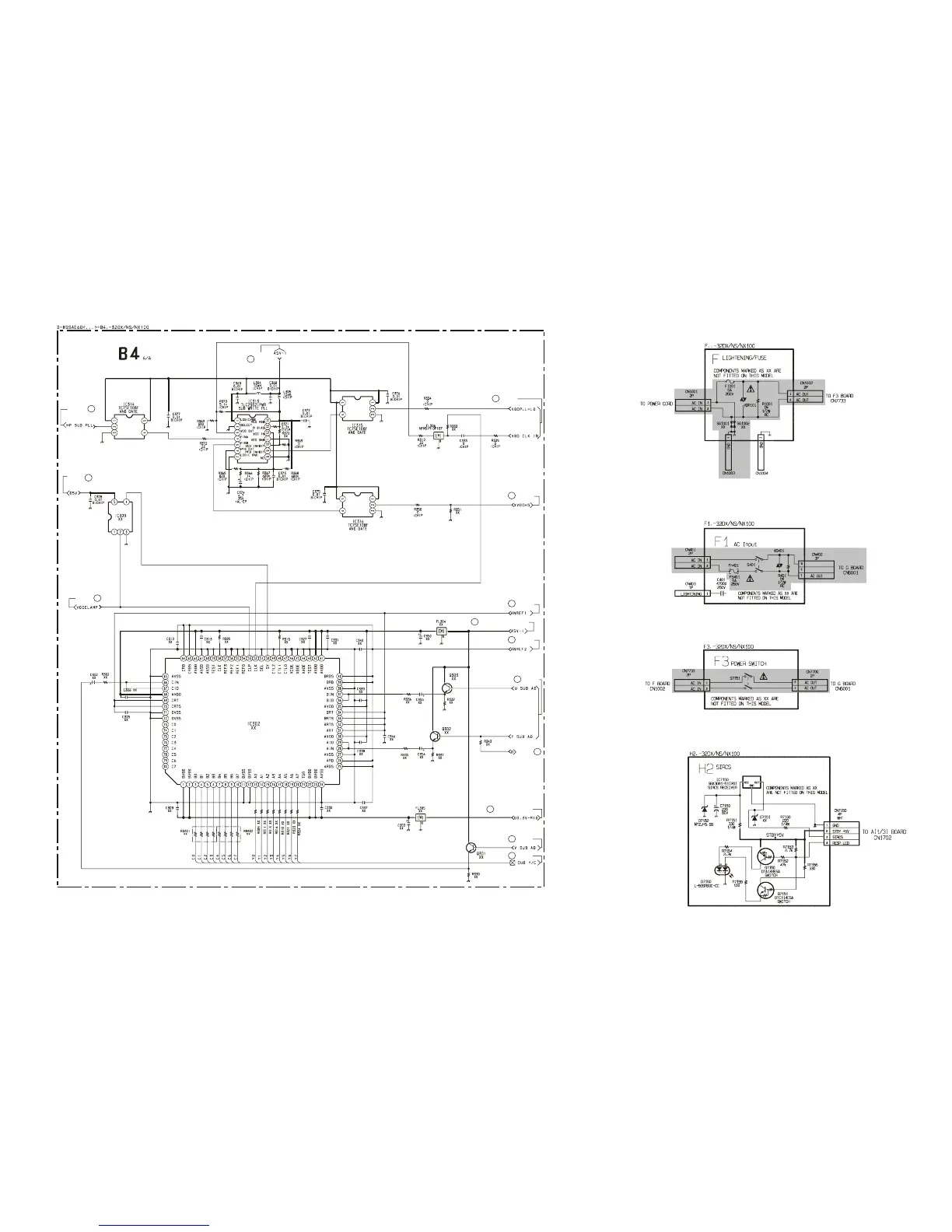

~ B4 Board Schematic Diagram [ 100 Hz Board ] page 6/6 ~
~ F1 Board Schematic Diagram [ AC Input ] ~
~ F3 Board Schematic Diagram [ Power Switch ] ~
~ H2 Board Schematic Diagram [ SIRCS ] ~
~ F Board Schematic Diagram [ Lightening/Fuse ] ~
