Sony KD-32NS100B - Chassis Kd-32 Ns100;32 Nx100

SECTION 6
EXPLODED VIEWS
NOTE :
Items with no part number and no description are not
stocked because they are seldom required for routine
service.
The construction parts of an assembled part are indicated
with a collation number in the remarks column.
Items marked “*” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.

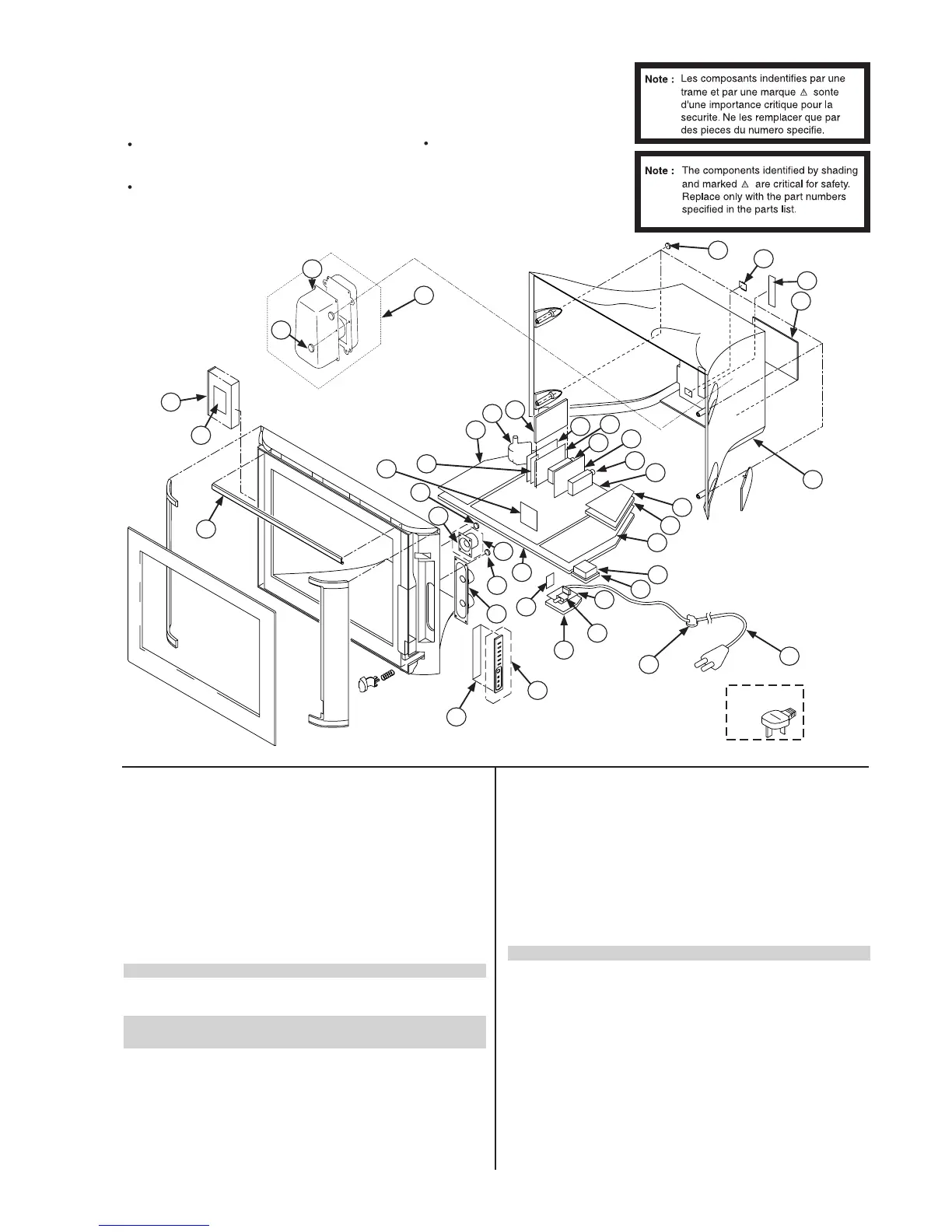

6-3. CHASSIS KD-32NS100/32NX100
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 70 -
28
14
13
2
35
15
4
39
3
23
24
31
1
11
16
17
25
26
27
30
34
8
33
21
9
40
38
37
36
12
5
10
6
7
29
19
22
20
41
UK Models
only
32
18
1 4-206-356-01 PLATE, ORNAMENTAL
2 *A-1646-247-A H1 BOARD, COMPLETE
3 X-4200-754-1 CONTROL ASSY
4 1-529-408-11 SPEAKER (4.2X24CM)
5 4-384-096-01 SCREW (4X16), TAPPING, +P
6 A-1678-178-A TWEETER SUB ASSY 7
7 1-529-155-11 SPEAKER (4.2X2.7CM)
8 4-039-358-01 SCREW (4X16), (+) BV TAPPING
9 *4-206-106-11 BRACKET, MAIN
10 *A-1646-248-A H2 BOARD, COMPLETE
11 *4-206-382-01 BRACKET, F1
12 £ 1-571-433-21 SWITCH, PUSH (AC POWER)
13 *A-1624-108-A F1 BOARD, COMPLETE
14 *4-202-531-01 AC CORD LOCK (SC)
15 £ 1-792-389-11 CORD, POWER (KD-32NS100)
1-776-204-12 CORD, POWER (FILTER) (KD-32NX100)
16 *4-206-384-01 BRACKET, PFC
17 1-424-855-11 COIL, CHOKE 29MMH
18 4-206-493-01 PCMCIA COVER
19 *A-1636-054-A G BOARD, COMPLETE
20 *4-206-383-01 BRACKET, G1
21 *A-1636-052-A G1 BOARD, COMPLETE
22 *A-1631-170-A A BOARD, COMPLETE (KD-32NS100)
*A-1631-164-A A BOARD, COMPLETE (KD-32NX100)
23 8-598-535-11 FRONT END BTF-EF411 (KD-32NS100)
8-598-529-01 FRONT END BTF-EU611 (KD-32NX100)
24 *A-1651-144-A J1 BOARD, COMPLETE
25 8-598-562-00 MODULE, INTERFACE DQS-CE102F (KD-32NS100)
8-598-585-00 FRONT END BTD-DU604 (KD-32NX100)
26 *A-1652-082-A N BOARD, COMPLETE (KD-32NS100)
*A-1652-084-A N BOARD, COMPLETE (KD-32NX100)
27 *A-1620-152-A B4 BOARD, COMPLETE
28 *X-4200-759-1 SHIELD N ASSY
29 £ 1-453-383-11 TRANSFORMER ASSY, FLYBACK (NX-4522//Z214)
30 *A-1640-444-A D BOARD, COMPLETE
31 *A-1646-249-A H3 BOARD, COMPLETE
32 *4-206-360-01 BRACKET, H3
33 *A-1652-081-A N1 BOARD, COMPLETE
34 *A-1634-066-A M3 BOARD, COMPLETE
35 4-206-371-01 REAR COVER
36 *4-206-372-01 DOOR, REAR
37 4-206-388-01 SERVICE PLATE
38 4-039-358-01 SCREW (4X16), (+) BV TAPPING
39 A-1678-215-A WOOFER ASSY 39,40
40 *4-204-775-21 BAFFLE WOOFER
41 4-039-358-01 SCREW (4X16), (+) BV TAPPING
