SECTION 6
EXPLODED VIEWS
NOTE :
Items with no part number and no description are not
stocked because they are seldom required for routine
service.
The construction parts of an assembled part are indicated
with a collation number in the remarks column.
Items marked “*” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.

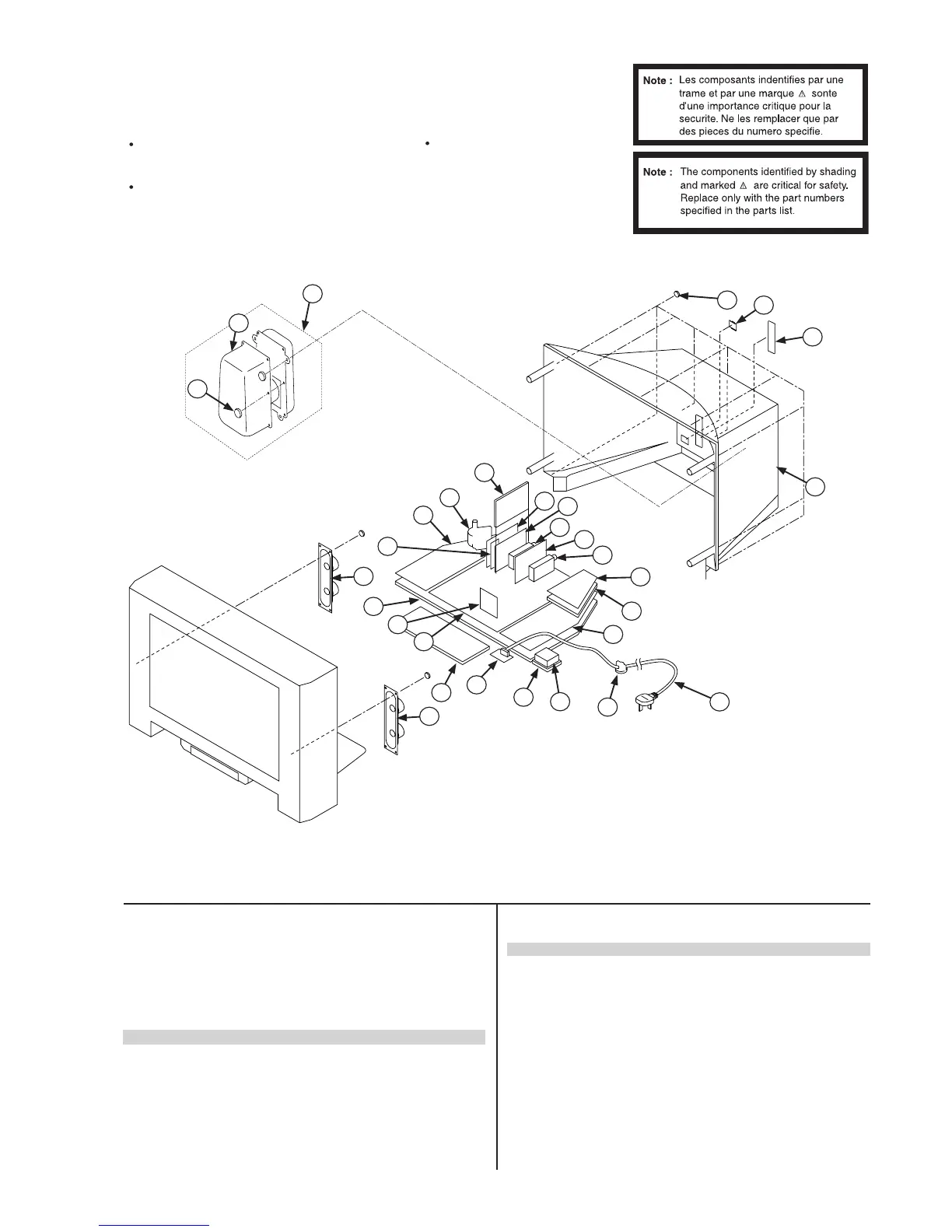

6-1. CHASSIS KD-32DX100
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 68 -
1 1-529-408-11 SPEAKER (4.2X24CM)
2 *4-206-494-01 BRACKET, H
3 *A-1624-110-A F BOARD, COMPLETE
4 *4-206-565-01 BRACKET, PFC
5 1-424-855-11 COIL, CHOKE 29MMH
6 4-206-493-11 PMCIA COVER
7 4-202-531-01 AC CORD LOCK (SC)
8 £ 1-776-204-12 CORD, POWER (FILTER)
9 *A-1636-054-A G BOARD, COMPLETE
10 *4-206-383-01 BRACKET, G1
11 *A-1636-052-A G1 BOARD, COMPLETE
12 8-598-529-01 FRONT END BTF-EU611
13 *A-1651-144-A J1 BOARD, COMPLETE
14 8-598-585-00 FRONT END BTD-DU604
15 *A-1652-080-A N BOARD, COMPLETE
16 *A-1620-152-A B4 BOARD, COMPLETE
17 *X-4200-759-1 SHIELD N ASSY
18 £ 1-453-383-11 TRANSFORMER ASSY, FLYBACK (NX-4522//Z214)
19 *A-1640-444-A D BOARD, COMPLETE
20 *A-1652-081-A N1 BOARD, COMPLETE
21 *4-206-106-41 BRACKET, (MAIN)
22 *A-1634-066-A M3 BOARD, COMPLETE
23 *A-1631-164-A A BOARD, COMPLETE
24 4-205-272-11 REAR COVER
25 4-206-388-11 SERVICE PLATE
26 4-039-358-01 SCREW (4X16), (+) BV TAPPING
27 A-1678-215-A WOOFER ASSY 28,29
28 4-204-775-21 BAFFLE WOOFER
29 4-039-358-01 SCREW (4X16), (+) BV TAPPING
17
7
4
24
8
27
13
14
1
5
6
15
16
19
21
20
11
28
26
3
18
9
12
10
29
1
22
23
25
2
