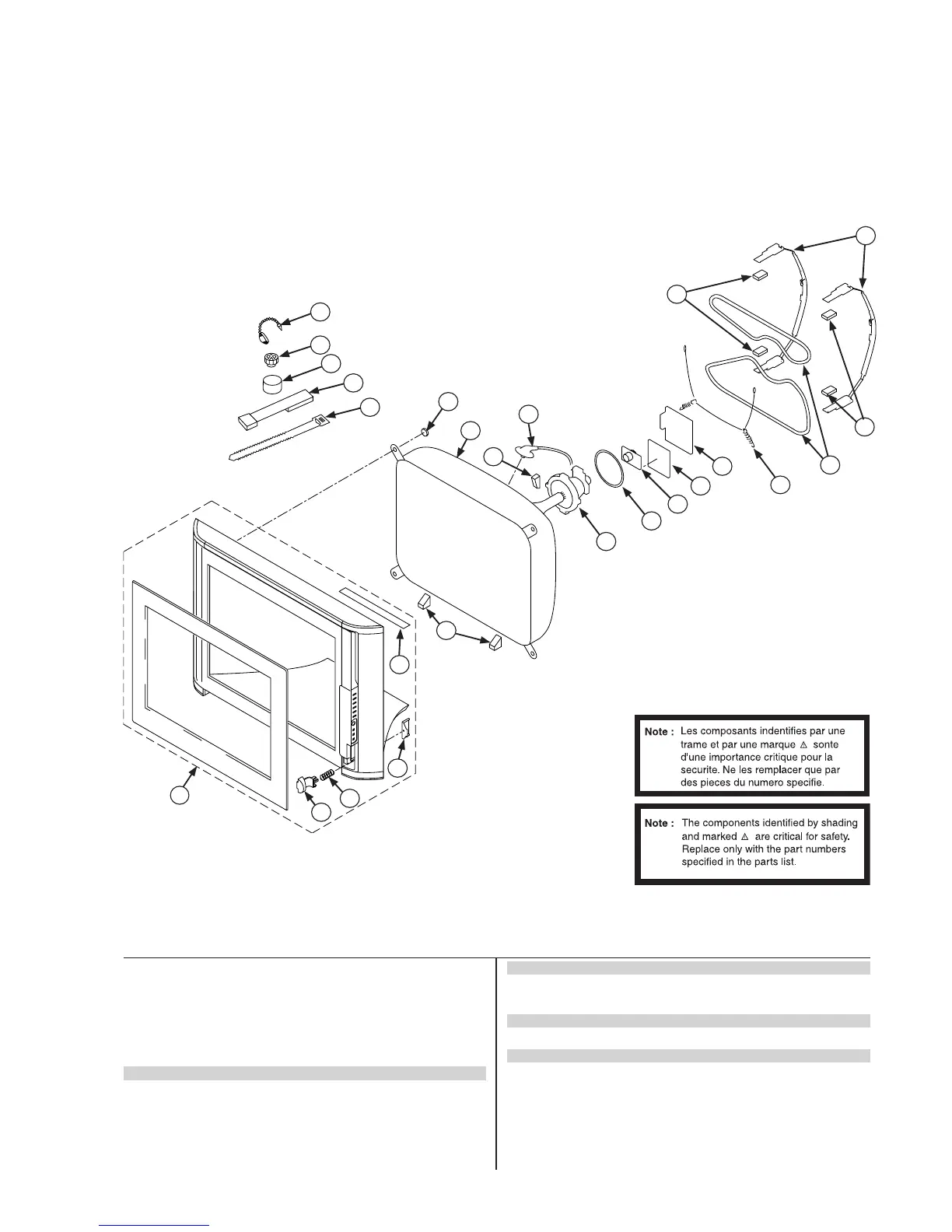

6-4. PICTURE TUBE KD-32NS100/32NX100
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 71 -
51
52
53
54
55
71
56
73
72
69
70
57
58
59
60
63
64
65
67
66
64
62
61
74
68
63 £ 1-424-888-11 COIL, DEGAUSSING
64 *4-203-390-41 CUSHION, DGC
65 *4-059-569-01 HOLDER, DGC
66 £ 1-251-317-63 CAP ASSY, HIGH-VOLTAGE
67 4-203-658-01 SPACER, DY
68 £ 8-735-079-05 PICTURE TUBE (W76LLZ060X)
69 4-204-225-01 PT-SCREW
70 4-308-870-00 CLIP, LEAD WIRE
71 1-452-094-00 MAGNET, ROTATABLE DISK; 15MM Ø
72 1-452-032-00 MAGNET, DISK; 10MM Ø
73 X-4387-214-1 PERMALLOY ASSY, CORRECTION
74 3-701-007-00 BAND, BINDING
51 X-4200-753-1 BEZNET ASSY 52-55
52 4-206-354-01 BUTTON, POWER
53 4-202-964-11 SPRING
54 4-206-361-01 LIGHT, GUIDE
55 4-203-128-31 SHEET, BLOTTING
56 *4-203-098-01 SUPPORTER, CRT
57 £ 1-451-480-11 DEFLECTION YOKE (Y32RVC2)
58 1-419-363-11 COIL, NA ROTATION
59 8-453-011-11 NECK ASSY (NA299-M)
60 *A-1644-126-A VM BOARD, COMPLETE
61 *A-1638-162-A C BOARD, COMPLETE
62 4-200-433-01 SPRING, EXTENSION
