SECTION 6
EXPLODED VIEWS
NOTE :
Items with no part number and no description are not
stocked because they are seldom required for routine
service.
The construction parts of an assembled part are indicated
with a collation number in the remarks column.
Items marked “*” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.

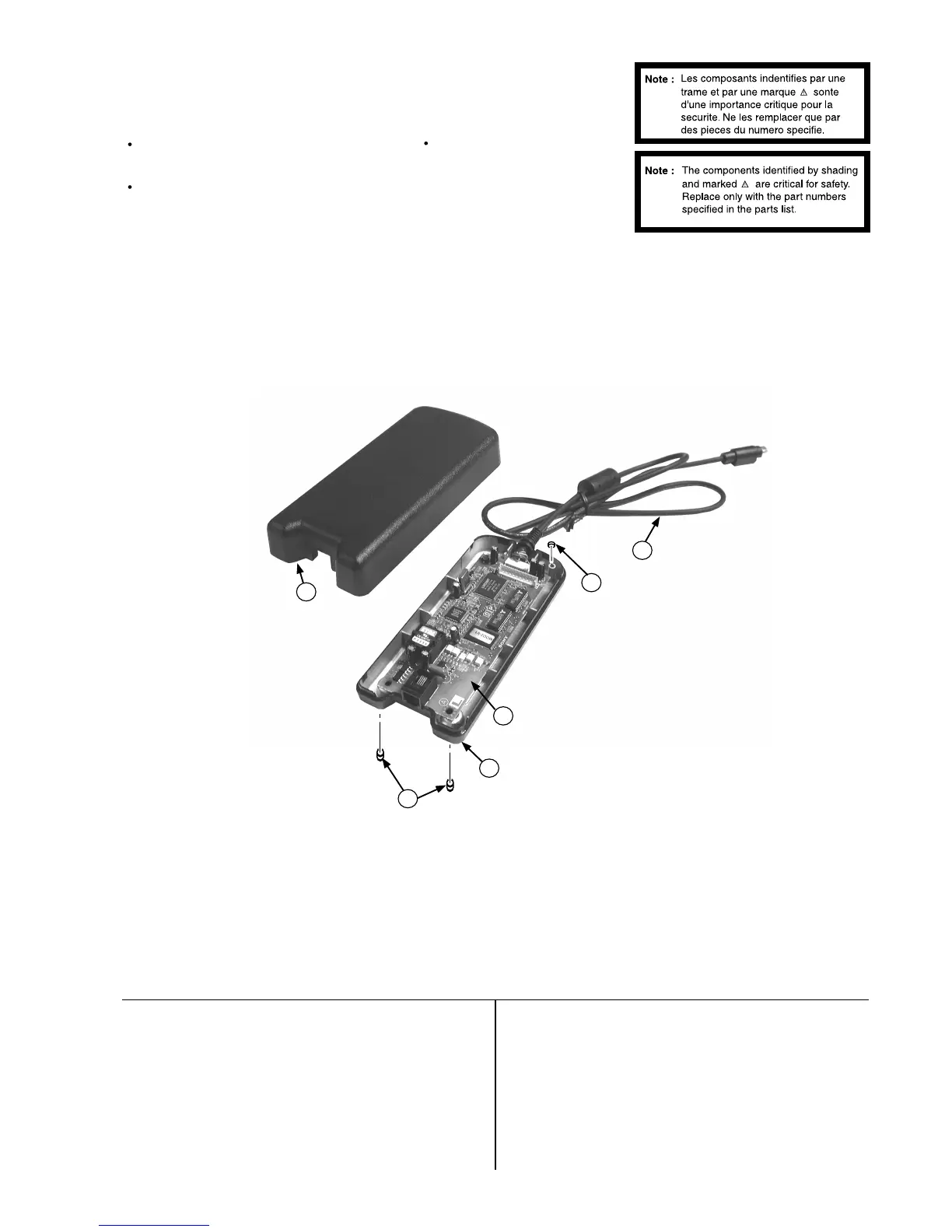

6-5. MODEM KD-32NS100B
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 72 -
1 1-823-154-11 CABLE
2 4-039-356-01 SCREW (3X12), (+) BV TAPPING
3 4-039-357-01 SCREW (3X8), (+) BV TAPPING
2
4
3
1
5
6
4 4-205-220-11 MODEM, BASE
5 4-205-221-11 MODEM, COVER
6 *A-1646-258-A MOUNTED PC BOARD, L
