— 10 —
KP-43T85T / 53SV85T / 61SV85T
Eight Screws (KP-43T85T)
Ten Screws (KP-53SV85T/61SV85T)
Rear board
2
1

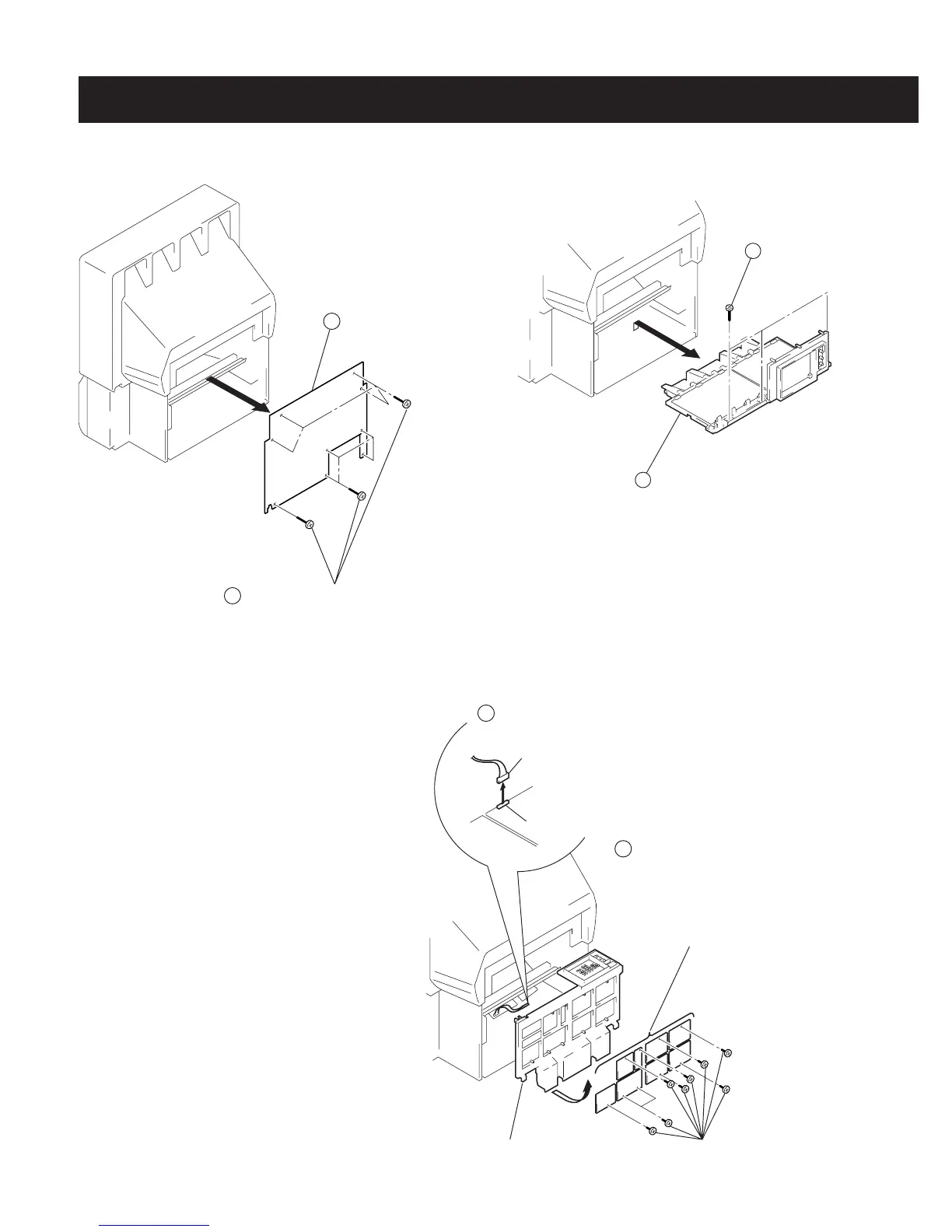

1-1. REAR BOARD REMOVAL
1-2. CHASSIS ASSEMBLY REMOVAL
SECTION 1: DISASSEMBLY
From CG board CN1304.
(The extension cable is not
supplied because of the
countermeasure for radiation.)
G board
CN203
A board
Covers
Remove covers from chassis assembly
with pliers when checking printed circuit boards.
After checking, turn the covers over
and re-secure them with the screws.
Screws
(+BVTP3x12)
Chassis assembly
Disconnect CN203
on A board.
1
2
Three screws
(Screw(4x20),tapping)
Chassis assy
2
1
1-3. SERVICE POSITION
To Next Page
