— 61 —
KP- 43T85T / 53SV85T / 61SV85T
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques
pour la securite. Ne les remplacer que par une piece portant le numero specifi e.

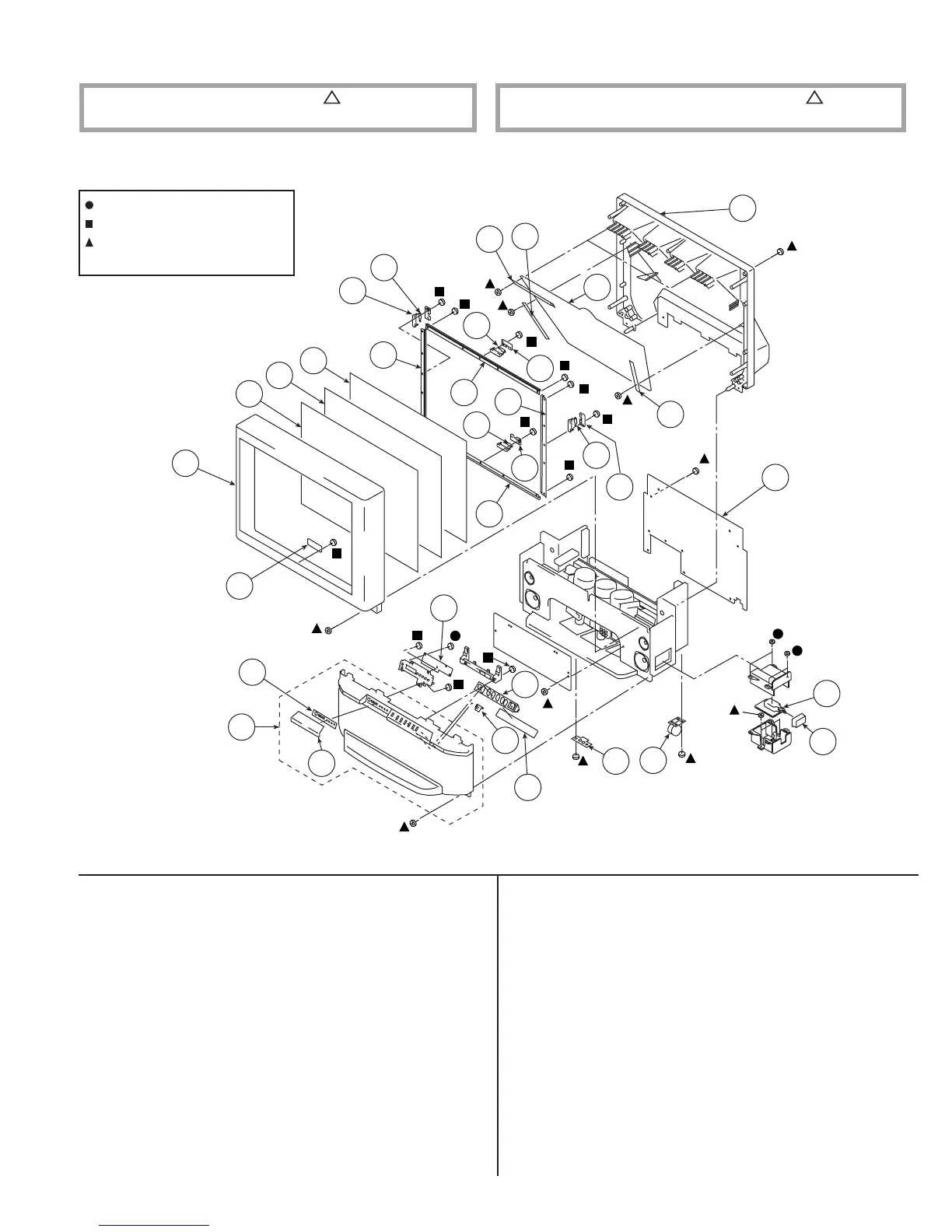

6-4. COVER (KP-53SV85T)
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION [ASS’Y INCLUDES]
106
107
108
106
101
102
103
104
105
106
105
123
110
109
112
111
106
123
122
113
114
116
117
118
115
126
125
124
124
124
124
120
119
121
101 X-4039-199-1 BEZNET ASSY
102 4-081-065-11 SCREEN (53), CONTRAST
103 4-070-525-11 PLATE (L), DIFFUSION
104 4-070-602-11 PLATE (F), DIFFUSION
* 105 4-070-328-12 HOLDER (L), SCREEN YC
* 106 A-1390-933-A S BOARD, MOUNTED
* 107 4-081-504-01 HOLDER (SL), MIRROR
* 108 4-070-345-11 HOLDER (TOP), MIRROR
* 109 4-081-505-01 HOLDER (SR), MIRROR
110 4-070-344-01 MIRROR, REFLECTION
* 111 4-081-503-01 COVER, MIRROR
* 112 4-082-770-01 BOARD -53 REAR
113 4-040-755-01 CASTER (DIA. 30)
114 4-075-020-01 FOOT, PLASTIC
* 115 A-1372-762-A HA BOARD, MOUNTED
116 4-069-682-01 GUIDE, LED
117 4-069-681-21 BUTTON, MULTI
* 118 A-1372-620-A HB BOARD, MOUNTED
119 X-4039-197-1 GRILLE ASSY, SPEAKER [120]
120 4-069-671-41 DOOR (V), CONTROL
121 4-072-529-01 LABEL (2), SPEAKER GRILLE
* 122 A-1372-618-A HC BOARD, MOUNTED
* 123 4-070-330-02 HOLDER (S), SCREEN YC
* 124 4-069-680-01 BRACKET (B), SENSOR
125 4-048-200-02 BUTTON, MAIN POWER
* 126 A-1241-389-A FB BOARD, MOUNTED
7-685-648-79 SCREW +BVTP 3X12
7-685-661-14 SCREW +BVTP 4X12
4-081-063-01 SCREW, DOME WASHER
HEX TAPPING (4X20)
