KP-43T85T / 53SV85T / 61SV85T
HC board
L screen
holder
Claws
S board
Sensor
bracket (B)
Two screws
(+BVTP 4x12)
Two screws
(+BVTP 4x12)
Two screws
(+BVTP 4x12)
Sensor
bracket (A)
7
6
4
1
2
3
5

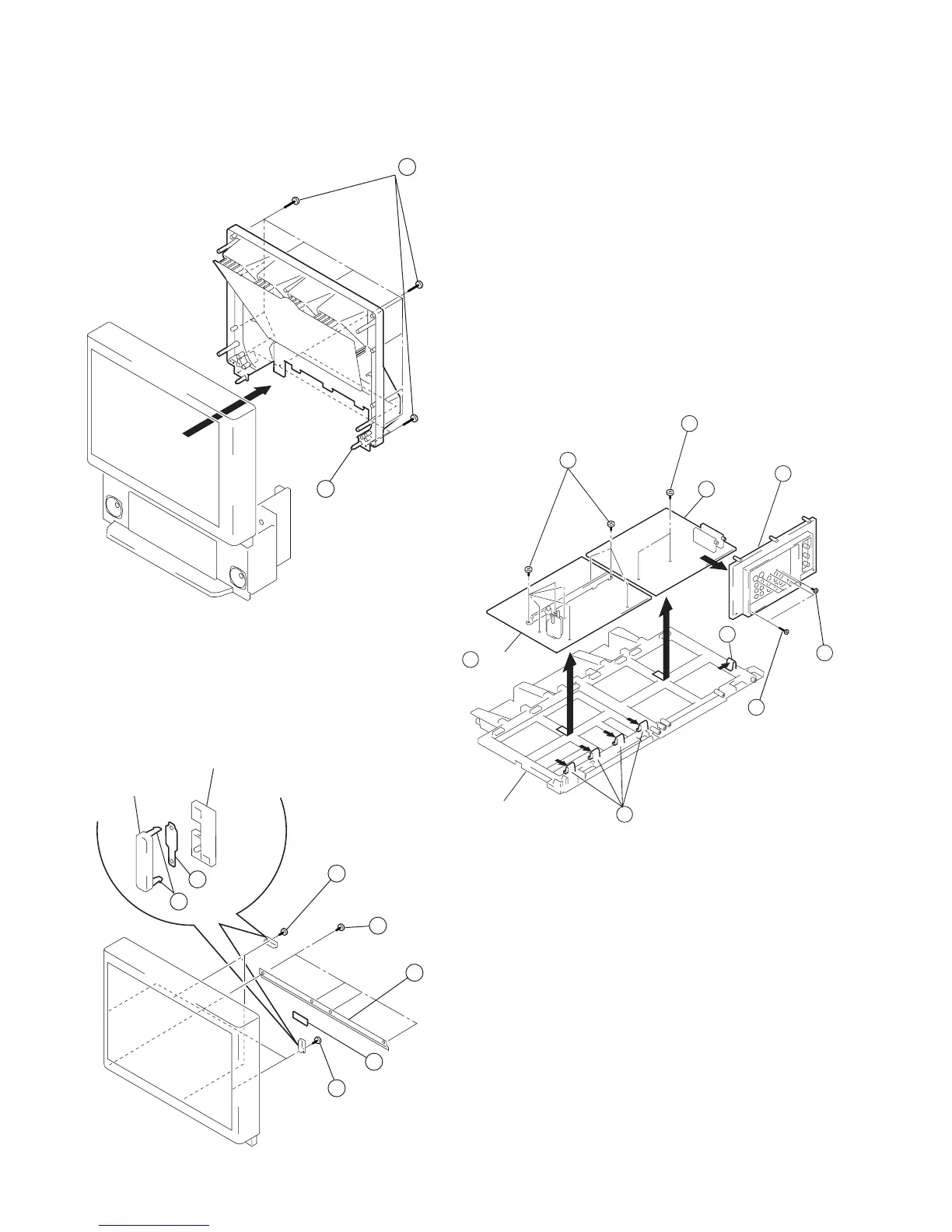

1-8. HC BOARD AND S BOARD REMOVAL
1-9. A BOARD AND G BOARD REMOVAL
Two screws
(+BVTP 3x12)
Eight screws
(+BVTP 3x12)
G board
A board
Terminal board
Claw
Claws
Main bracket
Two screws
(Screws (4x20), tapping)
Seven screws
(+BVTP 3x12)
6
4
9
7
3
2
1
5
8
Seventeen screws (KP-43T85T)
Twenty-one screws (KP-53SV85T)
Twenty-five screws (KP-61SV85T)
(Screw (4x20), tapping)
Mirror cover
1
2
1-7. MIRROR COVER REMOVAL
