— 65 —
KP- 43T85T / 53SV85T / 61SV85T
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques
pour la securite. Ne les remplacer que par une piece portant le numero specifi e.
236
242
228
228
230
238
239
233
231
232
234
235
237
243
240
241
229
229
244

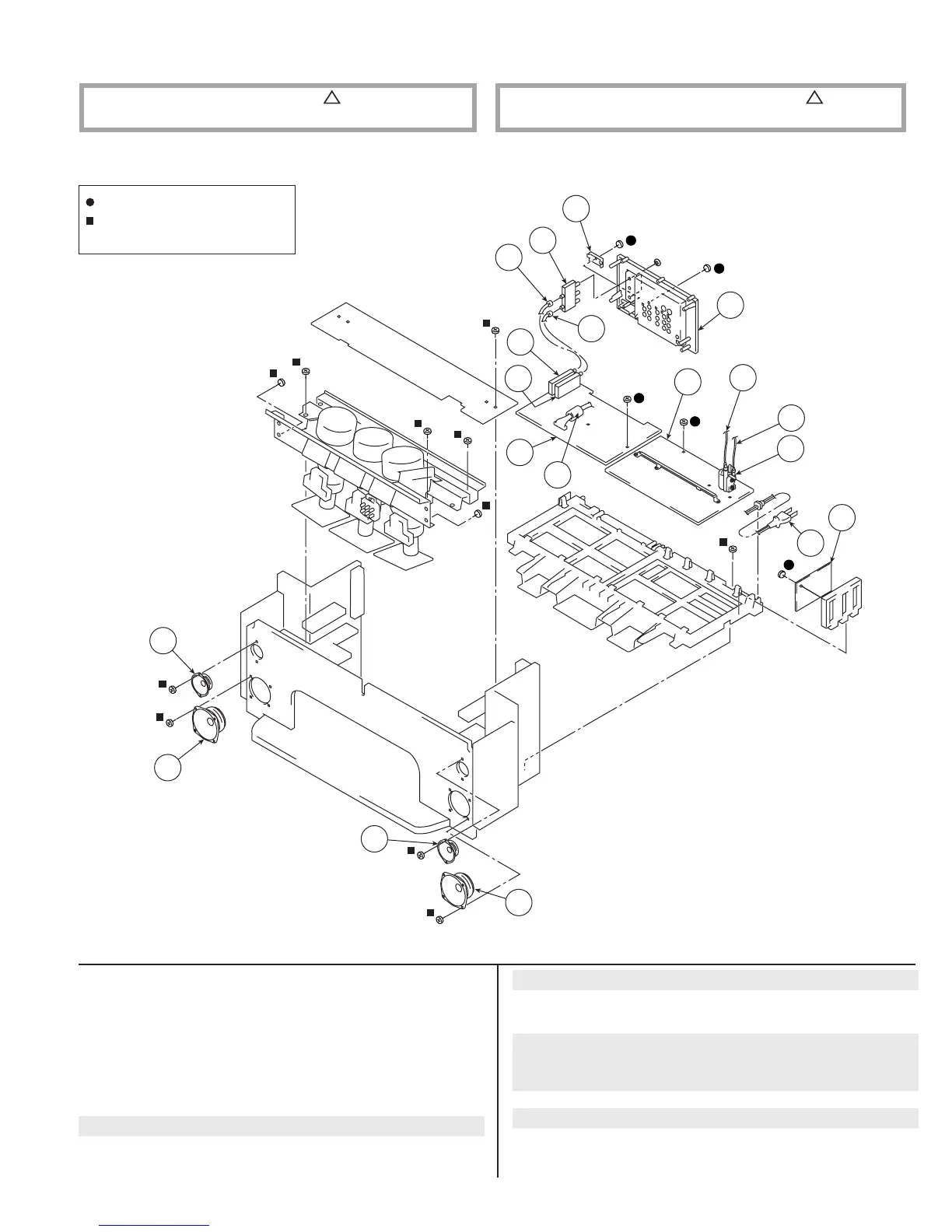

6-8. CHASSIS (KP-61SV85T)
228 1-529-402-11 SPEAKER (16CM)
229 1-529-403-21 SPEAKER (6.6CM)
* 230 A-1298-990-A A BOARD, COMPLETE
231 8-598-430-50 TUNER, FSS BTF-FA401
232 8-598-431-20 TUNER, FSS BTF-WA411
* 233 1-557-056-31 CABLE, P-P
234 1-556-945-21 CABLE, P-P
! 235 8-598-414-20 CHANGER, ANTENNA AS-2F
236 4-069-675-01 CAP, TERMINAL BOARD
! 237 4-069-674-12 TERMINAL BOARD
* 238 A-1316-489-A G BOARD, COMPLETE
The high voltage leads associated with the FBT on this board are not
included and must be ordered separately (see 139-140).
! 239 1-453-238-31 FBT ASSY, NX-4007//X4P4
! 240 1-900-249-96 HARNESS ASSY, FOCUS PACK -2
! 241 1-779-095-23 LEAD ASSY, HIGH-VOLTAGE
! 242 1-790-001-11 CORD, AC POWER (WITH CONNECTOR)
243 1-500-021-11 CLAMP, SLEEVE FERRITE
* 244 A-1241-390-A FA BOARD, MOUNTED
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION
7-685-648-79 SCREW +BVTP 3X12
4-081-063-01 SCREW, DOME WASHER
HEX TAPPING (4X20)
